Power Source Circuit [10/2015 - ]: Procedure

1. Disconnect the N11 forward recognition camera connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

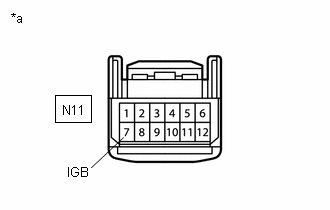

   *a	Front view of wire harness connector (to Forward Recognition Camera)

2. Turn the engine switch on (IG).
3. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   N11-7 (IGB) - Body ground	Engine switch on (IG)	11 to 14 V

4. Turn the engine switch off.
5. Reconnect the N11 forward recognition camera connector.

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  2

1. Disconnect the N11 forward recognition camera connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

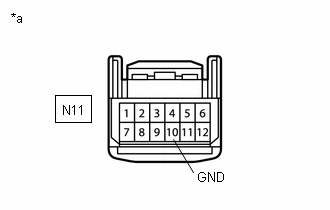

   *a	Front view of wire harness connector (to Forward Recognition Camera)

2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   N11-10 (GND) - Body ground	Always	Below 1 Ω

3. Reconnect the N11 forward recognition camera connector.

Result:

OK

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE. Refer to  PROBLEM SYMPTOMS TABLE [10/2015 - ]

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
