Engine Room Relay Block Assembly And Engine Room Junction Block Assembly Inner Circuit

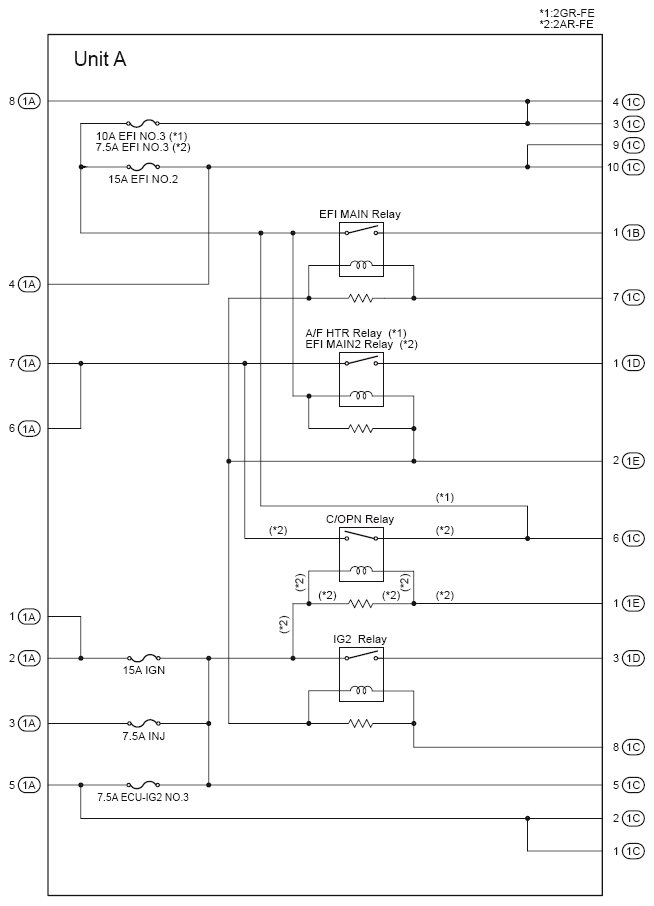

Fig 1: Engine Room R/B Assembly And Engine Room J/B Assembly Relay & Inner Circuit Diagram (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE ROOM R/B AND J/B INNER CIRCUIT RELAY IDENTIFICATION

RELAY DESCRIPTION
EFI Main Relay
A/F HTR Relay(2GR-FE)
EFI Main2 Relay(2AR-FE)
C/OPN Relay
IG2 Relay

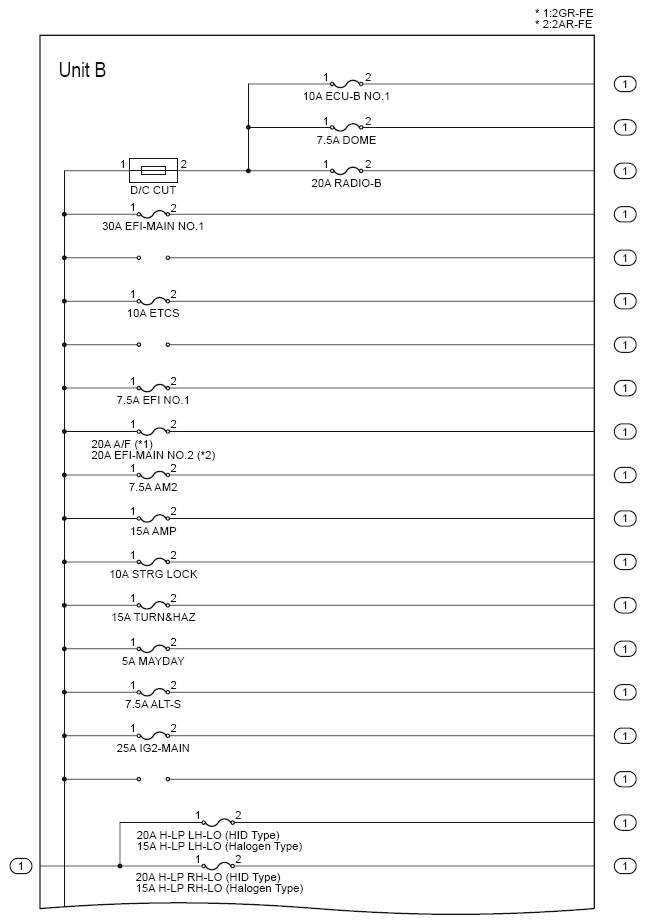

Fig 2: Engine Room R/B Assembly And Engine Room J/B Assembly Circuit Diagram (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

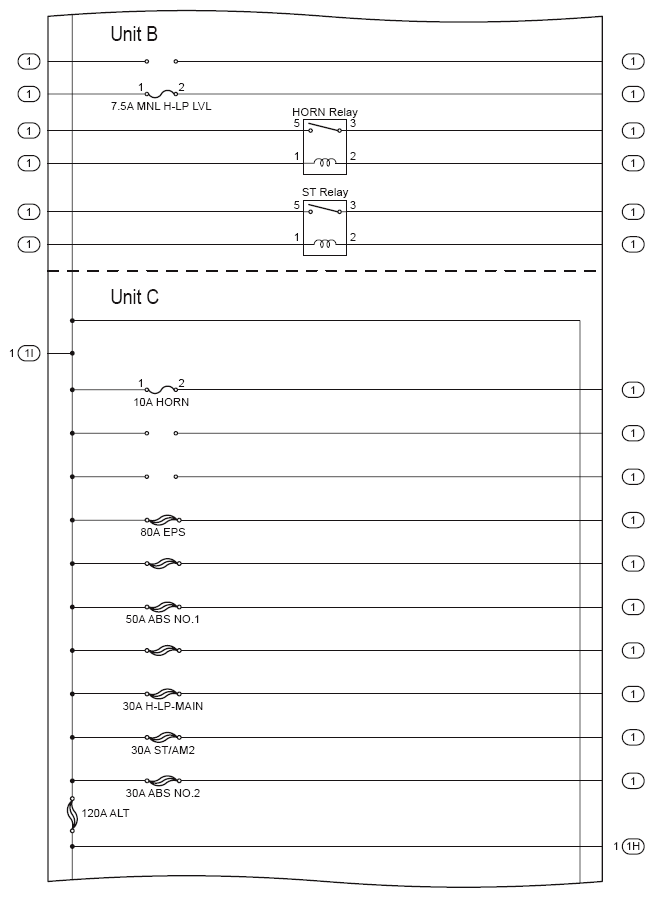

Fig 3: Engine Room R/B Assembly And Engine Room J/B Assembly Relay & Inner Circuit Diagram (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE ROOM R/B AND J/B INNER CIRCUIT RELAY IDENTIFICATION

RELAY DESCRIPTION
Horn Relay
ST Relay

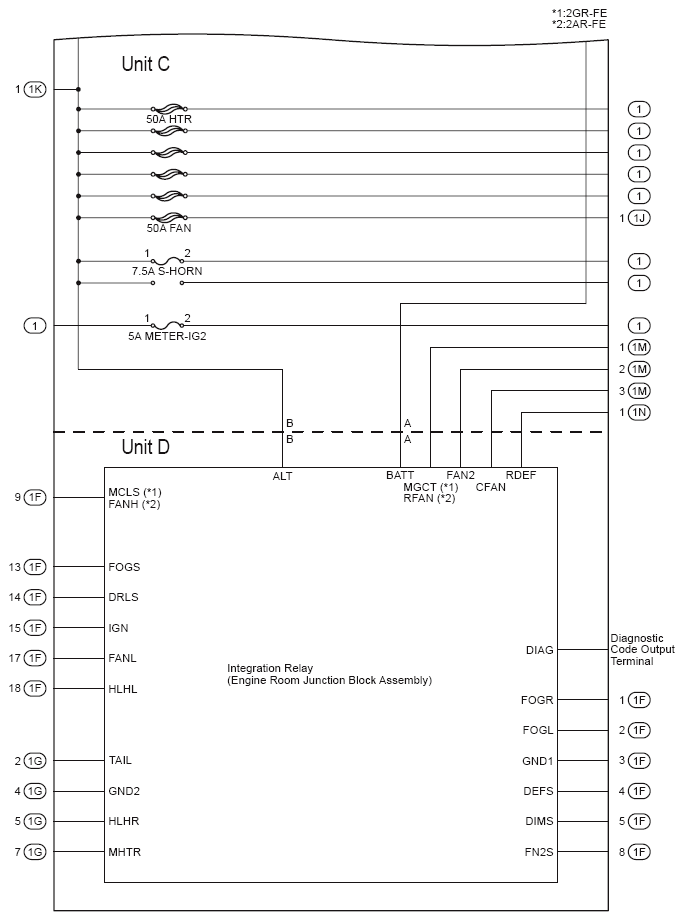

Fig 4: Engine Room R/B Assembly And Engine Room J/B Assembly Relay & Inner Circuit Diagram (4 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE ROOM R/B AND J/B INNER CIRCUIT RELAY IDENTIFICATION

RELAY DESCRIPTION
Integration Relay (Engine Room Junction Block Assembly)
