System Diagram [08/2016 - ]

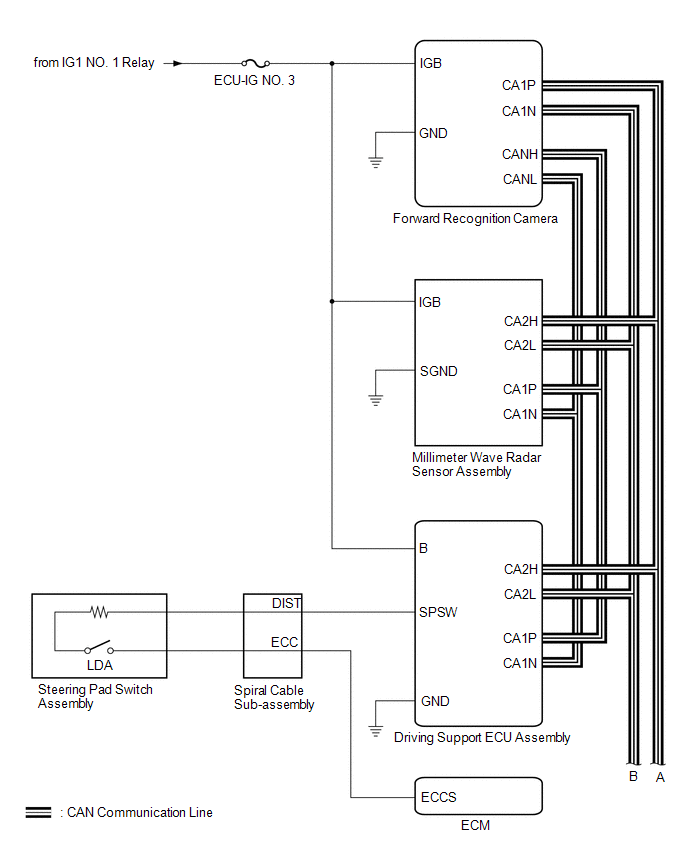

Fig 1: Lane Departure Alert System (W/ Steering Control) Circuit Diagram (1 Of 3)
GTY686387Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

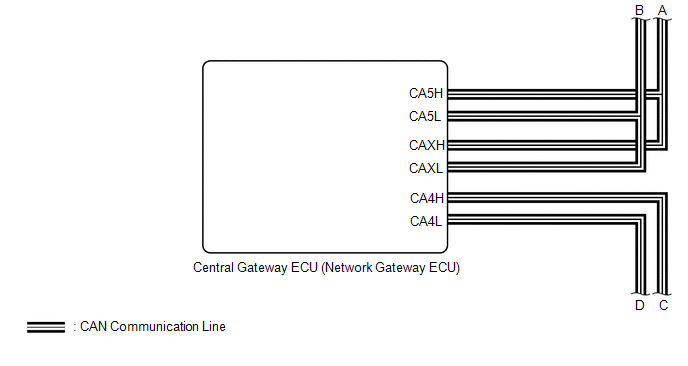

Fig 2: Lane Departure Alert System (W/ Steering Control) Circuit Diagram (2 Of 3)
GTY706076Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

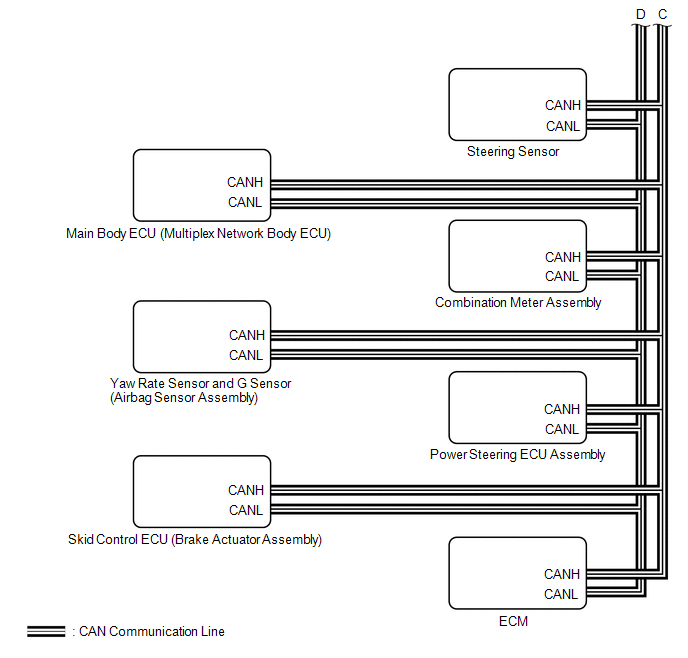

Fig 3: Lane Departure Alert System (W/ Steering Control) Circuit Diagram (3 Of 3)
GTY689241Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
