Certification ECU Communication Stop Mode [08/2013 - ]: Procedure

1. Disconnect the cable from the negative (-) battery terminal.
2. Disconnect the E59 certification ECU (smart key ECU assembly) connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

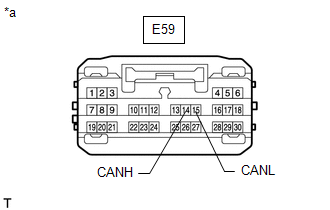

   *a	Front view of wire harness connector (to Certification ECU (Smart Key ECU Assembly))

3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   E59-14 (CANH) - E59-15 (CANL)	Cable disconnected from negative (-) battery terminal	54 to 69 Ω

Result:

NG

REPAIR OR REPLACE CAN BUS BRANCH WIRE OR CONNECTOR (CERTIFICATION ECU (SMART KEY ECU ASSEMBLY))

Result:

OK

See step  2

1. Disconnect the E57 certification ECU (smart key ECU assembly) connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

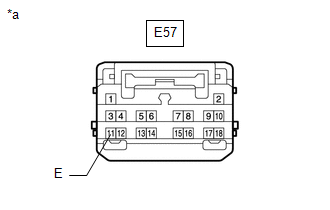

   *a	Front view of wire harness connector (to Certification ECU (Smart Key ECU Assembly))

2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   E57-11 (E) - Body ground	Cable disconnected from negative (-) battery terminal	Below 1 Ω

3. Reconnect the cable to the negative (-) battery terminal.
4. Measure the voltage according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

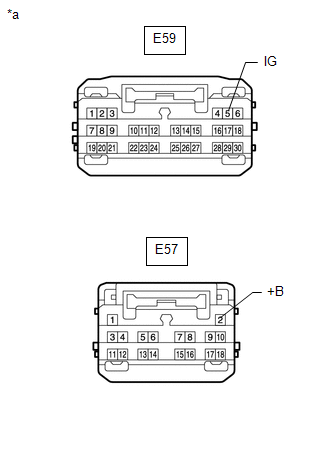

   *a	Front view of wire harness connector (to Certification ECU (Smart Key ECU Assembly))

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   E57-2 (+B) - Body ground	Always	11 to 14 V
   E59-5 (IG) - Body ground	Ignition switch ON	11 to 14 V

Result:

OK

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY). Refer to  REMOVAL [08/2013 - ]

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT)
