ECM Communication Stop Mode [08/2013 - 08/2016]: Procedure

1. Disconnect the cable from the negative (-) battery terminal.
2. Disconnect the A40 ECM connector.
3. Measure the resistance according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

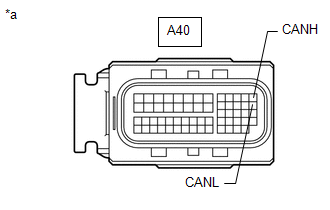

   *a	Front view of wire harness connector (to ECM)

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   A40-13 (CANH) - A40-26 (CANL)	Cable disconnected from negative (-) battery terminal	108 to 132 Ω

Result:

NG

REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (ECM MAIN LINE)

Result:

OK

See step  2

1. Check the ECM power source circuit.
   • for 2ZR-FE

     Refer to ECM Power Source Circuit [08/2013 - ]

   • for 2ZR-FAE

     Refer to ECM Power Source Circuit [08/2013 - ]

   Result

   Result	Proceed to
   OK (for 2ZR-FE)	A
   OK (for 2ZR-FAE)	B
   NG	C

Result:

A

REPLACE ECM. Refer to  REMOVAL [08/2013 - 08/2016]

Result:

B

REPLACE ECM. Refer to  REMOVAL [08/2013 - 08/2016]

Result:

C

REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT)
