System Diagram [08/2016 - ]

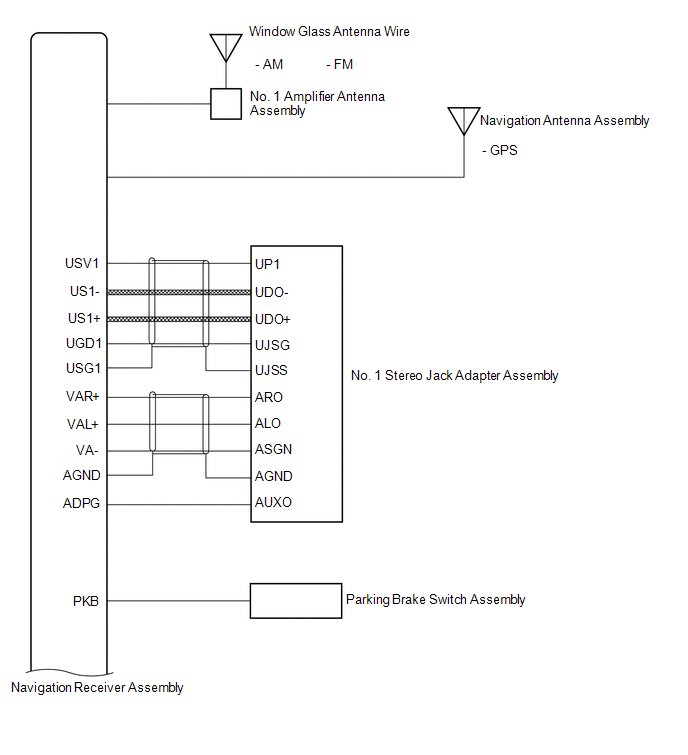

Fig 1: Navigation System Circuit Diagram (1 Of 4)
GTY731000Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

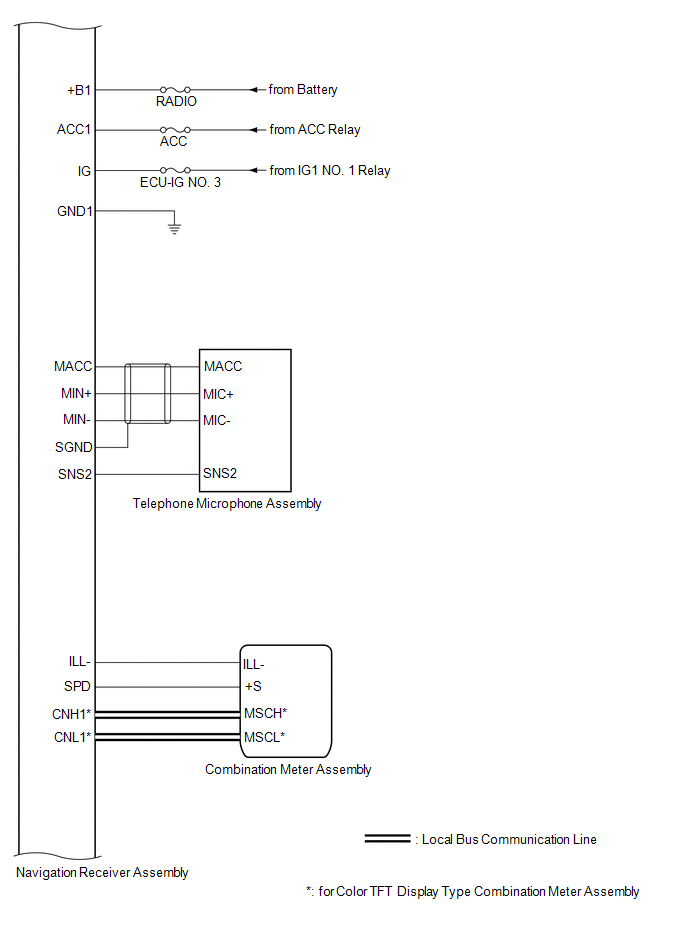

Fig 2: Navigation System Circuit Diagram (2 Of 4)
GTY692851Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Navigation System Circuit Diagram (3 Of 4)
GTY715452Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

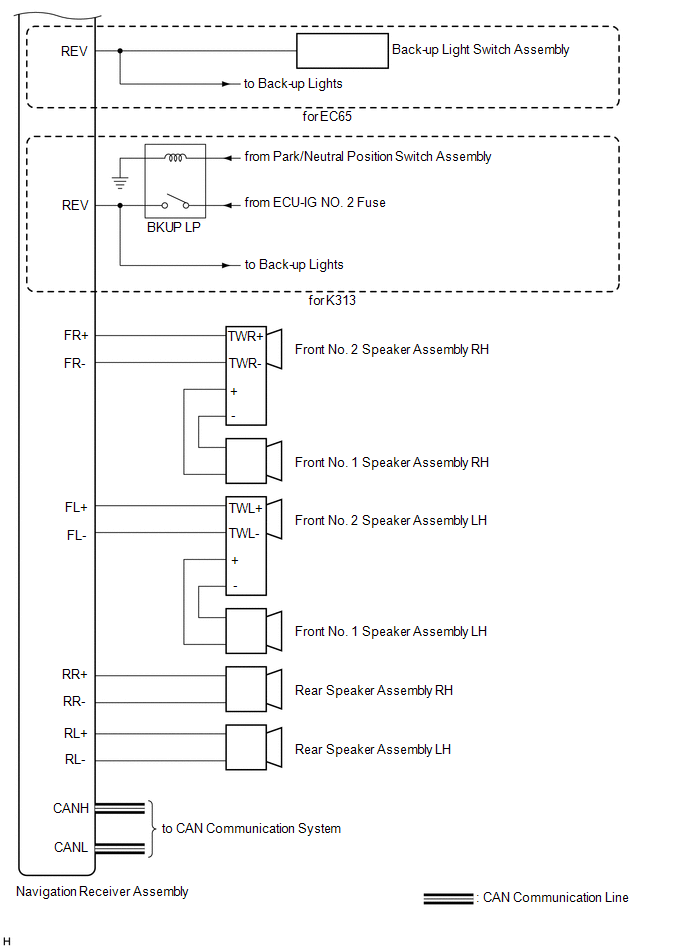

Fig 4: Navigation System Circuit Diagram (4 Of 4)
GTY712661Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
