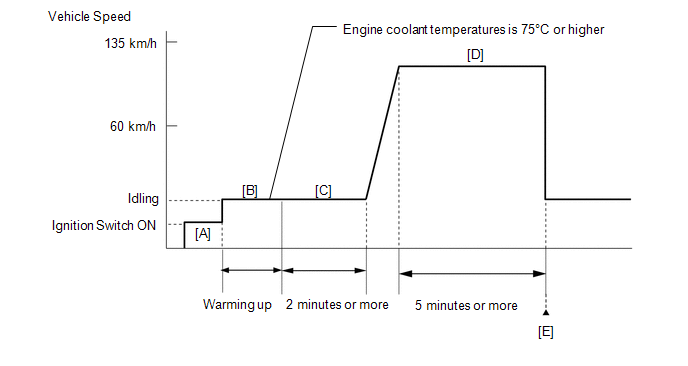

Confirmation Driving Pattern
- Connect the Techstream to the DLC3.
- Turn the ignition switch to ON and turn the Techstream on.
- Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).
- Turn the ignition switch off and wait for at least 30 seconds.
- Turn the ignition switch to ON and turn the Techstream on. [A]
- Start the engine and warm it up (until the engine coolant temperature 75°C (167°F) or higher) with all the accessories switched off. [B]
- With the engine warmed up, idle the engine for 2 minutes or more. [C]
- Drive the vehicle at a speed between 60 and 135 km/h (37 and 84 mph) for 5 minutes or more [D].WARNING:
When performing the confirmation driving pattern, obey all speed limits and traffic laws.
- Enter the following menus: Powertrain / Engine and ECT / Trouble Codes [E].
- Read the pending DTCs.
HINT:
If a pending DTC is output, the system is malfunctioning.
- If no pending DTC is output, perform a universal trip and check for permanent DTCs.
Refer to DTC CHECK / CLEAR [08/2013 - ]
HINT:
- If a permanent DTC is output, the system is malfunctioning.
- If no permanent DTC is output, the system is normal.
