DTC B1793: Occupant Classification Sensor Power Supply Circuit Malfunction [08/2013 - 08/2016]: Wiring Diagram

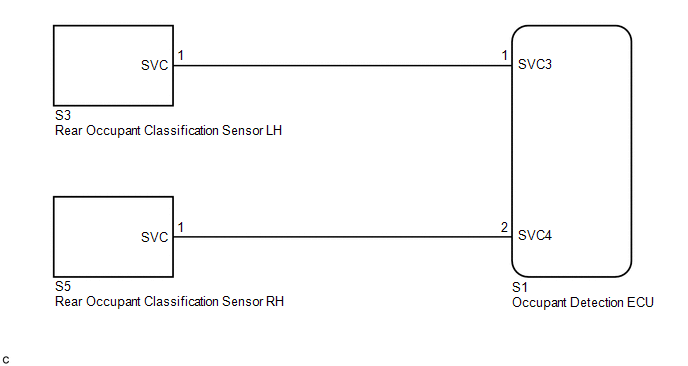

  1. for TMMMS Made:
    GTY450845Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

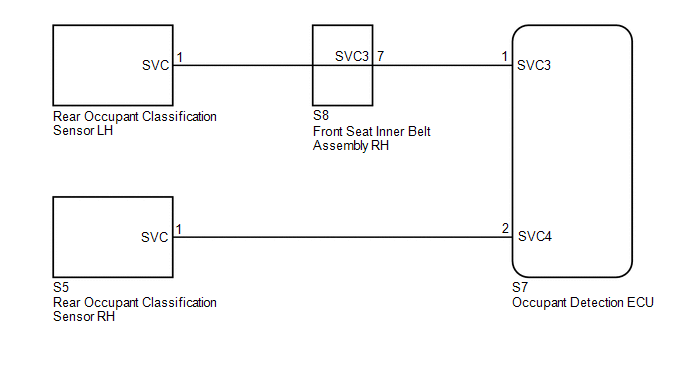

  2. for TMMC Made:
    GTY437148Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
