DTC B1793: Occupant Classification Sensor Power Supply Circuit Malfunction [08/2016 - ]: Wiring Diagram

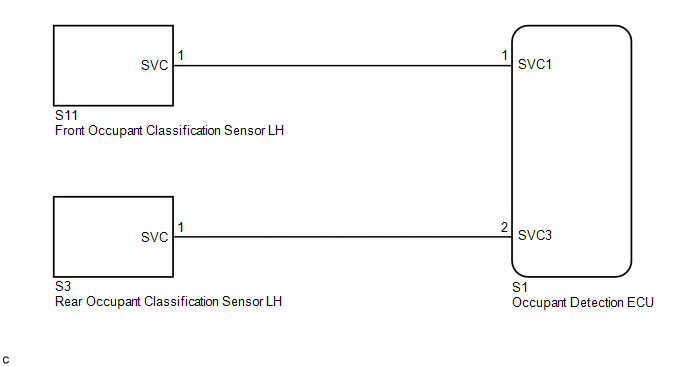

  1. for TMMMS Made:
    GTY709684Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

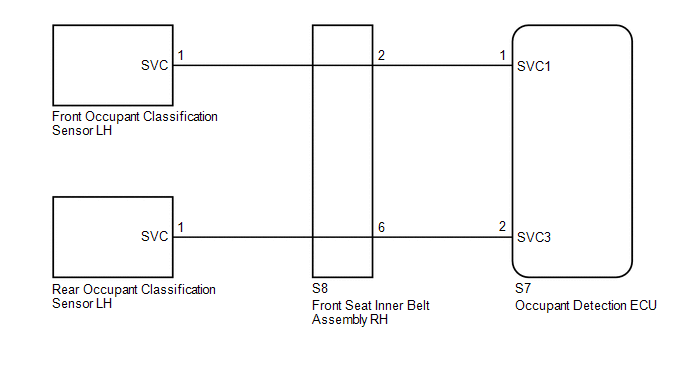

  2. for TMMC Made:
    GTY726458Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
