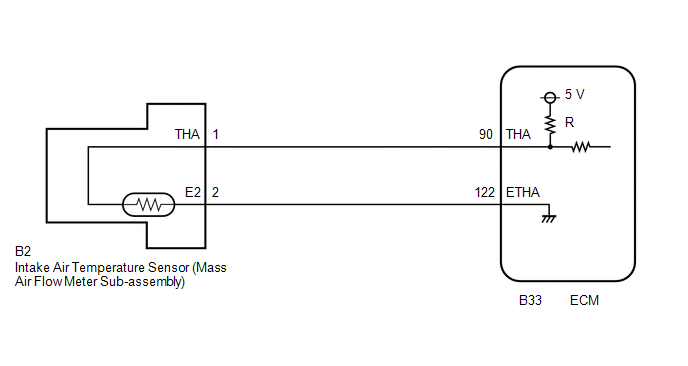

DTC P0112, P0113; Intake Air Temperature Circuit Low Input [08/2013 - 08/2016]: Wiring Diagram

GTY446533Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
