Brake Override System [08/2016 - ]: Description
WARNING: This page is about a different variant/trim than selected.

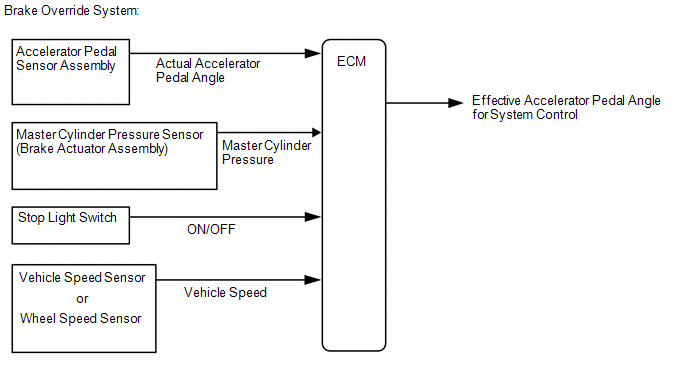

When the vehicle is being driven, depressing the accelerator pedal sensor assembly and brake pedal will activate the brake override system to restrict driving torque. The conditions for activating the brake override system as well as the items that are controlled are explained below.
Activation Conditions:
- Vehicle is running at or above the specified speed.
- When the accelerator pedal and brake pedal are depressed.
NOTE:
The vehicle may not enter the brake override system control due to the relation of the accelerator pedal angle and the vehicle's speed.
Items Controlled:
- Driving torque is restricted.
HINT:
When this control is activated, the accelerator opening value is forcibly reduced to a fixed value. Therefore, the Accelerator Position value in the Data List is fixed regardless of the actual accelerator opening value (Accel Sens. No. 1 Volt %).
Deactivation Conditions:
- When the brake pedal or the accelerator pedal returns to some degree.
