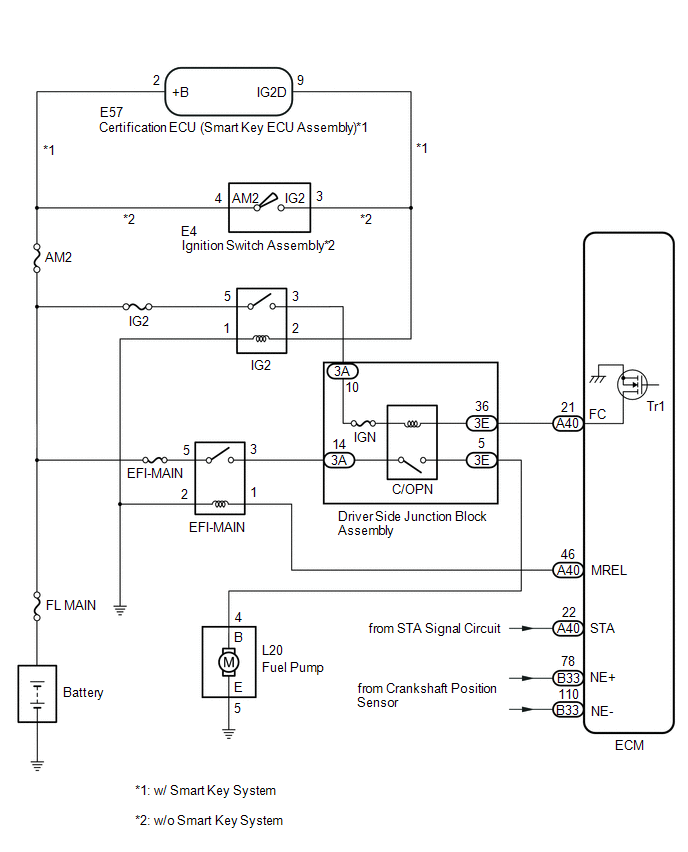

Fuel Pump Control Circuit [08/2013 - ]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.
GTY430887Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
