VC Output Circuit [08/2016 - ]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

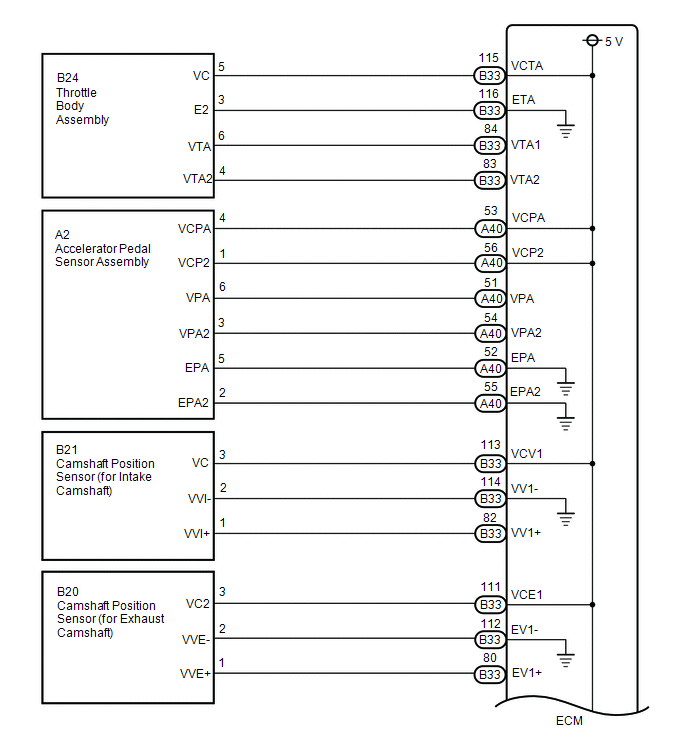

GTY450540Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

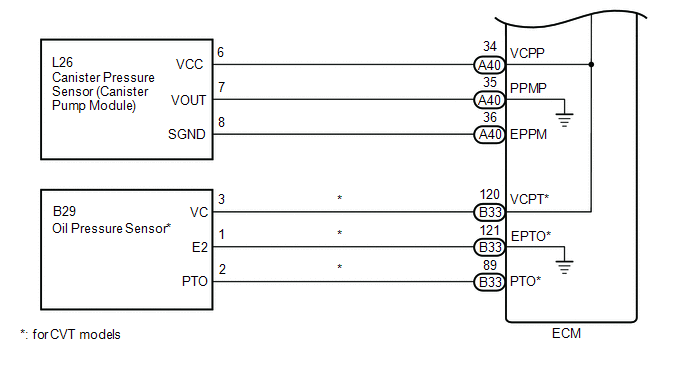

GTY435869Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
