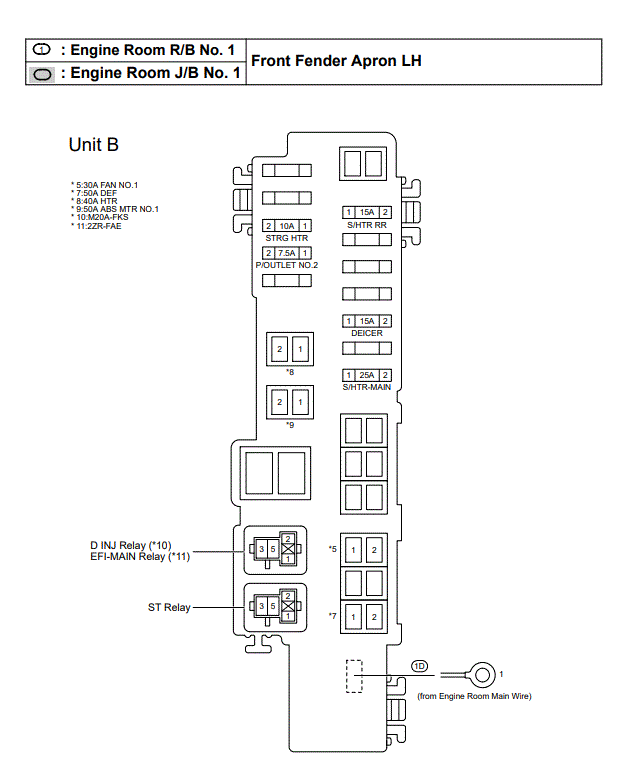

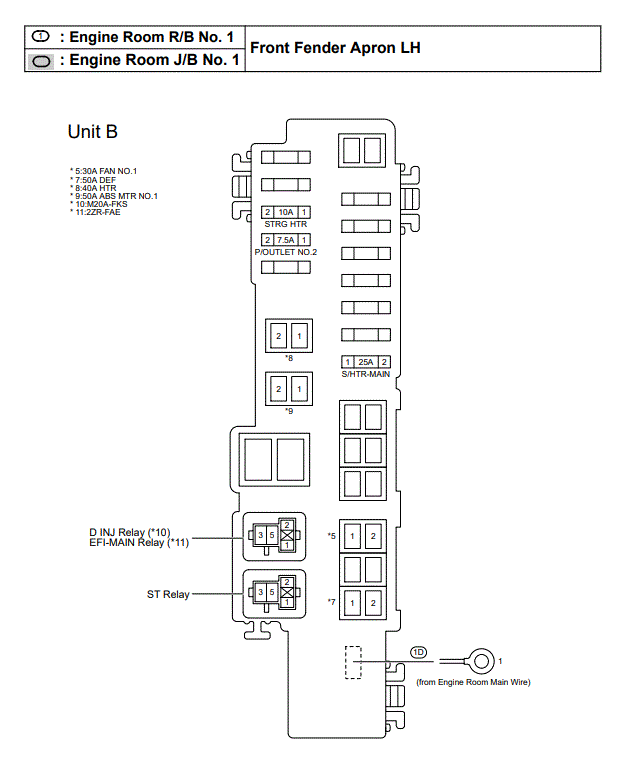

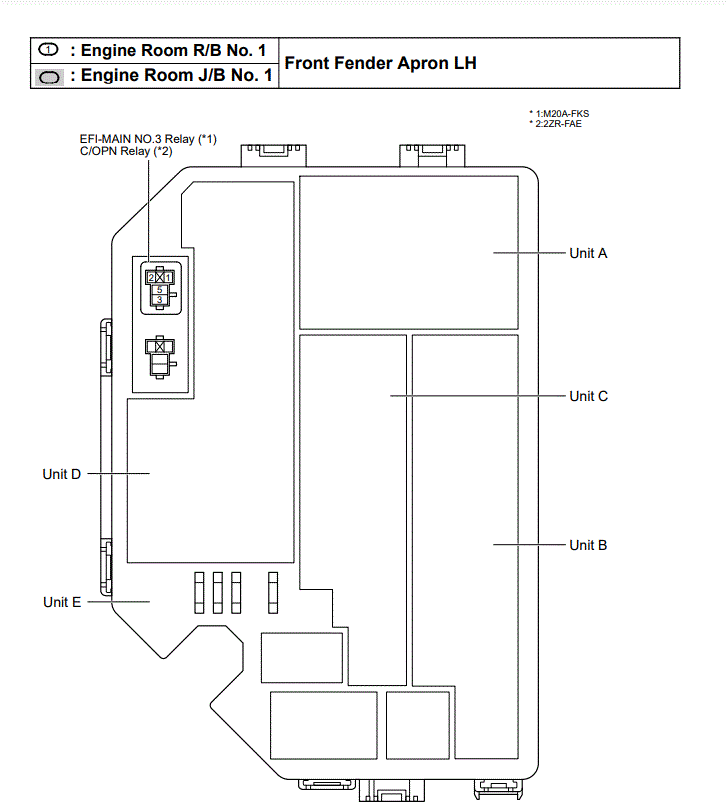

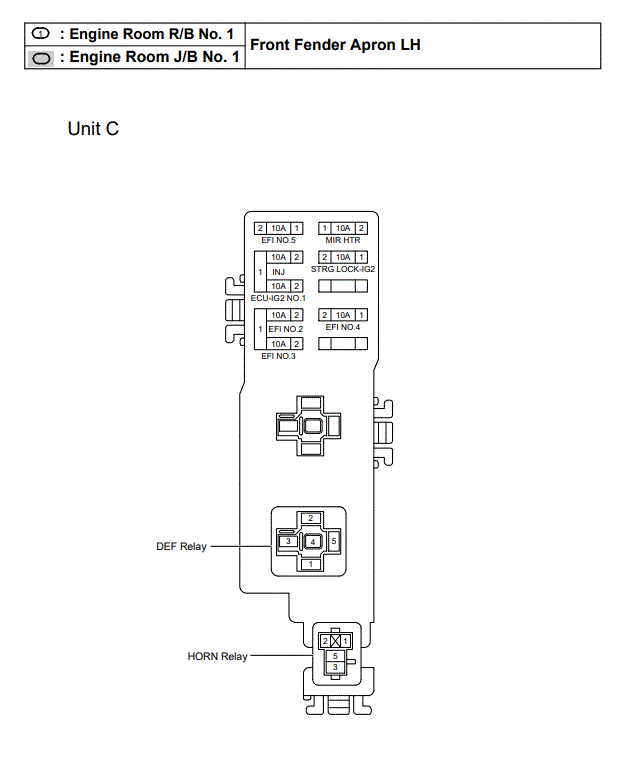

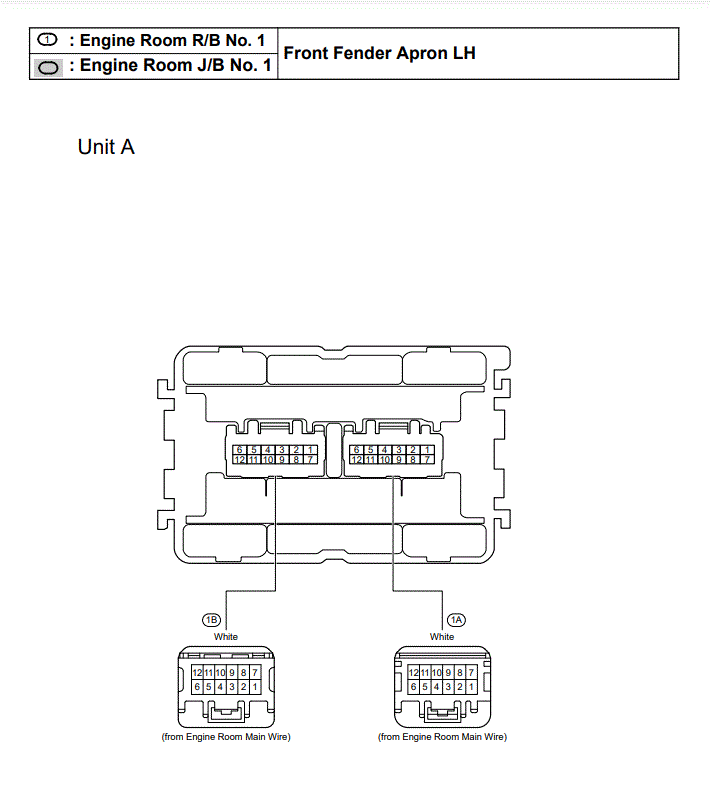

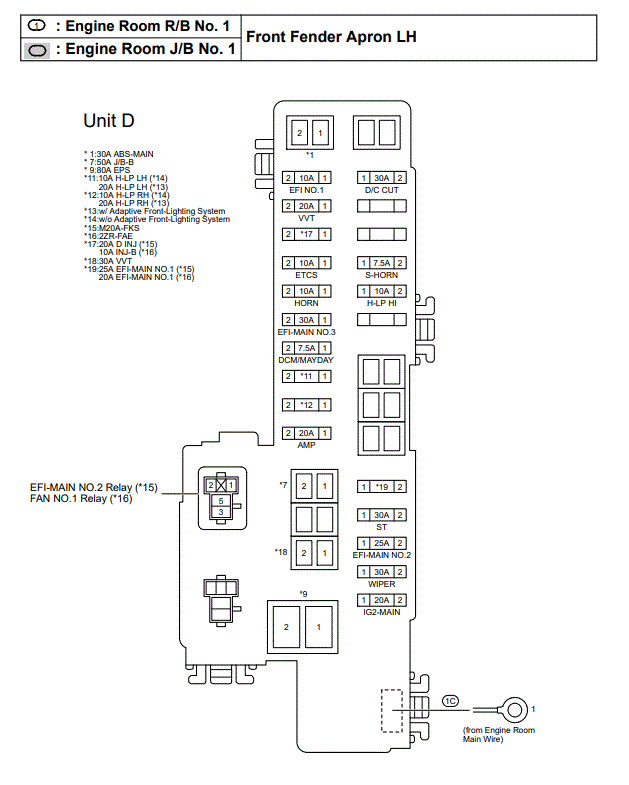

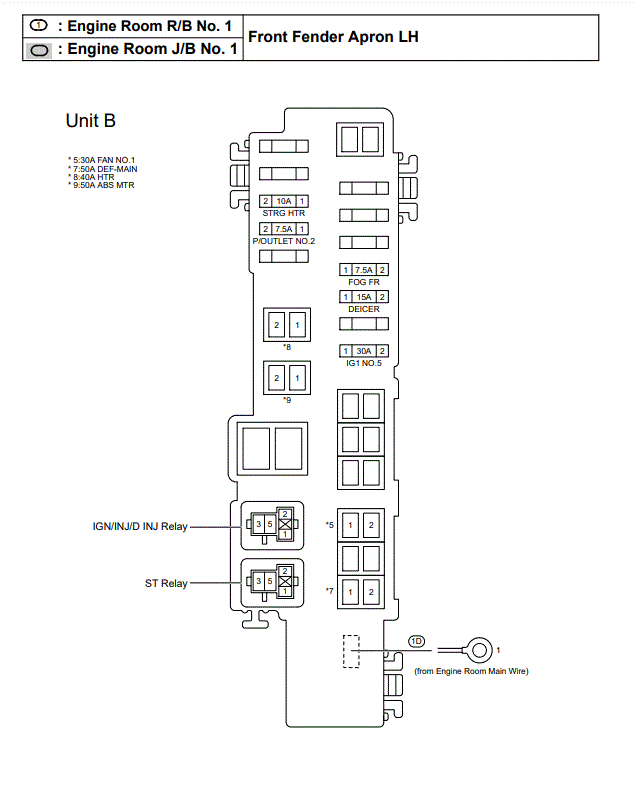

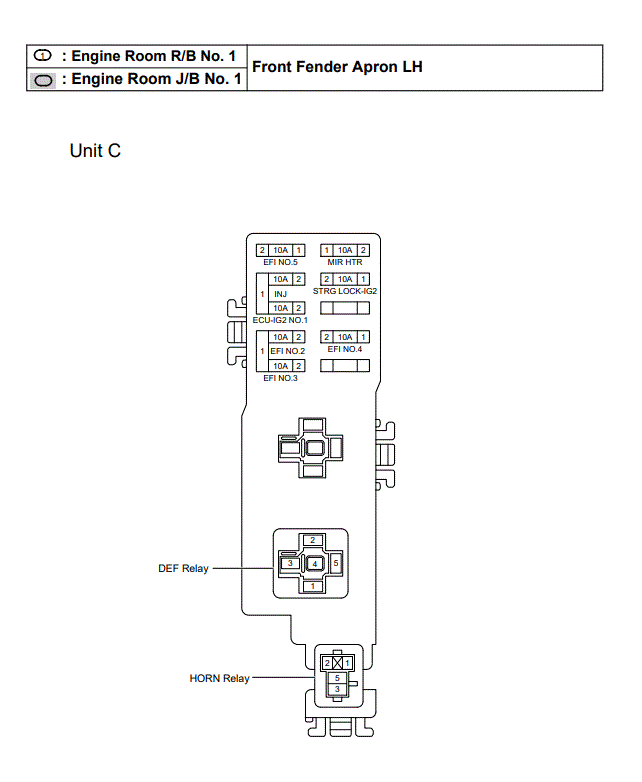

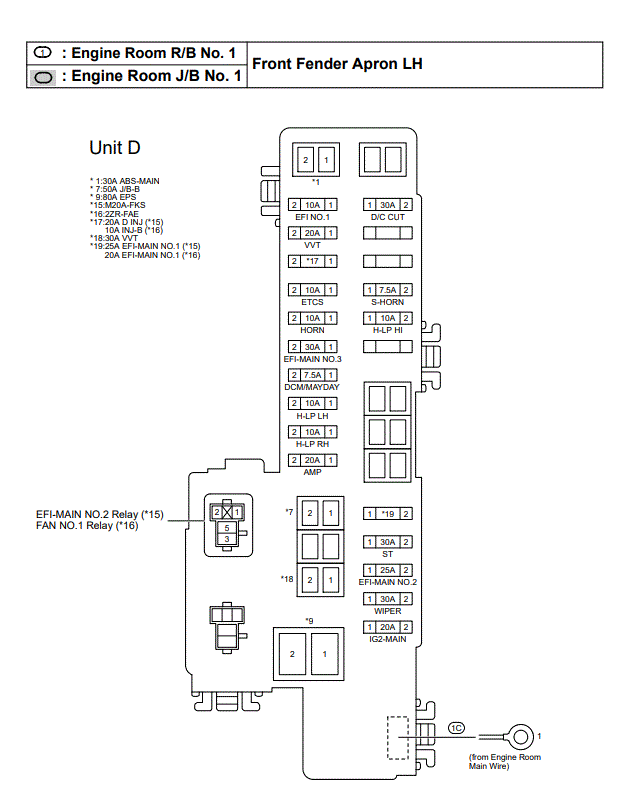

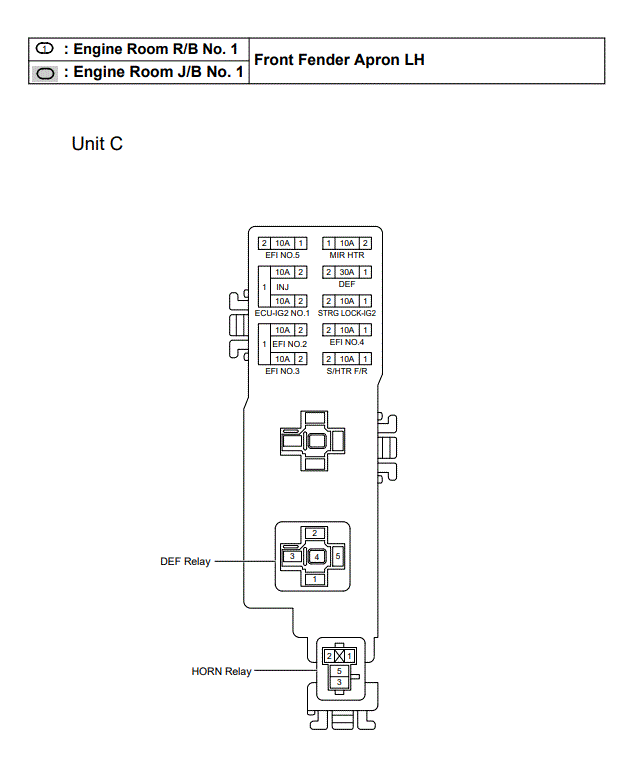

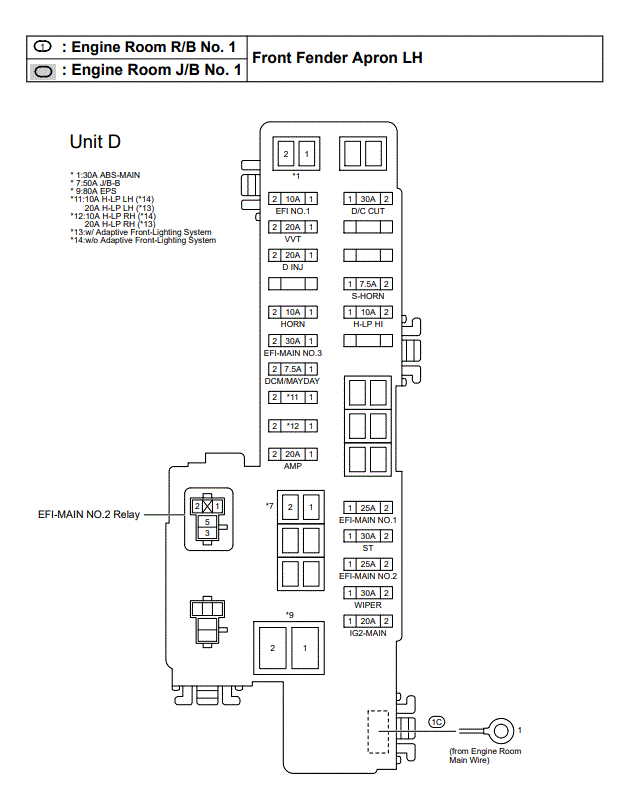

Engine Room Relay Block And Engine Room Junction Block: Front Fender Apron
ENGINE ROOM J/B AND R/B FUSE IDENTIFICATION LEGEND
| Fuse | |
| 5A | ICS |
| 5A | WIP-S |
| 7.5A | AM2 |
| 7.5A | ECU-B NO. 2 |
| 10A | DOME |
| 10A | DRL |
| 10A | ECU-B |
| 10A | EFI NO. 1 |
| 10A | EFI NO. 2 |
| 10A | ETCS |
| 10A | FOG FR |
| 10A | H-LP LH-HI |
| 10A | H-LP LH-LO |
| 10A | H-LP RH-HI |
| 10A | H-LP RH-LO |
| 10A | HORN |
| 10A | MIR HTR |
| 10A | S-HORN |
| 10A | TURN & HAZ |
| 15A | IG2 |
| 15A | INJ |
| 20A | DEICER |
| 20A | EFI-MAIN |
| 20A | RADIO |
| 20A | STRG LOCK |
| 30A | ABS NO. 2 |
| 30A | D/C CUT |
| 30A | HTR SUB NO. 1 |
| 30A | HTR SUB NO. 3 |
| 30A | RDI |
| 30A | ST |
| 30A | VLVMATIC |
| 40A | H-LP MAIN |
| 50A | ABS NO. 1 |
| 50A | DEF |
| 50A | HTR |
| 80A | EPS |
| 120A | ALT |
