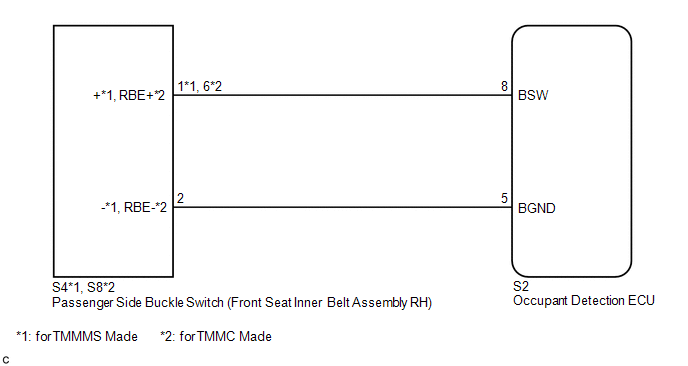

DTC B1771: Passenger Side Buckle Switch Circuit Malfunction [08/2013 - 08/2016]: Wiring Diagram

GTY474411Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
