DTC P0720, P0722; Output Speed Sensor Circuit [08/2013 - 08/2016]: Procedure

1. Connect the Techstream to the DLC3.
2. Turn the ignition switch to ON.
3. Turn the Techstream on.
4. Enter the following menus: Powertrain / Engine and ECT / Data List / Primary.
5. In accordance with the display on the Techstream, read the Data List.

   Powertrain > Engine and ECT > Data List

   Tester Display	Measurement Item	Range	Normal Condition	Diagnostic Note
   SPD (NOUT)	Secondary pulley speed (NOUT)	min.: 0 rpm max.: 12750 rpm	0 rpm: Vehicle stopped Approximately 2500 rpm: Vehicle cruising at approximately 60 km/h (37 mph)	Data is displayed in increments of 50 rpm.
   NOUT Sensor Voltage	Secondary pulley speed (NOUT) sensor output voltage	min.: 0.000 V max.: 4.999 V	0.1 to 1.9 V: Engine idling (Vehicle stopped with shift lever in P or N)	-

   Powertrain > Engine and ECT > Data List

   Tester Display
   SPD (NOUT)
   NOUT Sensor Voltage

   Result

   Result	Proceed to
   Data display is not within Normal Condition range	A
   Data display is within Normal Condition range	B

Result:  2

B

See step  6

Result:  1

A

See step  2

1. Remove the transmission revolution sensor (NOUT).

   Refer to REMOVAL [08/2013 - ]

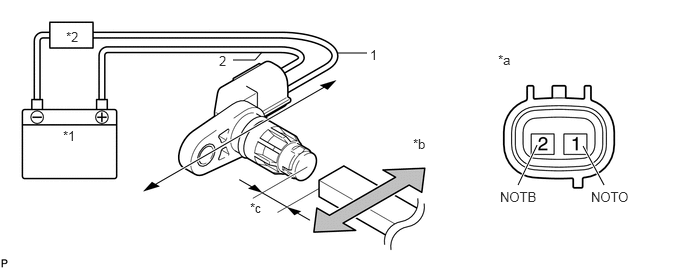

2. Connect the battery to the sensor as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Battery	*2	Ammeter
   *a	Component without harness connected (Transmission Revolution Sensor (NOUT))	*b	Magnet
   *c	5 mm or less	-	-

3. Wave a magnetic object left and right in front of the transmission revolution sensor (NOUT) tip (5 mm (0.197 in.) or less) to change the high/low signals while measuring the current.
   NOTE:

   Make sure to wave the magnetic object during the inspection. The current will not change without waving the magnetic object as indicated by the arrow in the illustration.

4. Measure the current according to the value(s) in the table below.

   Standard Current

   Tester Connection	Condition	Specified Condition
   1 (NOTO) - 2 (NOTB)	Low signal	4 to 8 mA
   1 (NOTO) - 2 (NOTB)	High signal	12 to 16 mA

   Result

   Proceed to
   OK
   NG

Result:  2

NG

REPLACE TRANSMISSION REVOLUTION SENSOR (NOUT). Refer to  COMPONENTS [08/2013 - ]

Result:  1

OK

See step  3

1. Disconnect the B31 transmission revolution sensor (NOUT) connector.
2. Disconnect the B33 ECM connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   B31-1 (NOTO) - B33-129 (NOTO)	Always	Below 1 Ω
   B31-2 (NOTB) - B33-130 (NOTB)	Always	Below 1 Ω
   B31-1 (NOTO) or B33-129 (NOTO) - Body ground and other terminals	Always	10 kΩ or higher
   B31-2 (NOTB) or B33-130 (NOTB) - Body ground and other terminals	Always	10 kΩ or higher

4. Connect the B33 ECM connector.
5. Connect the B31 transmission revolution sensor (NOUT) connector.

   Result

   Proceed to
   OK
   NG

Result:  2

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR (TRANSMISSION REVOLUTION SENSOR (NOUT) - ECM)

Result:  1

OK

See step  4

1. Replace the ECM.
   • for 2ZR-FAE: Refer to COMPONENTS [08/2013 - 08/2016]
   • for 2ZR-FE: Refer to COMPONENTS [08/2013 - 08/2016]

   Result

   Proceed to
   NEXT

Result:  1

NEXT

See step  5

1. Using the Techstream, perform Reset Memory, deceleration sensor zero point calibration and CVT oil pressure calibration.

   Refer to INITIALIZATION [08/2013 - 08/2016]

2. Check for DTCs again.

   Refer to DTC CHECK / CLEAR [08/2013 - ]

   Result

   Proceed to
   NEXT

Result:  1

NEXT

END

1. Replace the ECM.
   • for 2ZR-FAE: Refer to COMPONENTS [08/2013 - 08/2016]
   • for 2ZR-FE: Refer to COMPONENTS [08/2013 - 08/2016]

   Result

   Proceed to
   NEXT

Result:  1

NEXT

See step  7

1. Using the Techstream, perform Reset Memory, deceleration sensor zero point calibration and CVT oil pressure calibration.

   Refer to INITIALIZATION [08/2013 - 08/2016]

2. Check for DTCs again.

   Refer to DTC CHECK / CLEAR [08/2013 - ]

   Result

   Proceed to
   NEXT

Result:  1

NEXT

END
