DTC P2759: Torque Converter Clutch Pressure Control Solenoid Control Circuit Electrical (Shift Solenoid Valve SLU) [08/2013 - 08/2014]: Description

The ECM uses the shift solenoid valve SLU to perform forward and reverse clutch control or lock-up clutch control.

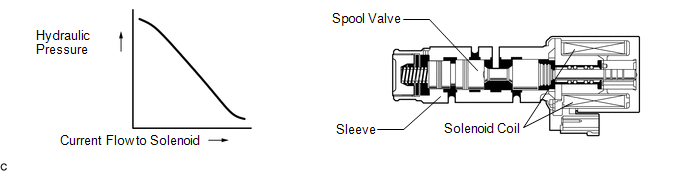

Fig 1: Shift Solenoid Valve SLU & Graph

DTC No.	Detection Item	DTC Detection Condition	Trouble Area	MIL	Memory
P2759	Torque Converter Clutch Pressure Control Solenoid Control Circuit Electrical (Shift Solenoid Valve SLU)	Diagnosis Condition The vehicle is being driven. Malfunction Status An open or short in the shift solenoid valve SLU circuit is detected. Malfunction Time 1 second or more Other 1 trip detection logic	Wire harness or connector Continuously variable transaxle assembly (Shift solenoid valve SLU) ECM	Comes on	DTC stored
