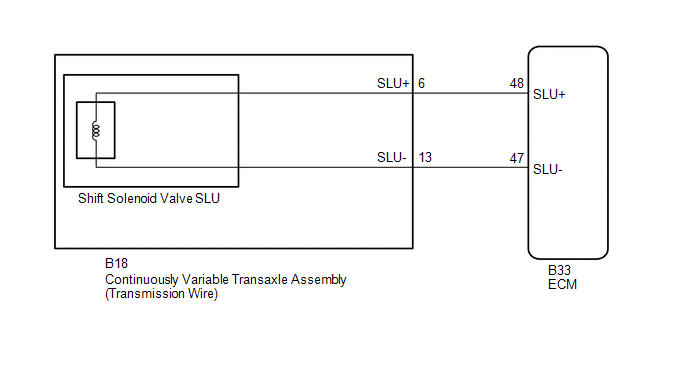

DTC P2759: Torque Converter Clutch Pressure Control Solenoid Control Circuit Electrical (Shift Solenoid Valve SLU) [08/2013 - 08/2014]: Wiring Diagram

GTY443576Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
