DTC P2822: Pressure Control Solenoid "J" Electrical (Shift Solenoid Valve SLP) [08/2013 - 08/2014]: Description

According to current control by the ECM, the shift solenoid valve SLP controls primary pulley pressure in accordance with the requested gear ratio to perform gear ratio changes.

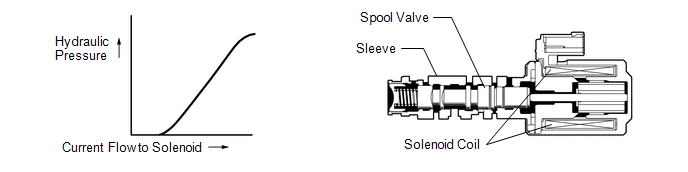

Fig 1: Shift Solenoid Valve SLP
GTY435025Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DTC No. Detection Item DTC Detection Condition Trouble Area MIL Memory
P2822 Pressure Control Solenoid "J" Electrical (Shift Solenoid Valve SLP)
  1. Diagnosis Condition
    • The vehicle is being driven.
  2. Malfunction Status
    • An open or short in the shift solenoid valve SLP circuit is detected.
  3. Malfunction Time
    • 1.049 seconds or more
  4. Other
    • 1 trip detection logic
  • Wire harness or connector
  • Continuously variable transaxle assembly (Shift solenoid valve SLP)
  • ECM
 Comes on DTC stored
