DTC B1579: Voice Recognition Microphone Disconnected [08/2013 - 08/2016]: Procedure
- INSPECT NAVIGATION RECEIVER ASSEMBLY

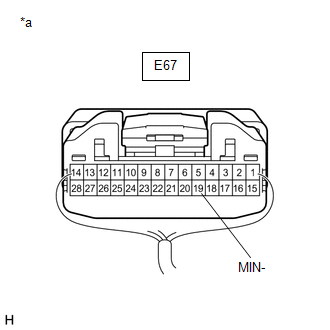

- Measure the resistance according to the value(s) in the table below.
*a Component with harness connected
(Navigation Receiver Assembly)Standard Resistance
Tester Connection Condition Specified Condition E67-19 (MIN-) - Body ground Always Below 1 Ω Result
Result Proceed to OK (w/ Sliding Roof) A OK (w/o Sliding Roof) B NG C
Result:
B
See step 5
Result:
C
REPLACE NAVIGATION RECEIVER ASSEMBLY. Refer to REMOVAL [08/2013 - 08/2016]
Result:
A
See step 2
- Measure the resistance according to the value(s) in the table below.
- CHECK HARNESS AND CONNECTOR (NAVIGATION RECEIVER ASSEMBLY - MAP LIGHT ASSEMBLY (TELEPHONE MICROPHONE ASSEMBLY))
- Disconnect the E67 navigation receiver assembly connector.
- Disconnect the O7 map light assembly (telephone microphone assembly) connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition E67-6 (SNS2) - O7-12 (SNS2) Always Below 1 Ω E67-19 (MIN-) - O7-9 (MIC-) Always Below 1 Ω E67-6 (SNS2) - Body ground Always 10 kΩ or higher E67-19 (MIN-) - Body ground Always 10 kΩ or higher
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 3
- INSPECT MAP LIGHT ASSEMBLY
- Remove the map light assembly (telephone microphone assembly).
Refer to REMOVAL [08/2013 - 08/2016]

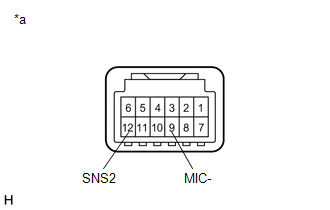

- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition 12 (SNS2) - 9 (MIC-) Always Below 1 Ω *a Component without harness connected
(Map Light Assembly (Telephone Microphone Assembly))
Result:
OK
REPLACE NAVIGATION RECEIVER ASSEMBLY. Refer to REMOVAL [08/2013 - 08/2016]
Result:
NG
See step 4
- Remove the map light assembly (telephone microphone assembly).
- REPLACE TELEPHONE MICROPHONE ASSEMBLY
- Replace the telephone microphone assembly.
Refer to REMOVAL [08/2013 - 08/2016]
- Clear the DTCs.
Refer to DTC CHECK / CLEAR [08/2013 - 08/2016]
Body Electrical > Navigation System > Clear DTCs
- Recheck for DTCs and check that no DTCs are output.
Body Electrical > Navigation System > Trouble Codes
OK
No DTCs are output.
Result:
OK
END
Result:
NG
REPLACE MAP LIGHT ASSEMBLY. Refer to REMOVAL [08/2013 - 08/2016]
- Replace the telephone microphone assembly.
- CHECK HARNESS AND CONNECTOR (NAVIGATION RECEIVER ASSEMBLY - TELEPHONE MICROPHONE ASSEMBLY)
- Disconnect the E67 navigation receiver assembly connector.
- Disconnect the O4 telephone microphone assembly connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition E67-6 (SNS2) - O4-3 (SNS2) Always Below 1 Ω E67-19 (MIN-) - O4-4 (MIC-) Always Below 1 Ω E67-6 (SNS2) - Body ground Always 10 kΩ or higher E67-19 (MIN-) - Body ground Always 10 kΩ or higher
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 6
- INSPECT TELEPHONE MICROPHONE ASSEMBLY
- Remove the telephone microphone assembly.
Refer to REMOVAL [08/2013 - 08/2016]

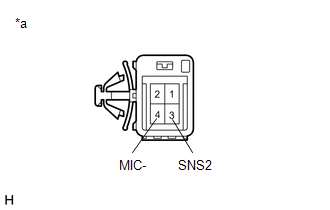

- Measure the resistance according to the value(s) in the table below.
*a Component without harness connected
(Telephone Microphone Assembly)Standard Resistance
Tester Connection Condition Specified Condition 3 (SNS2) - 4 (MIC-) Always Below 1 Ω
Result:
OK
REPLACE NAVIGATION RECEIVER ASSEMBLY. Refer to REMOVAL [08/2013 - 08/2016]
Result:
NG
REPLACE TELEPHONE MICROPHONE ASSEMBLY. Refer to REMOVAL [08/2013 - 08/2016]
- Remove the telephone microphone assembly.
