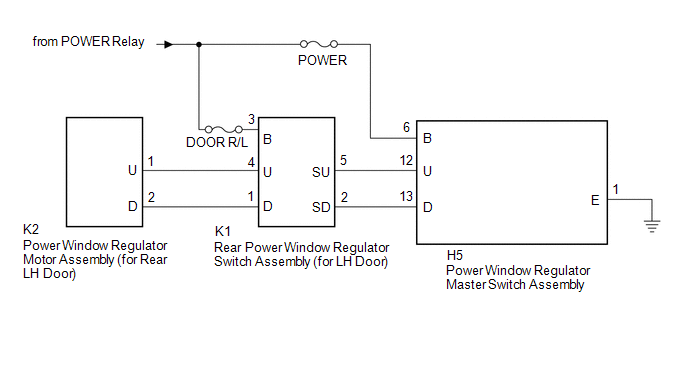

Rear Power Window LH does not Operate with Rear Power Window Switch LH [08/2013 - ]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
