Components [08/2016 - ]: Illustration

WARNING: This page is about a different variant/trim than selected.

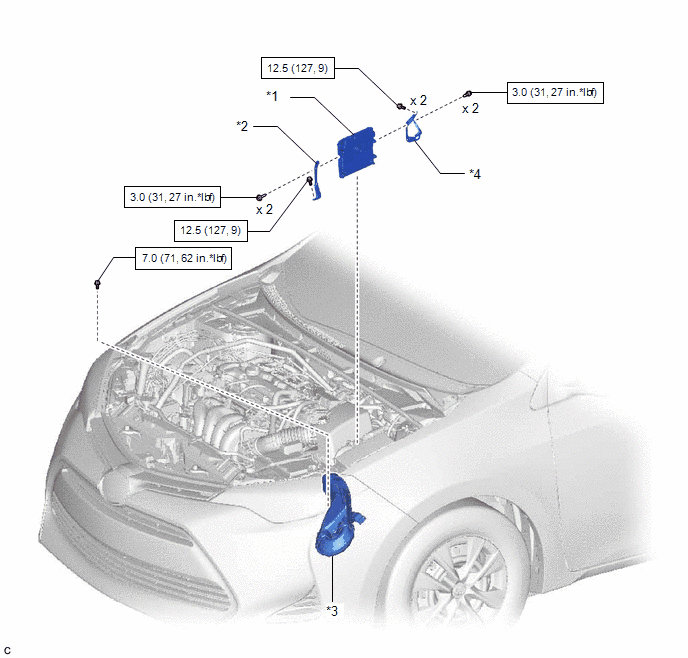

Fig 1: ECM Replacement Components With Torque Specifications
GTY710249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 ECM *2 ECM BRACKET
*3 INLET NO. 1 AIR CLEANER *4 NO. 2 ECM BRACKET
N*m (kgf*cm, ft.*lbf): Specified torque - -
