Removal [08/2013 - ]: Procedure
WARNING: This page is about a different variant/trim than selected.
- REMOVE NO. 2 CYLINDER HEAD COVER
Refer to PROCEDURE - Step 11
Refer to PROCEDURE - Step 11
- REMOVE IGNITION COIL ASSEMBLY

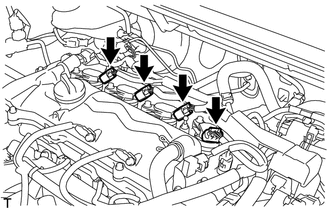

- Disconnect the 4 ignition coil assembly connectors.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Remove the 4 bolts and 4 ignition coil assemblies from the cylinder head cover sub-assembly.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
NOTE:
If an ignition coil assembly has been struck or dropped, replace it.
HINT:
Arrange the removed parts in the correct order.
- REMOVE SPARK PLUG

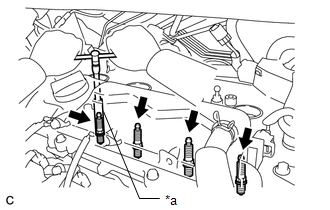

- Using a 14 mm spark plug wrench, remove the 4 spark plugs from the cylinder head sub-assembly.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
| *a |
14 mm Spark Plug Wrench |
NOTE:
If a spark plug has been struck or dropped, replace it.
HINT:
Arrange the removed parts in the correct order.
