Removal [08/2013 - 08/2016]: Procedure

WARNING: This page is about a different variant/trim than selected.

PRECAUTION
NOTE:
After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

Refer to PRECAUTION [08/2013 - 08/2015] Refer to PRECAUTION [08/2015 - 08/2016]
DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

Refer to INITIALIZATION [08/2013 - 08/2015] Refer to INITIALIZATION [08/2015 - 08/2016]
REMOVE NO. 2 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY
Refer to PROCEDURE - Step 3 Refer to PROCEDURE - Step 3 Refer to PROCEDURE - Step 3
REMOVE NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY
Refer to PROCEDURE - Step 6 Refer to PROCEDURE - Step 6 Refer to PROCEDURE - Step 6
REMOVE NO. 1 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY
Refer to PROCEDURE - Step 7 Refer to PROCEDURE - Step 7 Refer to PROCEDURE - Step 7
REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
Refer to PROCEDURE - Step 8 Refer to PROCEDURE - Step 8 Refer to PROCEDURE - Step 8
REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY
Refer to PROCEDURE - Step 9 Refer to PROCEDURE - Step 9 Refer to PROCEDURE - Step 9
REMOVE NO. 1 SWITCH HOLE BASE
Refer to PROCEDURE - Step 8

REMOVE ENGINE SWITCH

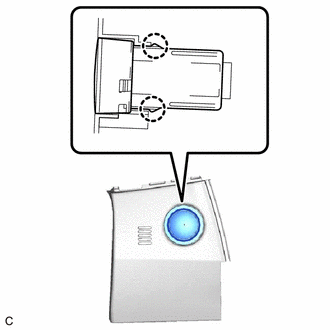

Disengage the 2 claws and remove the engine switch.
