Removal [08/2013 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [08/2013 - 08/2015] Refer to INITIALIZATION [08/2015 - 08/2016] Refer to INITIALIZATION [08/2016 - 08/2017] Refer to INITIALIZATION [08/2017 - ]

  2. REMOVE NO. 2 CYLINDER HEAD COVER (for 2ZR-FE)

    Refer to PROCEDURE - Step 13 Refer to PROCEDURE - Step 12

  3. REMOVE NO. 2 CYLINDER HEAD COVER (for 2ZR-FAE)

    Refer to PROCEDURE - Step 11 Refer to PROCEDURE - Step 11

  4. REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE (for 2ZR-FE)

    Refer to PROCEDURE - Step 3 Refer to PROCEDURE - Step 3

  5. REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE (for 2ZR-FAE)

    Refer to PROCEDURE - Step 3

  6. REMOVE AIR CLEANER CASE SUB-ASSEMBLY (for 2ZR-FE)

    Refer to PROCEDURE - Step 15 Refer to PROCEDURE - Step 14

  7. REMOVE AIR CLEANER CASE SUB-ASSEMBLY (for 2ZR-FAE)

    Refer to PROCEDURE - Step 13 Refer to PROCEDURE - Step 13

  8. REMOVE BATTERY (for 2ZR-FE)

    Refer to PROCEDURE - Step 16 Refer to PROCEDURE - Step 15

  9. REMOVE BATTERY (for 2ZR-FAE)

    Refer to PROCEDURE - Step 14 Refer to PROCEDURE - Step 14

  10. REMOVE BATTERY CARRIER (for 2ZR-FE)

    Refer to PROCEDURE - Step 17 Refer to PROCEDURE - Step 16

  11. REMOVE BATTERY CARRIER (for 2ZR-FAE)

    Refer to PROCEDURE - Step 15 Refer to PROCEDURE - Step 15

  12. SEPARATE TRANSMISSION CONTROL CABLE ASSEMBLY
    1. Move the shift lever to N.
    2. Remove the nut and separate the transmission control cable assembly from the control shaft lever.
      GTY437285Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the clip and separate the transmission control cable assembly from the No. 1 transmission control cable bracket.
  13. REMOVE PARK/NEUTRAL POSITION SWITCH ASSEMBLY
    1. Remove the nut, washer and control shaft lever from the park/neutral position switch assembly.

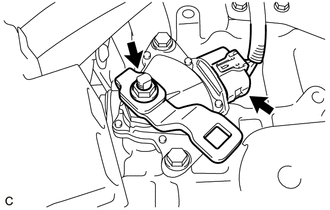

      GTY424316Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the park/neutral position switch assembly connector.
    3. Pry out the lock plate and remove the lock nut and lock plate from the park/neutral position switch assembly.

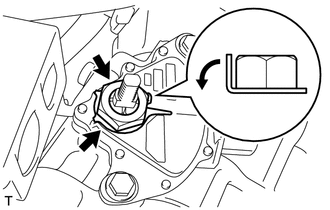

      GTY453199Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the 2 bolts and park/neutral position switch assembly from the continuously variable transaxle assembly.

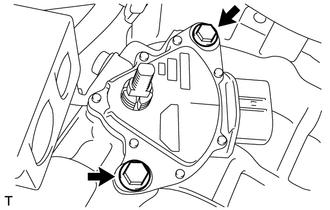

      GTY436637Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
