Components [08/2013 - ]: Illustration
WARNING: This page is about a different variant/trim than selected.

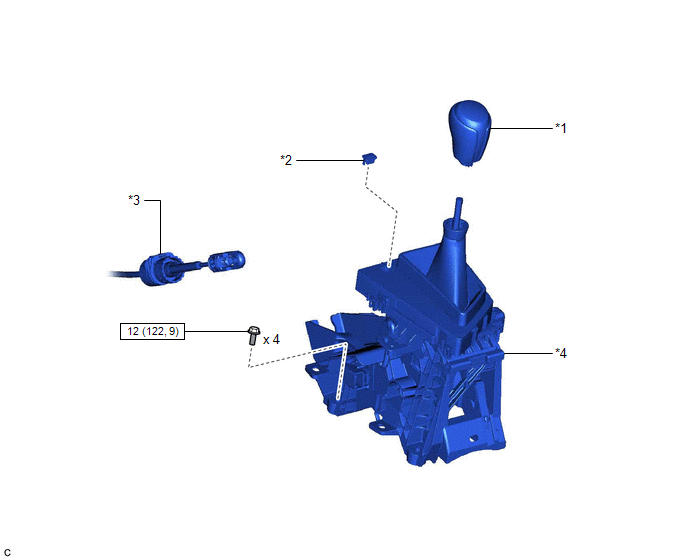

| Callout | Description | Callout | Description |
| *1 | SHIFT LEVER KNOB SUB-ASSEMBLY | *2 | SHIFT LOCK RELEASE BUTTON COVER |
| *3 | TRANSMISSION CONTROL CABLE ASSEMBLY | *4 | TRANSMISSION FLOOR SHIFT ASSEMBLY |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

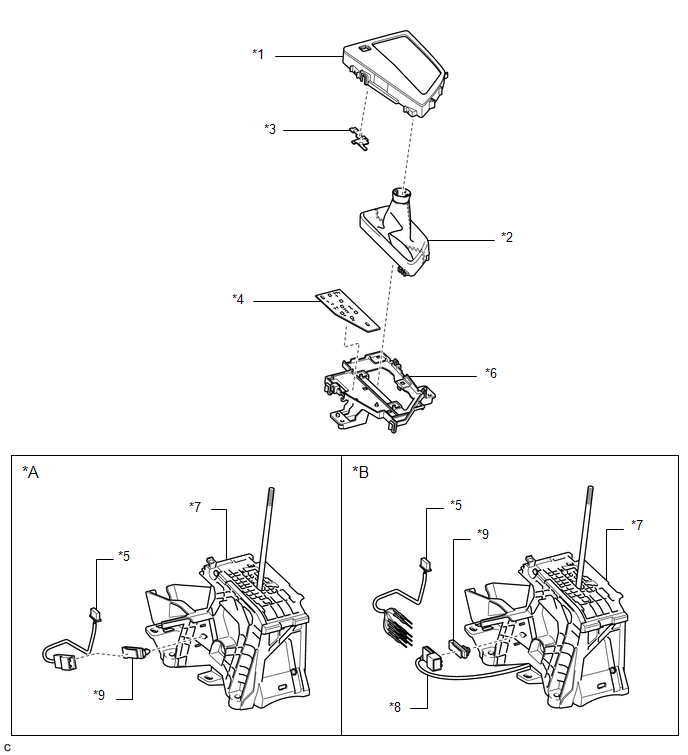

| Callout | Description | Callout | Description |
| *A | w/ Sport Sequential Shiftmatic | *B | w/o Sport Sequential Shiftmatic |
| *1 | FLOOR SHIFT POSITION INDICATOR HOUSING SUB-ASSEMBLY | *2 | SHIFTING HOLE COVER SUB-ASSEMBLY |
| *3 | POSITION INDICATOR LIGHT GUIDE | *4 | SHIFT POSITION INDICATOR |
| *5 | INDICATOR LIGHT WIRE SUB-ASSEMBLY | *6 | LOWER POSITION INDICATOR HOUSING |
| *7 | SHIFT LOCK CONTROL UNIT ASSEMBLY | *8 | TRANSMISSION CONTROL SWITCH CONNECTOR |
| *9 | CLAMP | - | - |
