Removal [08/2013 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE REAR CONSOLE BOX ASSEMBLY

    Refer to REMOVAL [08/2013 - 08/2016] Refer to REMOVAL [08/2016 - ]

  2. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY
    1. Move the shift lever to N.
    2. Disengage the claw and separate the shifting hole cover sub-assembly as shown in the illustration.

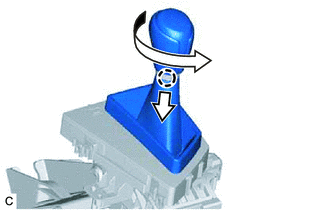

      GTY452179Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Turn the shift lever knob sub-assembly counterclockwise to remove the shift lever knob sub-assembly.
  3. SEPARATE TRANSMISSION CONTROL CABLE ASSEMBLY
    1. Separate the end of the transmission control cable assembly from the transmission floor shift assembly.
      GTY431944Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a screwdriver, pull out the stopper of the transmission control cable assembly.
      GTY436418Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Stopper
      NOTE:

      Do not remove the stopper. If it is removed, reinstall it to its original position.

    3. Rotate the nut counterclockwise approximately 180° and, while holding the nut in that position, separate the transmission control cable assembly from the transmission floor shift assembly.
      GTY433316Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Stopper
      *b Nut
      NOTE:

      Do not rotate the nut excessively as the interior spring may come off and the transmission control cable assembly will not be reusable.

  4. REMOVE TRANSMISSION FLOOR SHIFT ASSEMBLY
    1. w/o Sequential Shift:
      1. Disconnect the transmission control switch connector.

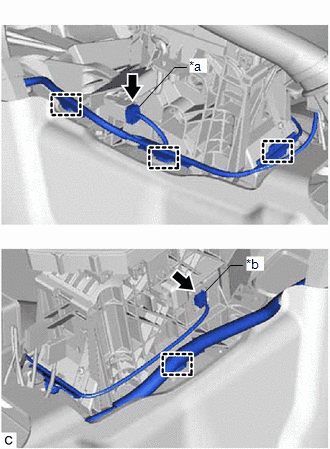

        GTY453705Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Transmission Control Switch Connector
        *b Shift Lock Control ECU Connector
      2. Disconnect the shift lock control ECU connector.
      3. Disengage the 4 clamps to separate the wire harness from the transmission floor shift assembly.
    2. w/ Sequential Shift:
      1. Disconnect the transmission control switch connector.

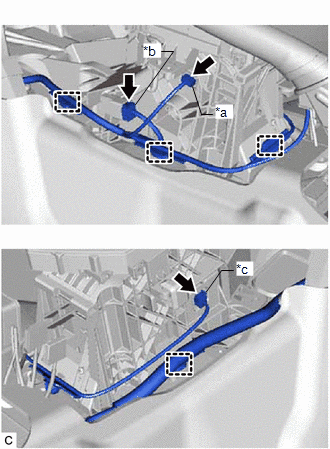

        GTY423819Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Transmission Control Switch Connector
        *b Indicator Wire Sub-assembly Connector
        *c Shift Lock Control ECU Connector
      2. Disconnect the indicator wire sub-assembly connector.
      3. Disconnect the shift lock control ECU connector.
      4. Disengage the 4 clamps to separate the wire harness from the transmission floor shift assembly.
    3. Remove the 4 bolts and transmission floor shift assembly from the vehicle body.

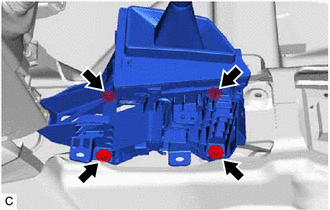

      GTY452176Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE SHIFT LOCK RELEASE BUTTON COVER
    1. Disengage the 2 claws to remove the shift lock release button cover from the transmission floor shift assembly.

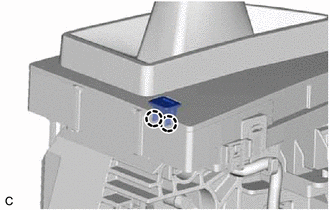

      GTY431924Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
