Occupant Classification System - Diagnostics - Introduction (Model Code: ZRE172)
>>
Occupant Classification System
>>
System Diagram [08/2016 - ]
>>
System Diagram [08/2016 - ]
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System Diagram [08/2016 - ]

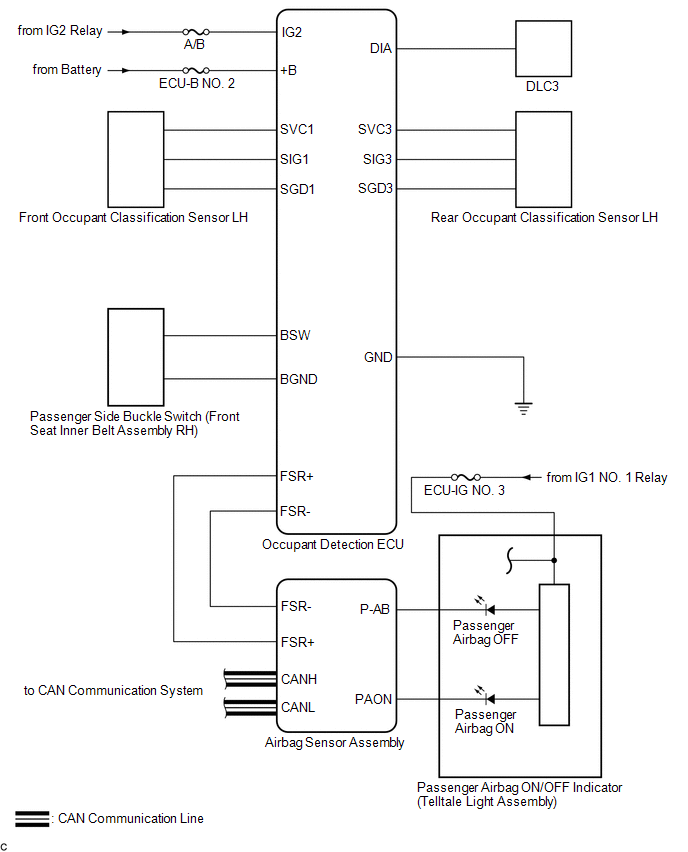

Fig 1: Occupant Classification System Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
