Components [08/2016 - ]: Illustration

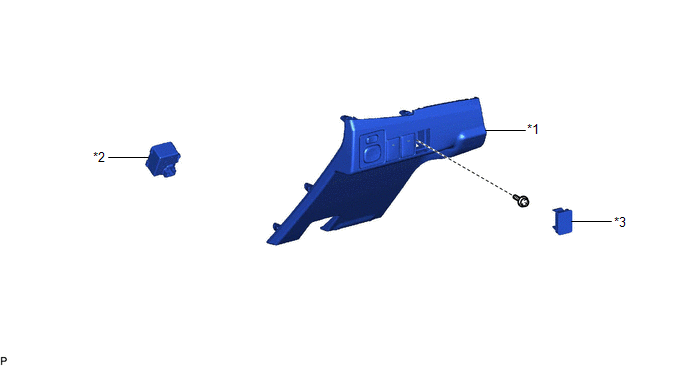

Fig 1: Pre-Collision System Warning Buzzer Replacement Components
GTY730647Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 FUSE BOX OPENING COVER *2 SKID CONTROL BUZZER
*3 COVER - -
