Inspection [08/2016 - ]: Procedure

  1. INSPECT SKID CONTROL BUZZER
    1. Make sure that there is no looseness in the locking part and connecting part of the connector.
      GTY539877Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the skid control buzzer connector.
    3. Check the connector and terminals for deformation and corrosion.

      OK

      No deformation or corrosion.

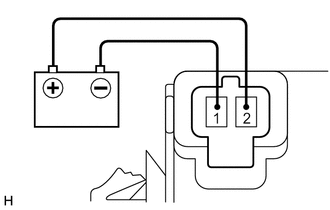

    4. Connect a positive (+) lead from the battery to terminal 2, and a negative (-) lead to terminal 1 of the skid control buzzer, and check that the buzzer sounds.

      OK

      The skid control buzzer sounds.

      If the result is not as specified, replace the skid control buzzer.
