Parts Location [08/2017 - ]: Illustration

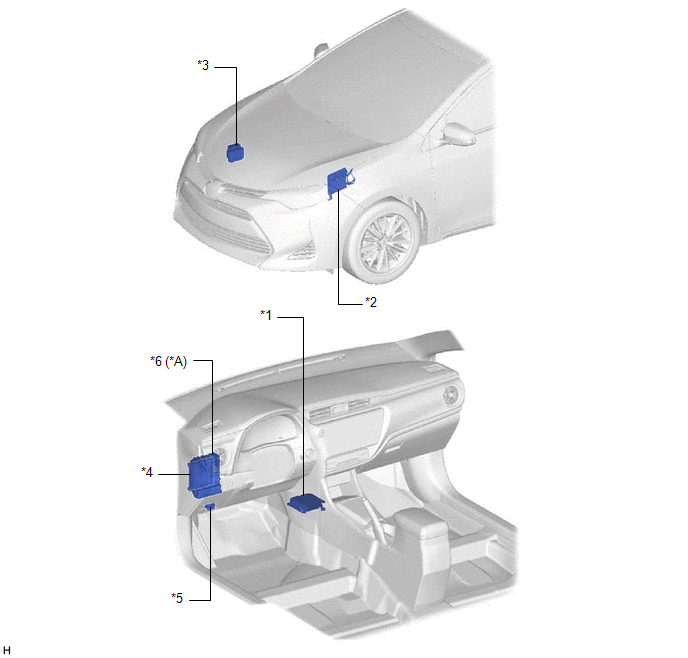

Fig 1: Seat Belt Warning System (W/ Occupant Classification System) Component Locations (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	w/ Rear Seat Belt Warning	-	-
*1	AIRBAG SENSOR ASSEMBLY	*2	ECM
*3	SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY)	*4	MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)
*5	DLC3	*6	DRIVER SIDE JUNCTION BLOCK ASSEMBLY - ECU-IG NO. 3 FUSE

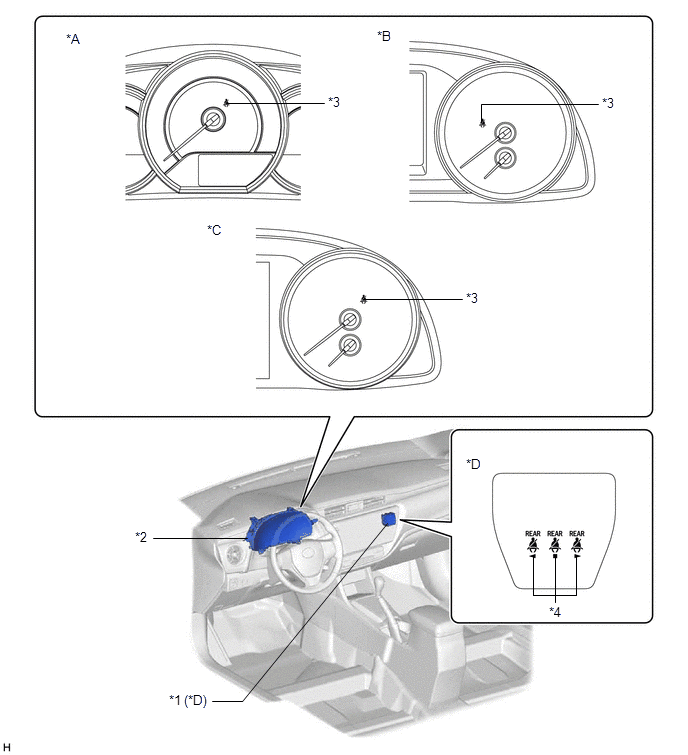

Fig 1: Seat Belt Warning System (W/ Occupant Classification System) Component Locations (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for Multi-information Display (Segment LCD Type)	*B	for Multi-information Display (Dot LCD Type)
*C	for Multi-information Display (Color Type)	*D	w/ Rear Seat Belt Warning
*1	TELLTALE LIGHT ASSEMBLY	*2	COMBINATION METER ASSEMBLY - SEAT BELT WARNING BUZZER
*3	SEAT BELT WARNING LIGHT	*4	REAR SEAT BELT WARNING LIGHT

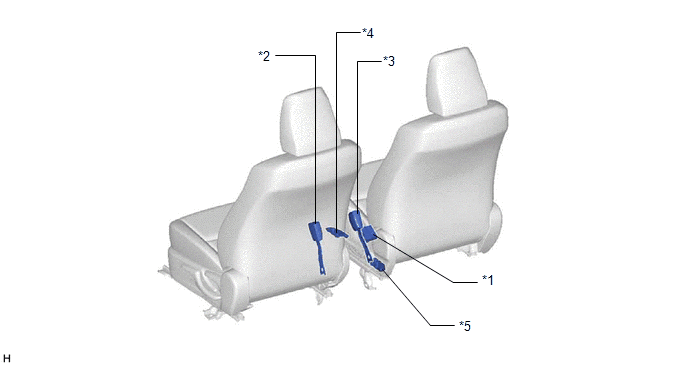

Fig 1: Seat Belt Warning System (W/ Occupant Classification System) Component Locations (3 Of 4)

*1	OCCUPANT DETECTION ECU	*2	FRONT SEAT INNER BELT ASSEMBLY LH
*3	FRONT SEAT INNER BELT ASSEMBLY RH	*4	FRONT OCCUPANT CLASSIFICATION SENSOR LH
*5	REAR OCCUPANT CLASSIFICATION SENSOR LH	-	-

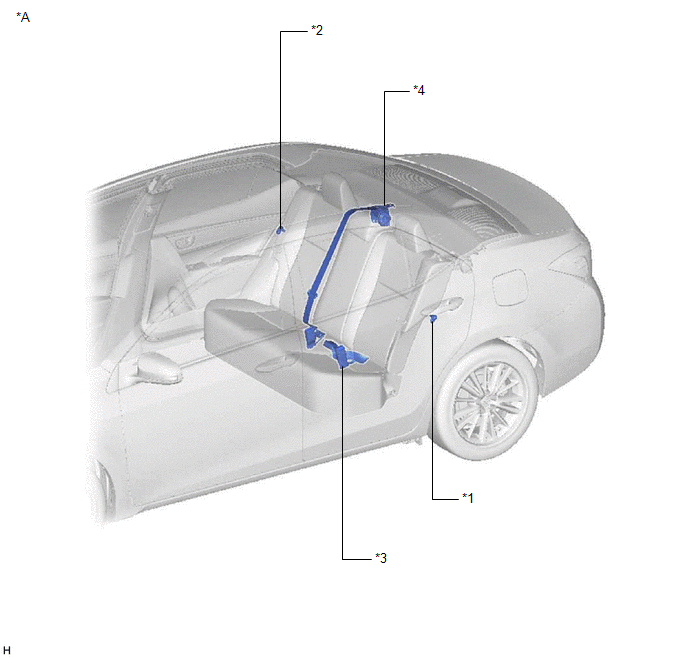

Fig 1: Seat Belt Warning System (W/ Occupant Classification System) Component Locations (4 Of 4)

*A	w/ Rear Seat Belt Warning	-	-
*1	REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY (LH)	*2	REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY (RH)
*3	REAR SEAT INNER WITH CENTER BELT ASSEMBLY LH	*4	REAR SEAT INNER WITH CENTER BELT ASSEMBLY RH
