Rear Seat Belt Warning Light Malfunction [08/2017 - ]: Procedure

  1. READ VALUE USING TECHSTREAM (REAR DOOR COURTESY SWITCH)
    1. Connect the Techstream to the DLC3.
    2. Turn the ignition switch to ON.
    3. Turn the Techstream on.
    4. Enter the following menus: Body Electrical / Main Body / Data List.
    5. Read the Data List according to the display on the Techstream.

      Body Electrical > Main Body > Data List

      Tester Display Measurement Item Range Normal Condition Diagnostic Note
      RR Door Courtesy SW Rear door courtesy light switch assembly (RH) ON or OFF ON: Rear door RH open
      OFF: Rear door RH closed      		 -
      RL Door Courtesy SW Rear door courtesy light switch assembly (LH) ON or OFF ON: Rear door LH open
      OFF: Rear door LH closed      		 -

      Body Electrical > Main Body > Data List

      Tester Display
      RR Door Courtesy SW
      RL Door Courtesy SW

      OK

      The Techstream display changes correctly in response to the rear door condition.

      Result

      Proceed to
      OK
      NG

    Result:  6

    NG

    GO TO LIGHTING SYSTEM:  HOW TO PROCEED WITH TROUBLESHOOTING [08/2016 - ]

    Result:  5

    OK

    See step  2

  2. CHECK REAR SEAT BELT WARNING
    1. Check the rear seat belt warning function.

      Refer to ON-VEHICLE INSPECTION [08/2017 - ]

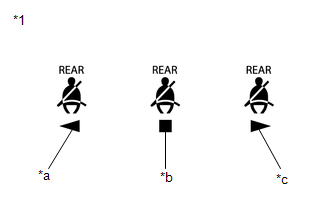

      GTY742310Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Rear Seat Belt Warning Light (Telltale light Assembly)
      *a LH
      *b Center
      *c RH

      Result

      Result Proceed to
      The rear seat belt warning lights operate normally A
      The rear seat belt warning lights (all seats) do not operate normally B
      The rear seat belt warning light (RH) does not operate normally C
      The rear seat belt warning light (center) does not operate normally D
      The rear seat belt warning light (LH) does not operate normally E

    Result:  1

    A

    USE SIMULATION METHOD TO CHECK. Refer to  HOW TO PROCEED WITH TROUBLESHOOTING [08/2017 - ]

    Result:  3

    C

    See step  6

    Result:  4

    D

    See step  10

    Result:  5

    E

    See step  14

    Result:  2

    B

    See step  3

  3. PERFORM ACTIVE TEST USING TECHSTREAM (REAR SEAT BELT WARNING LIGHT)
    1. Connect the Techstream to the DLC3.
    2. Turn the ignition switch to ON.
    3. Turn the Techstream on.
    4. Enter the following menus: Body Electrical / Combination Meter / Active Test.
    5. Perform the Active Test according to the display on the Techstream.

      Body Electrical > Combination Meter > Active Test

      Tester Display Measurement Item Control Range Diagnostic Note
      Rear Seat Belt Rear seat belt warning light OFF/ON -

      Body Electrical > Combination Meter > Active Test

      Tester Display
      Rear Seat Belt

      Result

      Result Proceed to
      The rear seat belt warning lights do not operate normally A
      The rear seat belt warning lights operate normally B

    Result:  2

    B

    REPLACE COMBINATION METER ASSEMBLY. Refer to  REMOVAL [08/2016 - ]

    Result:  1

    A

    See step  4

  4. CHECK HARNESS AND CONNECTOR (BATTERY - TELLTALE LIGHT ASSEMBLY)
    1. Disconnect the E84 telltale light assembly connector.
    2. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      E84-10 (IG+) - Body ground Ignition switch ON 11 to 14 V

      Result

      Proceed to
      OK
      NG

    Result:  2

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:  1

    OK

    See step  5

  5. CHECK HARNESS AND CONNECTOR (TELLTALE LIGHT ASSEMBLY - COMBINATION METER ASSEMBLY)
    1. Reconnect the E84 telltale light assembly connector.
    2. Disconnect the E43 and E47* combination meter assembly connectors.
      • *: for Multi-information Display (Color Type)
    3. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      FOR MULTI-INFORMATION DISPLAY (COLOR TYPE)

      Tester Connection Condition Specified Condition
      E47-8 (RLMT) - Body ground Ignition switch ON 11 to 14 V
      E43-2 (RCMT) - Body ground Ignition switch ON 11 to 14 V
      E43-3 (RRMT) - Body ground Ignition switch ON 11 to 14 V
      FOR MULTI-INFORMATION DISPLAY (SEGMENT LCD TYPE AND DOT LCD TYPE)

      Tester Connection Condition Specified Condition
      E43-25 (RLMT) - Body ground Ignition switch ON 11 to 14 V
      E43-26 (RCMT) - Body ground Ignition switch ON 11 to 14 V
      E43-27 (RRMT) - Body ground Ignition switch ON 11 to 14 V

      Result

      Proceed to
      OK
      NG

    Result:  1

    OK

    REPLACE COMBINATION METER ASSEMBLY. Refer to  REMOVAL [08/2016 - ]

    Result:  2

    NG

    REPLACE TELLTALE LIGHT ASSEMBLY. Refer to  REMOVAL [08/2017 - ]

  6. READ VALUE USING TECHSTREAM (2nd-Row Seatbelt Buckle (R))
    1. Connect the Techstream to the DLC3.
    2. Turn the ignition switch to ON.
    3. Turn the Techstream on.
    4. Enter the following menus: Body Electrical / Combination Meter / Data List.
    5. Read the Data List according to the display on the Techstream.

      Body Electrical > Combination Meter > Data List

      Tester Display Measurement Item Range Normal Condition Diagnostic Note
      2nd-Row Seatbelt Buckle (R) Rear RH seat belt buckle switch signal ON or OFF OFF: Rear RH seat belt fastened
      ON: Rear RH seat belt not fastened      		 -

      Body Electrical > Combination Meter > Data List

      Tester Display
      2nd-Row Seatbelt Buckle (R)

      Result

      Result Proceed to
      ON or OFF does not appear on the Techstream screen according to the rear seat belt condition A
      ON or OFF appears on the Techstream screen according to the rear seat belt condition B

    Result:  2

    B

    See step  8

    Result:  1

    A

    See step  7

  7. CHECK HARNESS AND CONNECTOR (COMBINATION METER ASSEMBLY - REAR SEAT INNER WITH CENTER BELT ASSEMBLY RH - BODY GROUND)
    1. Disconnect the E43 combination meter assembly connector.
    2. Disconnect the L57 rear seat inner with center belt assembly RH connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      FOR MULTI-INFORMATION DISPLAY (COLOR TYPE)

      Tester Connection Condition Specified Condition
      E43-26 (RRSB) - L57-1 (RBR+) Always Below 1 Ω
      E43-26 (RRSB) or L57-1 (RBR+) - Body ground Always 10 kΩ or higher
      L57-2 (RBR-) - Body ground Always Below 1 Ω
      FOR MULTI-INFORMATION DISPLAY (SEGMENT LCD TYPE AND DOT LCD TYPE)

      Tester Connection Condition Specified Condition
      E43-22 (RRSB) - L57-1 (RBR+) Always Below 1 Ω
      E43-22 (RRSB) or L57-1 (RBR+) - Body ground Always 10 kΩ or higher
      L57-2 (RBR-) - Body ground Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:  1

    OK

    REPLACE REAR SEAT INNER WITH CENTER BELT ASSEMBLY RH. Refer to  REMOVAL [08/2017 - ]

    Result:  2

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

  8. PERFORM ACTIVE TEST USING TECHSTREAM (REAR SEAT BELT WARNING LIGHT)
    1. Connect the Techstream to the DLC3.
    2. Turn the ignition switch to ON.
    3. Turn the Techstream on.
    4. Enter the following menus: Body Electrical / Combination Meter / Active Test.
    5. Perform the Active Test according to the display on the Techstream.

      Body Electrical > Combination Meter > Active Test

      Tester Display Measurement Item Control Range Diagnostic Note
      Rear Seat Belt Rear seat belt warning light OFF/ON -

      Body Electrical > Combination Meter > Active Test

      Tester Display
      Rear Seat Belt

      Result

      Result Proceed to
      The rear seat belt warning light does not operate normally A
      The rear seat belt warning light operates normally B

    Result:  2

    B

    REPLACE COMBINATION METER ASSEMBLY. Refer to  REMOVAL [08/2016 - ]

    Result:  1

    A

    See step  9

  9. CHECK HARNESS AND CONNECTOR (TELLTALE LIGHT ASSEMBLY - COMBINATION METER ASSEMBLY)
    1. Disconnect the E43 combination meter assembly connector.
    2. Disconnect the E84 telltale light assembly connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      FOR MULTI-INFORMATION DISPLAY (COLOR TYPE)

      Tester Connection Condition Specified Condition
      E43-3 (RRMT) - E84-3 (RRID) Always Below 1 Ω
      E43-3 (RRMT) or E84-3 (RRID) - Body ground Always 10 kΩ or higher
      FOR MULTI-INFORMATION DISPLAY (SEGMENT LCD TYPE AND DOT LCD TYPE)

      Tester Connection Condition Specified Condition
      E43-27 (RRMT) - E84-3 (RRID) Always Below 1 Ω
      E43-27 (RRMT) or E84-3 (RRID) - Body ground Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:  1

    OK

    REPLACE TELLTALE LIGHT ASSEMBLY. Refer to  REMOVAL [08/2017 - ]

    Result:  2

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

  10. READ VALUE USING TECHSTREAM (2nd-Row Seatbelt Buckle (C))
    1. Connect the Techstream to the DLC3.
    2. Turn the ignition switch to ON.
    3. Turn the Techstream on.
    4. Enter the following menus: Body Electrical / Combination Meter / Data List.
    5. Read the Data List according to the display on the Techstream.

      Body Electrical > Combination Meter > Data List

      Tester Display Measurement Item Range Normal Condition Diagnostic Note
      2nd-Row Seatbelt Buckle (C) Rear center seat belt buckle switch signal ON or OFF OFF: Rear center seat belt fastened
      ON: Rear center seat belt not fastened      		 -

      Body Electrical > Combination Meter > Data List

      Tester Display
      2nd-Row Seatbelt Buckle (C)

      Result

      Result Proceed to
      ON or OFF does not appear on the Techstream screen according to the rear seat belt condition A
      ON or OFF appears on the Techstream screen according to the rear seat belt condition B

    Result:  2

    B

    See step  12

    Result:  1

    A

    See step  11

  11. CHECK HARNESS AND CONNECTOR (COMBINATION METER ASSEMBLY - REAR SEAT INNER WITH CENTER BELT ASSEMBLY LH (FOR CENTER) - BODY GROUND)
    1. Disconnect the E43 combination meter assembly connector.
    2. Disconnect the L58 rear seat inner with center belt assembly LH connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      FOR MULTI-INFORMATION DISPLAY (COLOR TYPE)

      Tester Connection Condition Specified Condition
      E43-25 (RCSB) - L58-1 (CBR+) Always Below 1 Ω
      E43-25 (RCSB) or L58-1 (CBR+) - Body ground Always 10 kΩ or higher
      L58-2 (CBR-) - Body ground Always Below 1 Ω
      FOR MULTI-INFORMATION DISPLAY (SEGMENT LCD TYPE AND DOT LCD TYPE)

      Tester Connection Condition Specified Condition
      E43-23 (RCSB) - L58-1 (CBR+) Always Below 1 Ω
      E43-23 (RCSB) or L58-1 (CBR+) - Body ground Always 10 kΩ or higher
      L58-2 (CBR-) - Body ground Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:  1

    OK

    REPLACE REAR SEAT INNER WITH CENTER BELT ASSEMBLY LH. Refer to  REMOVAL [08/2017 - ]

    Result:  2

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

  12. PERFORM ACTIVE TEST USING TECHSTREAM (REAR SEAT BELT WARNING LIGHT)
    1. Connect the Techstream to the DLC3.
    2. Turn the ignition switch to ON.
    3. Turn the Techstream on.
    4. Enter the following menus: Body Electrical / Combination Meter / Active Test.
    5. Perform the Active Test according to the display on the Techstream.

      Body Electrical > Combination Meter > Active Test

      Tester Display Measurement Item Control Range Diagnostic Note
      Rear Seat Belt Rear seat belt warning light OFF/ON -

      Body Electrical > Combination Meter > Active Test

      Tester Display
      Rear Seat Belt

      Result

      Result Proceed to
      The rear seat belt warning light does not operate normally A
      The rear seat belt warning light operates normally B

    Result:  2

    B

    REPLACE COMBINATION METER ASSEMBLY. Refer to  REMOVAL [08/2016 - ]

    Result:  1

    A

    See step  13

  13. CHECK HARNESS AND CONNECTOR (TELLTALE LIGHT ASSEMBLY - COMBINATION METER ASSEMBLY)
    1. Disconnect the E43 combination meter assembly connector.
    2. Disconnect the E84 telltale light assembly connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      FOR MULTI-INFORMATION DISPLAY (COLOR TYPE)

      Tester Connection Condition Specified Condition
      E43-2 (RCMT) - E84-2 (RCID) Always Below 1 Ω
      E43-2 (RCMT) or E84-2 (RCID) - Body ground Always 10 kΩ or higher
      FOR MULTI-INFORMATION DISPLAY (SEGMENT LCD TYPE AND DOT LCD TYPE)

      Tester Connection Condition Specified Condition
      E43-26 (RCMT) - E84-2 (RCID) Always Below 1 Ω
      E43-26 (RCMT) or E84-2 (RCID) - Body ground Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:  1

    OK

    REPLACE TELLTALE LIGHT ASSEMBLY. Refer to  REMOVAL [08/2017 - ]

    Result:  2

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

  14. READ VALUE USING TECHSTREAM (2nd-Row Seatbelt Buckle (L))
    1. Connect the Techstream to the DLC3.
    2. Turn the ignition switch to ON.
    3. Turn the Techstream on.
    4. Enter the following menus: Body Electrical / Combination Meter / Data List.
    5. Read the Data List according to the display on the Techstream.

      Body Electrical > Combination Meter > Data List

      Tester Display Measurement Item Range Normal Condition Diagnostic Note
      2nd-Row Seatbelt Buckle (L) Rear LH seat belt buckle switch signal ON or OFF OFF: Rear LH seat belt fastened
      ON: Rear LH seat belt not fastened      		 -

      Body Electrical > Combination Meter > Data List

      Tester Display
      2nd-Row Seatbelt Buckle (L)

      Result

      Result Proceed to
      ON or OFF does not appear on the Techstream screen according to the rear seat belt condition A
      ON or OFF appears on the Techstream screen according to the rear seat belt condition B

    Result:  2

    B

    See step  16

    Result:  1

    A

    See step  15

  15. CHECK HARNESS AND CONNECTOR (COMBINATION METER ASSEMBLY - REAR SEAT INNER WITH CENTER BELT ASSEMBLY LH (FOR LH) - BODY GROUND)
    1. Disconnect the E43 combination meter assembly connector.
    2. Disconnect the L58 rear seat inner with center belt assembly LH connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      E43-24 (RLSB) - L58-3 (LBR+) Always Below 1 Ω
      E43-24 (RLSB) or L58-3 (LBR+) - Body ground Always 10 kΩ or higher
      L58-4 (LBR-) - Body ground Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:  1

    OK

    REPLACE REAR SEAT INNER WITH CENTER BELT ASSEMBLY LH. Refer to  REMOVAL [08/2017 - ]

    Result:  2

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

  16. PERFORM ACTIVE TEST USING TECHSTREAM (REAR SEAT BELT WARNING LIGHT)
    1. Connect the Techstream to the DLC3.
    2. Turn the ignition switch to ON.
    3. Turn the Techstream on.
    4. Enter the following menus: Body Electrical / Combination Meter / Active Test.
    5. Perform the Active Test according to the display on the Techstream.

      Body Electrical > Combination Meter > Active Test

      Tester Display Measurement Item Control Range Diagnostic Note
      Rear Seat Belt Rear seat belt warning light OFF/ON -

      Body Electrical > Combination Meter > Active Test

      Tester Display
      Rear Seat Belt

      Result

      Result Proceed to
      The rear seat belt warning light does not operate normally A
      The rear seat belt warning light operates normally B

    Result:  2

    B

    REPLACE COMBINATION METER ASSEMBLY. Refer to  REMOVAL [08/2016 - ]

    Result:  1

    A

    See step  17

  17. CHECK HARNESS AND CONNECTOR (TELLTALE LIGHT ASSEMBLY - COMBINATION METER ASSEMBLY)
    1. Disconnect the E47*1 or E43*2 combination meter assembly connector.
      • *1: for Multi-information Display (Color Type)
      • *2: for Multi-information Display (Segment LCD Type and Dot LCD Type)
    2. Disconnect the E84 telltale light assembly connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      FOR MULTI-INFORMATION DISPLAY (COLOR TYPE)

      Tester Connection Condition Specified Condition
      E47-8 (RLMT) - E84-1 (RLID) Always Below 1 Ω
      E47-8 (RLMT) or E84-1 (RLID) - Body ground Always 10 kΩ or higher
      FOR MULTI-INFORMATION DISPLAY (SEGMENT LCD TYPE AND DOT LCD TYPE)

      Tester Connection Condition Specified Condition
      E43-25 (RLMT) - E84-1 (RLID) Always Below 1 Ω
      E43-25 (RLMT) or E84-1 (RLID) - Body ground Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:  1

    OK

    REPLACE TELLTALE LIGHT ASSEMBLY. Refer to  REMOVAL [08/2017 - ]

    Result:  2

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

scientia non olet · About LEMON Manuals
