Diagnosis System [08/2013 - ]

  1. CHECK DLC3
    1. Check the DLC3.

      Refer to GENERAL INFORMATION [08/2013 - ]

  2. CHECK WARNING LIGHT
    1. When a problem occurs in the power steering system, the EPS warning light on the combination meter assembly comes on to inform the driver of the problem.

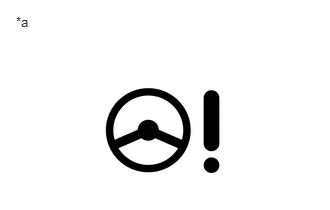

      GTY445199Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a EPS Warning Light
