DTC B2788: IG2 Signal Malfunction [08/2013 - ]: Procedure
- INSPECT STEERING LOCK ECU (STEERING LOCK ACTUATOR ASSEMBLY) (POWER SOURCE MODE SIGNAL)
- Make sure that there is no looseness at the locking part and the connecting part of the connector.
- Disconnect the E61 steering lock ECU (steering lock actuator assembly) connector.
- Measure the resistance according to the value(s) in the table below.

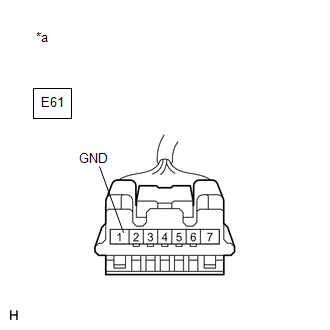

*a Front view of wire harness connector
(to Steering Lock ECU (Steering Lock Actuator Assembly))Standard Resistance
Tester Connection Condition Specified Condition E61-1 (GND) - Body ground Always Below 1 Ω - Reconnect the E61 steering lock ECU (steering lock actuator assembly) connector.
- Measure the voltage according to the value(s) in the table below.

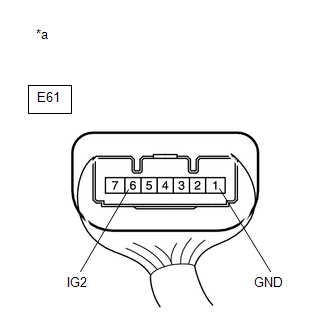

*a Component with harness connected
(Steering Lock ECU (Steering Lock Actuator Assembly))Standard Voltage
Tester Connection Condition Specified Condition E61-6 (IG2) - E61-1 (GND) Engine switch on (IG) 11 to 14 V E61-6 (IG2) - E61-1 (GND) Engine switch off Below 1 V Result
Proceed to OK NG
Result: 1
OK
REPLACE STEERING LOCK ACTUATOR ASSEMBLY. Refer to DISASSEMBLY [08/2013 - ]
Result: 2
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
