Parts Location [08/2016 - ]: Illustration

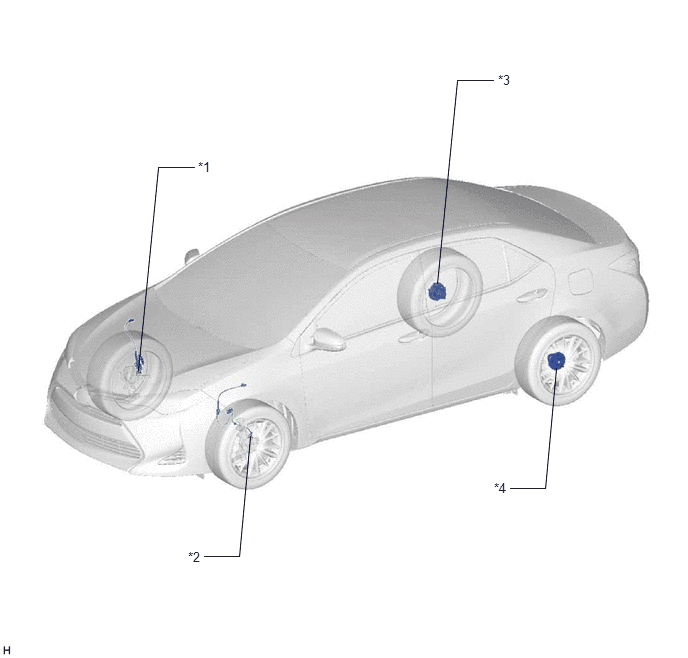

Fig 1: Lane Departure Alert System (W/ Steering Control) Component Locations (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	FRONT SPEED SENSOR RH	*2	FRONT SPEED SENSOR LH
*3	REAR AXLE HUB AND BEARING ASSEMBLY RH - REAR SPEED SENSOR RH	*4	REAR AXLE HUB AND BEARING ASSEMBLY LH - REAR SPEED SENSOR LH

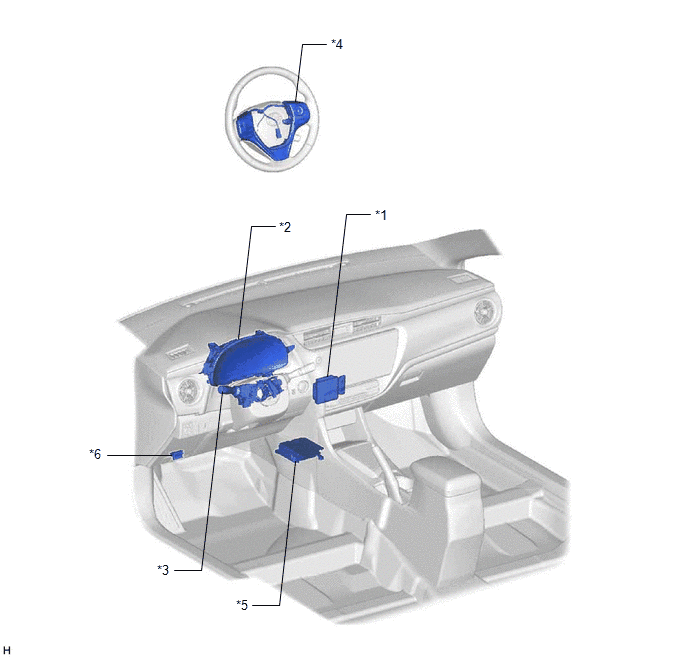

Fig 1: Lane Departure Alert System (W/ Steering Control) Component Locations (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	FORWARD RECOGNITION CAMERA	*2	MILLIMETER WAVE RADAR SENSOR ASSEMBLY
*3	BRAKE ACTUATOR ASSEMBLY - SKID CONTROL ECU	*4	ECM

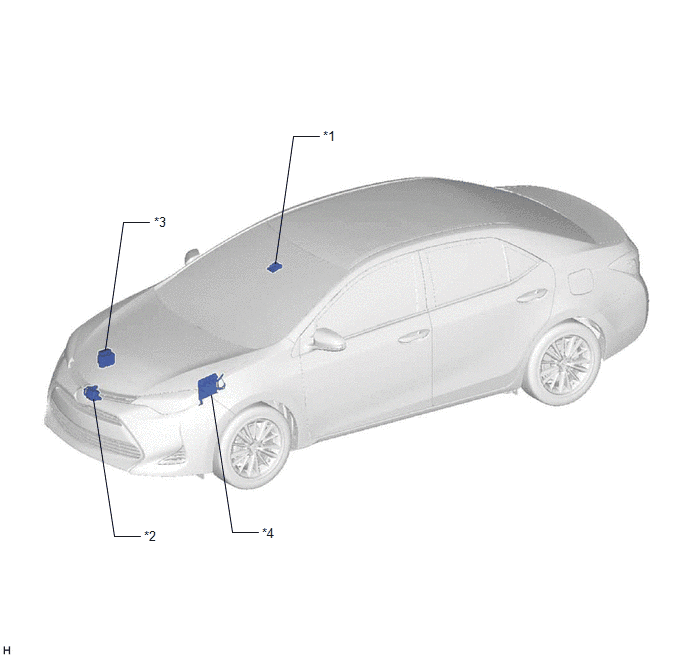

Fig 1: Lane Departure Alert System (W/ Steering Control) Component Locations (3 Of 4)

*1	DRIVING SUPPORT ECU ASSEMBLY	*2	COMBINATION METER ASSEMBLY - MULTI-INFORMATION DISPLAY - LANE DEPARTURE ALERT INDICATOR - LANE DEPARTURE ALERT BUZZER
*3	HEADLIGHT DIMMER SWITCH ASSEMBLY - TURN SIGNAL SWITCH	*4	STEERING PAD SWITCH ASSEMBLY - LANE DEPARTURE ALERT MAIN SWITCH - FUNCTION SWITCH (CUSTOMIZE SWITCH)
*5	AIRBAG SENSOR ASSEMBLY - YAW RATE SENSOR - G SENSOR	*6	DLC3

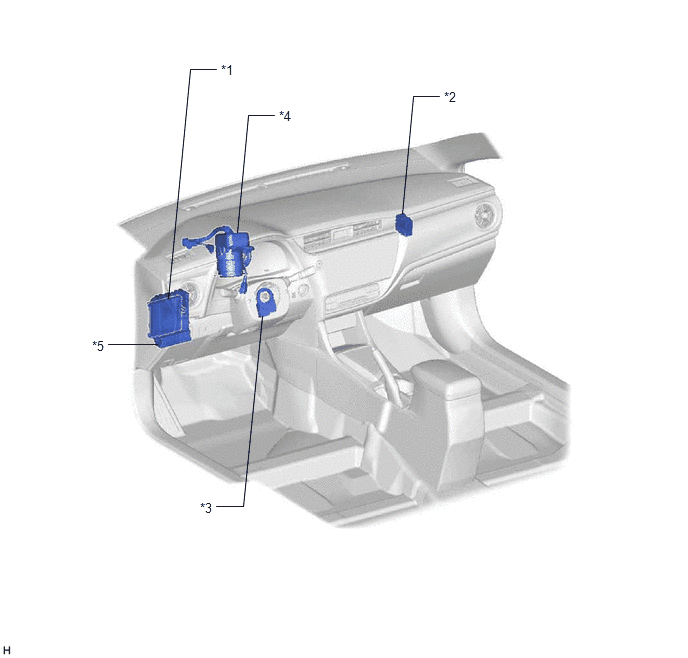

Fig 1: Lane Departure Alert System (W/ Steering Control) Component Locations (4 Of 4)

*1	MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)	*2	CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)
*3	STEERING SENSOR	*4	POWER STEERING ECU ASSEMBLY
*5	DRIVER SIDE JUNCTION BLOCK ASSEMBLY - ECU-IG NO. 3 FUSE	-	-
