Terminals Of Ecu [08/2016 - 08/2017]
NOTE:
- After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.
Refer to PRECAUTION [08/2016 - ]
- Turn the ignition switch off before measuring the resistances between CAN main bus lines and between CAN branch lines.
- Turn the ignition switch off before inspecting CAN bus lines for a ground short.
- Before measuring the resistance of the CAN bus, turn the ignition switch off and leave the vehicle for 1 minute or more without operating the key or any switches, or opening or closing the doors. After that, disconnect the cable from the negative (-) battery terminal and leave the vehicle for 1 minute or more before measuring the resistance.
- This section describes the standard values for all CAN related components.
HINT:
- Operating the ignition switch, any other switches or a door triggers related ECU and sensor communication on the CAN. This communication will cause the resistance value to change.
- Even after DTCs are cleared, if a DTC is stored again after driving the vehicle for a while, the malfunction may be occurring due to vibration of the vehicle. In such a case, wiggling the ECUs or wire harness while performing the inspection below may help determine the cause of the malfunction.
- NO. 2 CAN JUNCTION CONNECTOR
- Check the No. 2 CAN junction connector.
- Connection diagram

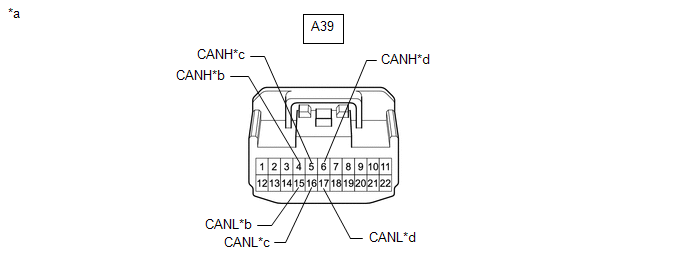

*a Front view of wire harness connector
(to No. 2 CAN Junction Connector)*b to No. 3 CAN Junction Connector *c to Skid Control ECU (Brake Actuator Assembly) *d to ECM - Check the connection diagram of the components which are connected to the No. 2 CAN junction connector.
Terminal No. (Symbol) Wiring Color Connected to A39-4 (CANH) L No. 3 CAN junction connector A39-15 (CANL) W A39-5 (CANH) V Skid control ECU (brake actuator assembly) A39-16 (CANL) W A39-6 (CANH) B ECM A39-17 (CANL) W
- Connection diagram
- Check the No. 2 CAN junction connector.
- NO. 3 CAN JUNCTION CONNECTOR
- Check the No. 3 CAN junction connector.
- Connection diagram

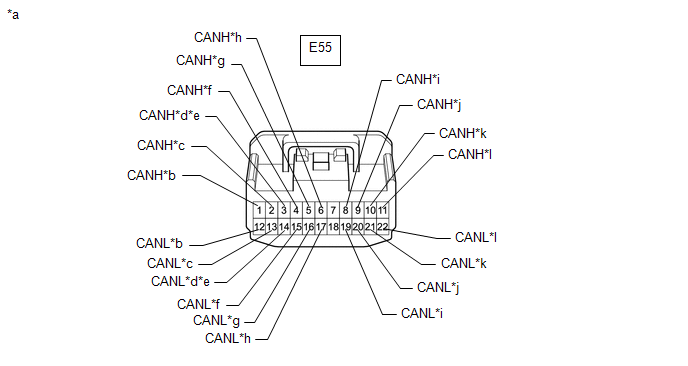

*a Front view of wire harness connector
(to No. 3 CAN Junction Connector)*b to No. 2 CAN Junction Connector *c to Air Conditioning Amplifier Assembly *d to Navigation Receiver Assembly
(for Navigation Receiver Type)*e to Radio and Display Receiver Assembly
(for Radio and Display Type)*f to Combination Meter Assembly *g to Airbag Sensor Assembly *h to Certification ECU (Smart Key ECU Assembly)
(w/ Smart Key System)*i to Main Body ECU (Multiplex Network Body ECU) *j to Power Steering ECU Assembly *k to Steering Sensor
(w/ VSC)*l to DLC3 - Check the connection diagram of the components which are connected to the No. 3 CAN junction connector.
Terminal No. (Symbol) Wiring Color Connected to E55-1 (CANH) L No. 2 CAN junction connector E55-12 (CANL) W E55-2 (CANH) Y Air conditioning amplifier assembly E55-13 (CANL) W E55-3 (CANH) G Navigation receiver assembly*1 E55-14 (CANL) W E55-3 (CANH) G Radio and display receiver assembly*2 E55-14 (CANL) W E55-4 (CANH) LG Combination meter assembly E55-15 (CANL) W E55-5 (CANH) V Airbag sensor assembly E55-16 (CANL) W E55-6 (CANH) P Certification ECU (smart key ECU assembly)*3 E55-17 (CANL) W E55-8 (CANH) B Main body ECU (multiplex network body ECU) E55-19 (CANL) W E55-9 (CANH) GR Power steering ECU assembly E55-20 (CANL) W E55-10 (CANH) SB Steering sensor*4 E55-21 (CANL) W E55-11 (CANH) R DLC3 E55-22 (CANL) W - *1: for Navigation Receiver Type
- *2: for Radio and Display Type
- *3: w/ Smart Key System
- *4: w/ VSC
- Connection diagram
- Check the No. 3 CAN junction connector.
- DLC3
- Disconnect the cable from the negative (-) battery terminal.
- Measure the resistance according to the value(s) in the table below.

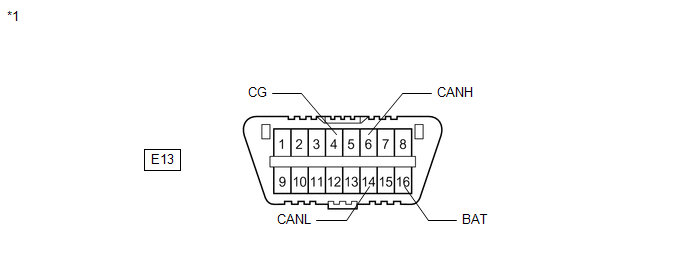

*1 DLC3 - - Standard Resistance
Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition E13-6 (CANH) - E13-14 (CANL) R - W HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) battery terminal 54 to 69 Ω E13-6 (CANH) - E13-4 (CG) R - W-B HIGH-level CAN bus line - Ground Cable disconnected from negative (-) battery terminal 200 Ω or higher E13-14 (CANL) - E13-4 (CG) W - W-B LOW-level CAN bus line - Ground Cable disconnected from negative (-) battery terminal 200 Ω or higher E13-6 (CANH) - E13-16 (BAT) R - G HIGH-level CAN bus line - Battery positive (+) Cable disconnected from negative (-) battery terminal 6 kΩ or higher E13-14 (CANL) - E13-16 (BAT) W - G LOW-level CAN bus line - Battery positive (+) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
- ECM
*a Component without harness connected
(ECM)- - - Disconnect the cable from the negative (-) battery terminal.
- Disconnect the A40 and B33 ECM connectors.

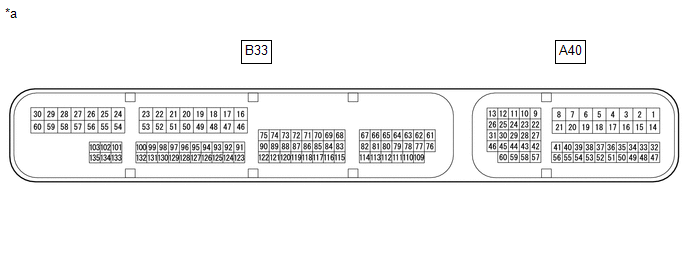

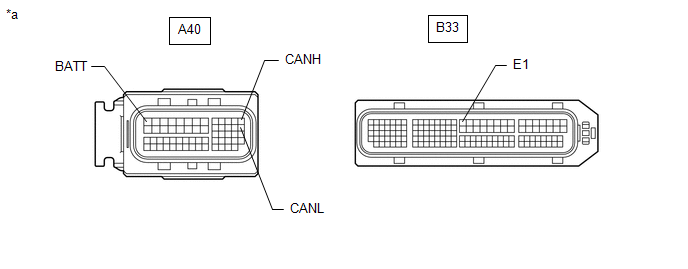

*a Front view of wire harness connector
(to ECM)- - - Measure the resistance according to the value(s) in the table below.
Standard Resistance
Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition A40-13 (CANH) - A40-26 (CANL) B - W HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) battery terminal 108 to 132 Ω A40-13 (CANH) - B33-16 (E1) B - BR HIGH-level CAN bus line - Ground Cable disconnected from negative (-) battery terminal 200 Ω or higher A40-26 (CANL) - B33-16 (E1) W - BR LOW-level CAN bus line - Ground Cable disconnected from negative (-) battery terminal 200 Ω or higher A40-13 (CANH) - A40-1 (BATT) B - B HIGH-level CAN bus line - Battery positive (+) Cable disconnected from negative (-) battery terminal 6 kΩ or higher A40-26 (CANL) - A40-1 (BATT) W - B LOW-level CAN bus line - Battery positive (+) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
- COMBINATION METER ASSEMBLY
*a Component without harness connected
(Combination Meter Assembly)- - - Disconnect the cable from the negative (-) battery terminal.
- Disconnect the E43 combination meter assembly connector.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

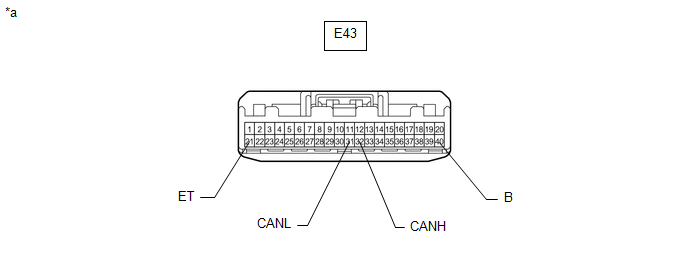

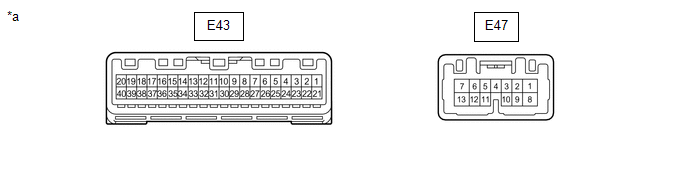

*a Front view of wire harness connector
(to Combination Meter Assembly)- - - Measure the resistance according to the value(s) in the table below.
Standard Resistance
Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition E43-32 (CANH) - E43-31 (CANL) LG - W HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) battery terminal 108 to 132 Ω E43-32 (CANH) - E43-21 (ET) LG - BR HIGH-level CAN bus line - Ground Cable disconnected from negative (-) battery terminal 200 Ω or higher E43-31 (CANL) - E43-21 (ET) W - BR LOW-level CAN bus line - Ground Cable disconnected from negative (-) battery terminal 200 Ω or higher E43-32 (CANH) - E43-40 (B) LG - W HIGH-level CAN bus line - Battery positive (+) Cable disconnected from negative (-) battery terminal 6 kΩ or higher E43-31 (CANL) - E43-40 (B) W - W LOW-level CAN bus line - Battery positive (+) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
- DRIVER SIDE JUNCTION BLOCK ASSEMBLY AND MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

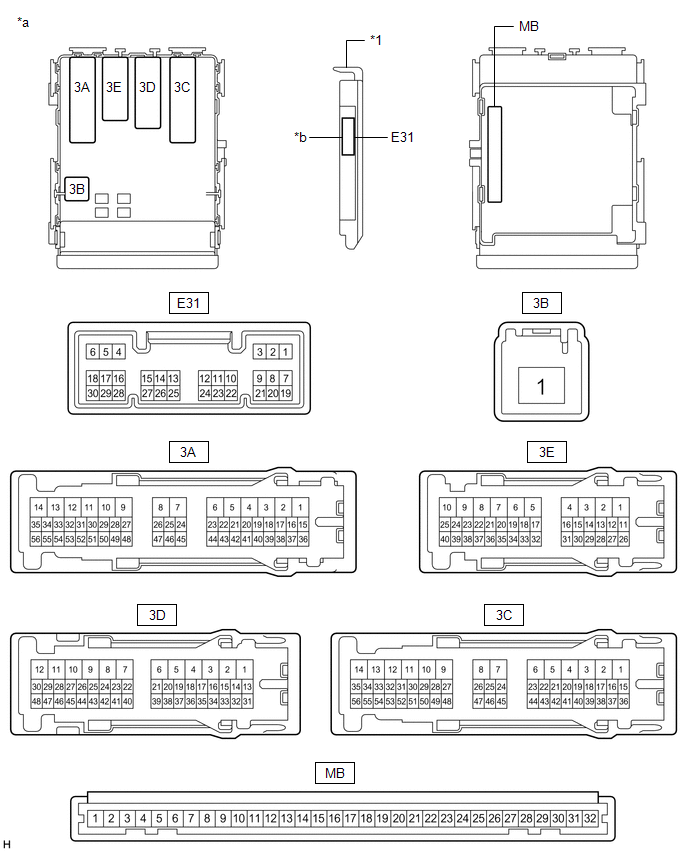

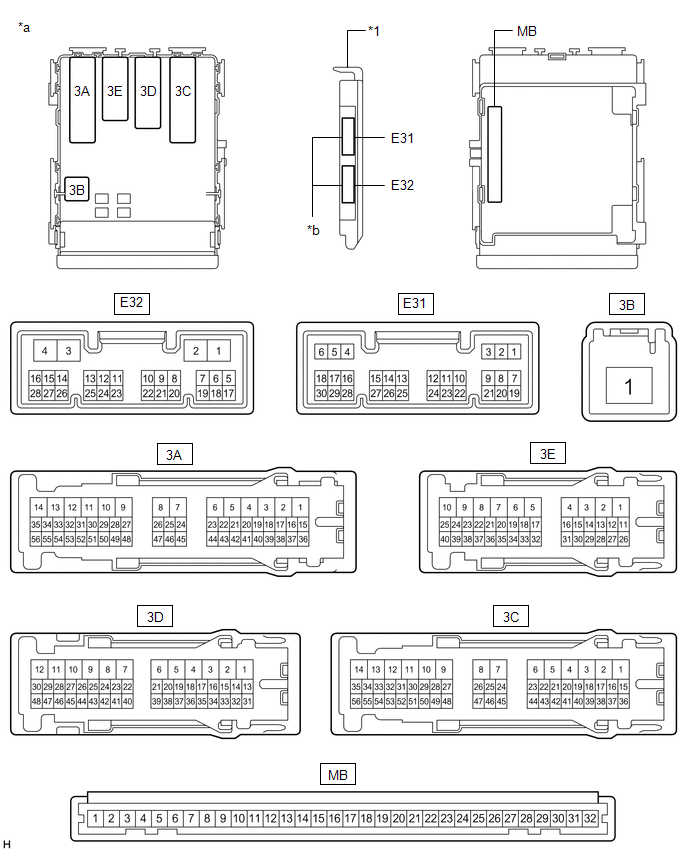

*1 Main Body ECU (Multiplex Network Body ECU) with 1 Connector - - *a Component without harness connected
(Driver Side Junction Block Assembly and Main Body ECU (Multiplex Network Body ECU))*b 1 connector Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 Main Body ECU (Multiplex Network Body ECU) with 2 Connectors - - *a Component without harness connected
(Driver Side Junction Block Assembly and Main Body ECU (Multiplex Network Body ECU))*b 2 Connectors - Disconnect the cable from the negative (-) battery terminal.
- Disconnect the E31 main body ECU (multiplex network body ECU) connector.Fig 10: Main Body ECU (Multiplex Network Body ECU) Connector End View E31 (Front View) & DLC3 Connector End View E13
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

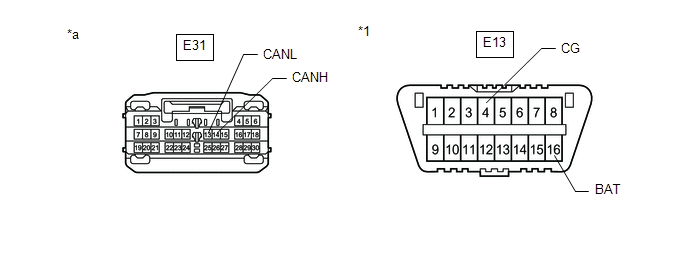

*1 DLC3 - - *a Front view of wire harness connector
(to Main Body ECU (Multiplex Network Body ECU))- - - Measure the resistance according to the value(s) in the table below.
Standard Resistance
Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition E31-14 (CANH) - E31-13 (CANL) B - W HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) battery terminal 54 to 69 Ω E31-14 (CANH) - E13-4 (CG) B - W-B HIGH-level CAN bus line - Ground Cable disconnected from negative (-) battery terminal 200 Ω or higher E31-13 (CANL) - E13-4 (CG) W - W-B LOW-level CAN bus line - Ground Cable disconnected from negative (-) battery terminal 200 Ω or higher E31-14 (CANH) - E13-16 (BAT) B - G HIGH-level CAN bus line - Battery positive (+) Cable disconnected from negative (-) battery terminal 6 kΩ or higher E31-13 (CANL) - E13-16 (BAT) W - G LOW-level CAN bus line - Battery positive (+) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
- SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY) (w/o VSC)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*a Component without harness connected
(Skid Control ECU (Brake Actuator Assembly))- - - Disconnect the cable from the negative (-) battery terminal.
- Disconnect the A42 skid control ECU (brake actuator assembly) connector.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

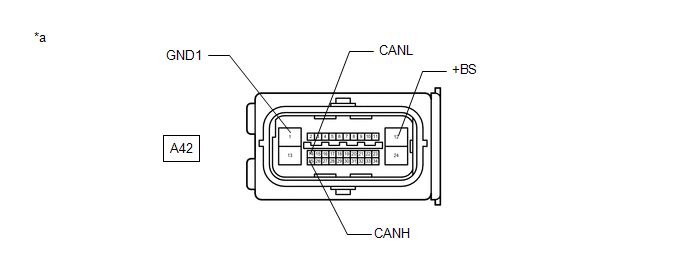

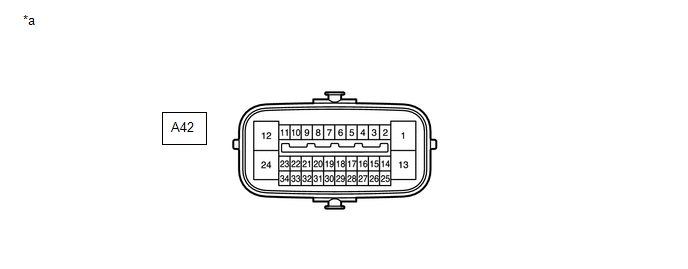

*a Front view of wire harness connector
(to Skid Control ECU (Brake Actuator Assembly))- - - Measure the resistance according to the value(s) in the table below.
Standard Resistance
Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition A42-25 (CANH) - A42-14 (CANL) V - W HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) battery terminal 54 to 69 Ω A42-25 (CANH) - A42-1 (GND1) V - W-B HIGH-level CAN bus line - Ground Cable disconnected from negative (-) battery terminal 200 Ω or higher A42-14 (CANL) - A42-1 (GND1) W - W-B LOW-level CAN bus line - Ground Cable disconnected from negative (-) battery terminal 200 Ω or higher A42-25 (CANH) - A42-12 (+BS) V - W HIGH-level CAN bus line - Battery positive (+) Cable disconnected from negative (-) battery terminal 6 kΩ or higher A42-14 (CANL) - A42-12 (+BS) W - W LOW-level CAN bus line - Battery positive (+) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
- SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY) (w/ VSC)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*a Component without harness connected
(Skid Control ECU (Brake Actuator Assembly))- - - Disconnect the cable from the negative (-) battery terminal.
- Disconnect the A43 skid control ECU (brake actuator assembly) connector.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

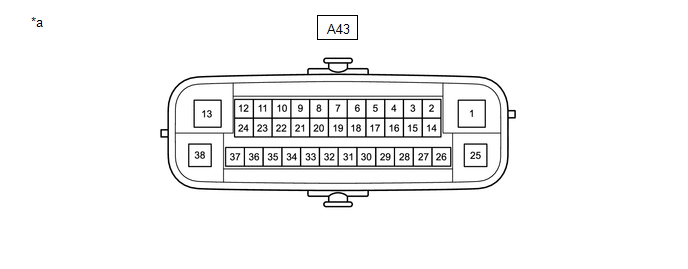

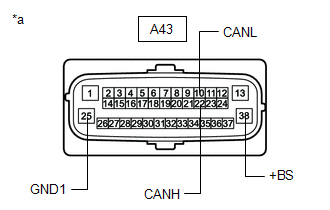

*a Front view of wire harness connector
(to Skid Control ECU (Brake Actuator Assembly)) - Measure the resistance according to the value(s) in the table below.
Standard Resistance
Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition A43-22 (CANH) - A43-10 (CANL) V - W HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) battery terminal 54 to 69 Ω A43-22 (CANH) - A43-25 (GND1) V - W-B HIGH-level CAN bus line - Ground Cable disconnected from negative (-) battery terminal 200 Ω or higher A43-10 (CANL) - A43-25 (GND1) W - W-B LOW-level CAN bus line - Ground Cable disconnected from negative (-) battery terminal 200 Ω or higher A43-22 (CANH) - A43-38 (+BS) V - W HIGH-level CAN bus line - Battery positive (+) Cable disconnected from negative (-) battery terminal 6 kΩ or higher A43-10 (CANL) - A43-38 (+BS) W - W LOW-level CAN bus line - Battery positive (+) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
- STEERING SENSOR (w/ VSC)
*a Component without harness connected
(Steering Sensor)- - - Disconnect the cable from the negative (-) battery terminal.

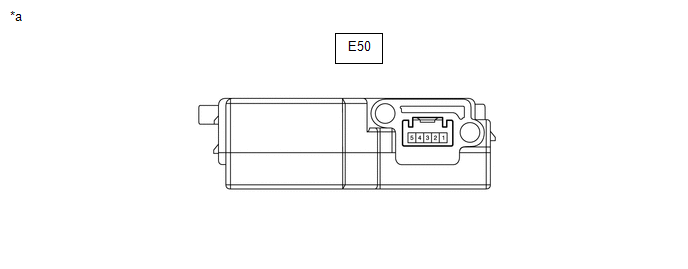

- Disconnect the E50 steering sensor connector.

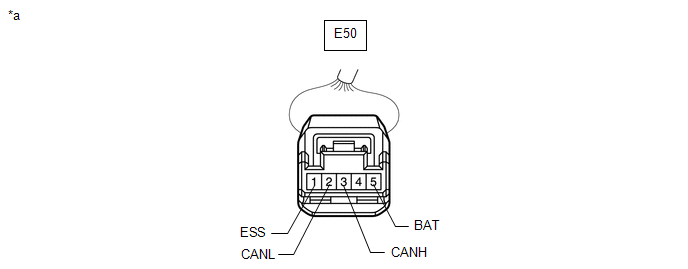

*a Front view of wire harness connector
(to Steering Sensor)- - - Measure the resistance according to the value(s) in the table below.
Standard Resistance
Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition E50-3 (CANH) - E50-2 (CANL) SB - W HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) battery terminal 54 to 69 Ω E50-3 (CANH) - E50-1 (ESS) SB - BR HIGH-level CAN bus line - Ground Cable disconnected from negative (-) battery terminal 200 Ω or higher E50-2 (CANL) - E50-1 (ESS) W - BR LOW-level CAN bus line - Ground Cable disconnected from negative (-) battery terminal 200 Ω or higher E50-3 (CANH) - E50-5 (BAT) SB - GR HIGH-level CAN bus line - Battery positive (+) Cable disconnected from negative (-) battery terminal 6 kΩ or higher E50-2 (CANL) - E50-5 (BAT) W - GR LOW-level CAN bus line - Battery positive (+) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
- POWER STEERING ECU ASSEMBLY
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*a Component without harness connected
(Power Steering ECU Assembly)- - - Disconnect the cable from the negative (-) battery terminal.
- Disconnect the A25 and E40 power steering ECU assembly connectors.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

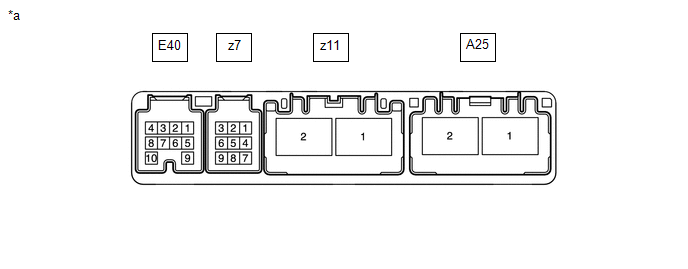

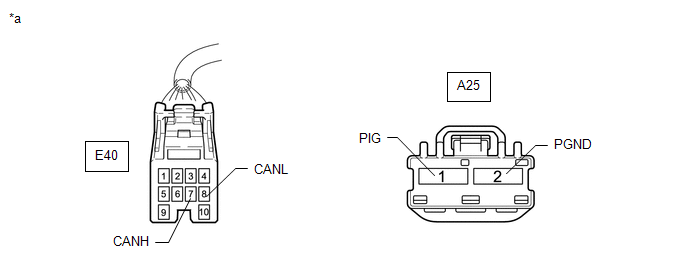

*a Front view of wire harness connector
(to Power Steering ECU Assembly)- - - Measure the resistance according to the value(s) in the table below.
Standard Resistance
Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition E40-7 (CANH) - E40-8 (CANL) GR - W HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) battery terminal 54 to 69 Ω E40-7 (CANH) - A25-2 (PGND) GR - W-B HIGH-level CAN bus line - Ground Cable disconnected from negative (-) battery terminal 200 Ω or higher E40-8 (CANL) - A25-2 (PGND) W - W-B LOW-level CAN bus line - Ground Cable disconnected from negative (-) battery terminal 200 Ω or higher E40-7 (CANH) - A25-1 (PIG) GR - L HIGH-level CAN bus line - Battery positive (+) Cable disconnected from negative (-) battery terminal 6 kΩ or higher E40-8 (CANL) - A25-1 (PIG) W - L LOW-level CAN bus line - Battery positive (+) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
- AIRBAG SENSOR ASSEMBLY
*a Component without harness connected
(Airbag Sensor Assembly)- - - Disconnect the cable from the negative (-) battery terminal.
- Disconnect the E14 airbag sensor assembly connector.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

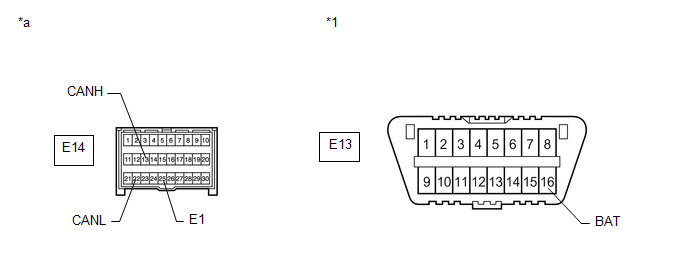

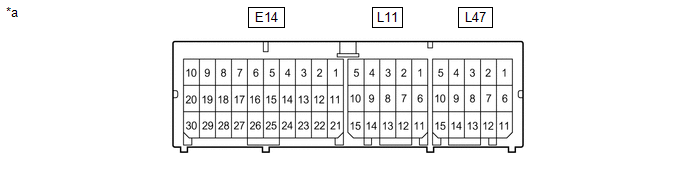

*1 DLC3 - - *a Front view of wire harness connector
(to Airbag Sensor Assembly)- - - Measure the resistance according to the value(s) in the table below.
Standard Resistance
Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition E14-13 (CANH) - E14-22 (CANL) V - W HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) battery terminal 54 to 69 Ω E14-13 (CANH) - E14-25 (E1) V - W-B HIGH-level CAN bus line - Ground Cable disconnected from negative (-) battery terminal 200 Ω or higher E14-22 (CANL) - E14-25 (E1) W - W-B LOW-level CAN bus line - Ground Cable disconnected from negative (-) battery terminal 200 Ω or higher E14-13 (CANH) - E13-16 (BAT) V - G HIGH-level CAN bus line - Battery positive (+) Cable disconnected from negative (-) battery terminal 6 kΩ or higher E14-22 (CANL) - E13-16 (BAT) W - G LOW-level CAN bus line - Battery positive (+) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
- CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) (w/ Smart Key System)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

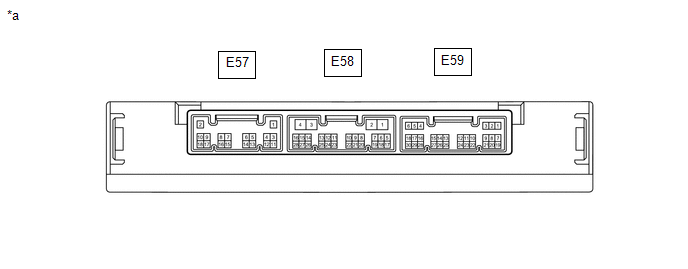

*a Component without harness connected
(Certification ECU (Smart Key ECU Assembly))- - - Disconnect the cable from the negative (-) battery terminal.
- Disconnect the E57 and E59 certification ECU (smart key ECU assembly) connectors.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

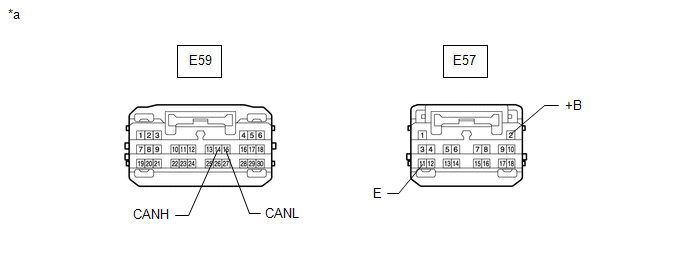

*a Front view of wire harness connector
(to Certification ECU (Smart Key ECU Assembly))- - - Measure the resistance according to the value(s) in the table below.
Standard Resistance
Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition E59-14 (CANH) - E59-15 (CANL) P - W HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) battery terminal 54 to 69 Ω E59-14 (CANH) - E57-11 (E) P- W-B HIGH-level CAN bus line - Ground Cable disconnected from negative (-) battery terminal 200 Ω or higher E59-15 (CANL) - E57-11 (E) W - W-B LOW-level CAN bus line - Ground Cable disconnected from negative (-) battery terminal 200 Ω or higher E59-14 (CANH) - E57-2 (+B) P - L HIGH-level CAN bus line - Battery positive (+) Cable disconnected from negative (-) battery terminal 6 kΩ or higher E59-15 (CANL) - E57-2 (+B) W - L LOW-level CAN bus line - Battery positive (+) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
- NAVIGATION RECEIVER ASSEMBLY (for Navigation Receiver Type)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*a Component without harness connected
(Navigation Receiver Assembly)- - - Disconnect the cable from the negative (-) battery terminal.
- Disconnect the E65 and E67 navigation receiver assembly connectors.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

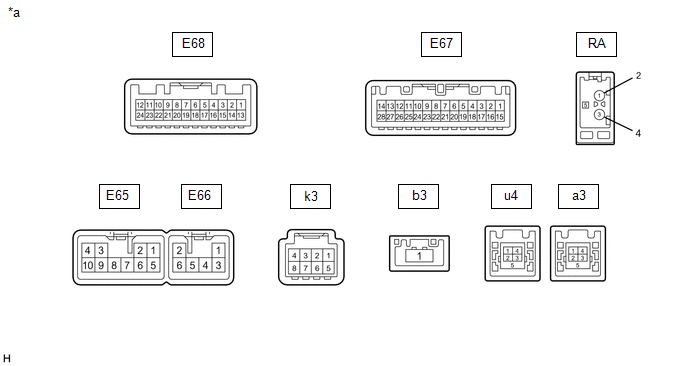

*a Front view of wire harness connector
(to Navigation Receiver Assembly)- - - Measure the resistance according to the value(s) in the table below.
Standard Resistance
Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition E67-9 (CANH) - E67-10 (CANL) G - W HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) battery terminal 54 to 69 Ω E67-9 (CANH) - E65-7 (GND1) G - BR HIGH-level CAN bus line - Ground Cable disconnected from negative (-) battery terminal 200 Ω or higher E67-10 (CANL) - E65-7 (GND1) W - BR LOW-level CAN bus line - Ground Cable disconnected from negative (-) battery terminal 200 Ω or higher E67-9 (CANH) - E65-4 (+B1) G - SB HIGH-level CAN bus line - Battery positive (+) Cable disconnected from negative (-) battery terminal 6 kΩ or higher E67-10 (CANL) - E65-4 (+B1) W - SB LOW-level CAN bus line - Battery positive (+) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
- RADIO AND DISPLAY RECEIVER ASSEMBLY (for Radio and Display Type)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*a Component without harness connected
(Radio and Display Receiver Assembly)- - - Disconnect the cable from the negative (-) battery terminal.
- Disconnect the E1 and E29 radio and display receiver assembly connectors.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

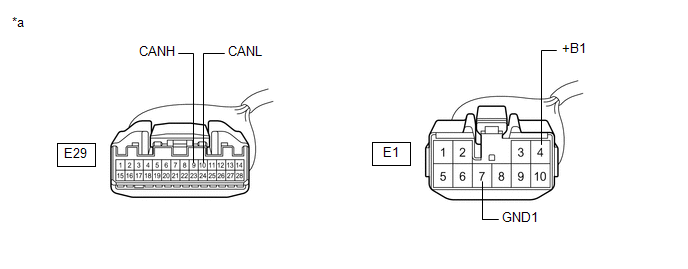

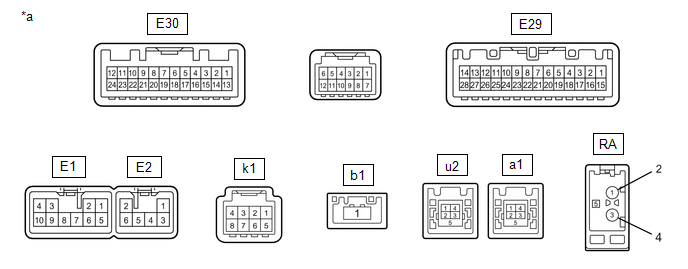

*a Front view of wire harness connector
(to Radio and Display Receiver Assembly)- - - Measure the resistance according to the value(s) in the table below.
Standard Resistance
Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition E29-9 (CANH) - E29-10 (CANL) G - W HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) battery terminal 54 to 69 Ω E29-9 (CANH) - E1-7 (GND1) G - BR HIGH-level CAN bus line - Ground Cable disconnected from negative (-) battery terminal 200 Ω or higher E29-10 (CANL) - E1-7 (GND1) W - BR LOW-level CAN bus line - Ground Cable disconnected from negative (-) battery terminal 200 Ω or higher E29-9 (CANH) - E1-4 (+B1) G - SB HIGH-level CAN bus line - Battery positive (+) Cable disconnected from negative (-) battery terminal 6 kΩ or higher E29-10 (CANL) - E1-4 (+B1) W - SB LOW-level CAN bus line - Battery positive (+) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
- AIR CONDITIONING AMPLIFIER ASSEMBLY (for Automatic Air Conditioning System)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*a Component without harness connected
(Air Conditioning Amplifier Assembly)- - - Disconnect the cable from the negative (-) battery terminal.
- Disconnect the E37 air conditioning amplifier assembly connector.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

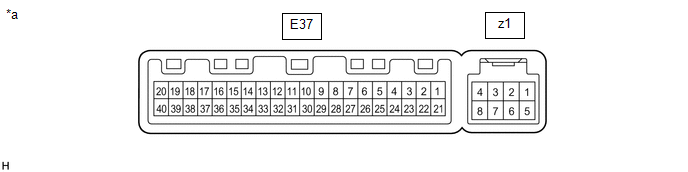

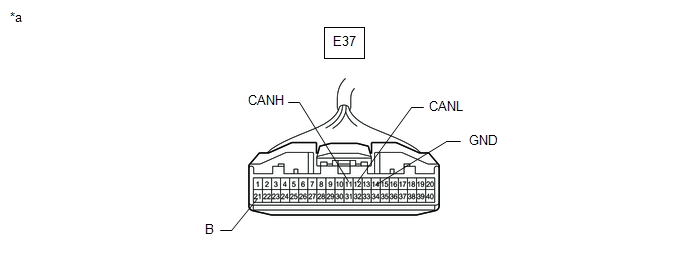

*a Front view of wire harness connector
(to Air Conditioning Amplifier Assembly)- - - Measure the resistance according to the value(s) in the table below.
Standard Resistance
Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition E37-11 (CANH) - E37-12 (CANL) Y - W HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) battery terminal 54 to 69 Ω E37-11 (CANH) - E37-14 (GND) Y - BR HIGH-level CAN bus line - Ground Cable disconnected from negative (-) battery terminal 200 Ω or higher E37-12 (CANL) - E37-14 (GND) W - BR LOW-level CAN bus line - Ground Cable disconnected from negative (-) battery terminal 200 Ω or higher E37-11 (CANH) - E37-21 (B) Y - W HIGH-level CAN bus line - Battery positive (+) Cable disconnected from negative (-) battery terminal 6 kΩ or higher E37-12 (CANL) - E37-21 (B) W - W LOW-level CAN bus line - Battery positive (+) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
- AIR CONDITIONING AMPLIFIER ASSEMBLY (for Manual Air Conditioning System) Fig 29: Air Conditioning Amplifier Assembly (w/ Manual Air Conditioning System) Connector End View E7
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*a Component without harness connected
(Air Conditioning Amplifier Assembly)- - - Disconnect the cable from the negative (-) battery terminal.

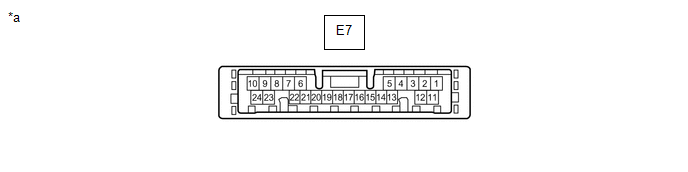

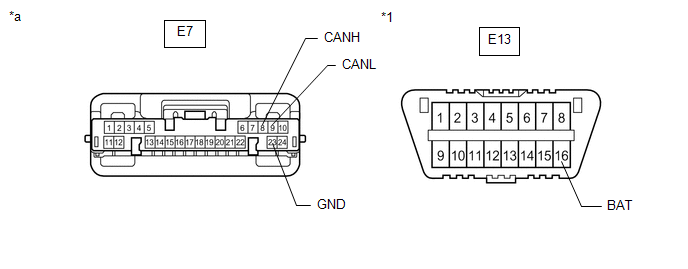

*1 DLC3 - - *a Front view of wire harness connector
(to Air Conditioning Amplifier Assembly)- - Disconnect the E7 air conditioning amplifier assembly connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition E7-8 (CANH) - E7-9 (CANL) Y - W HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) battery terminal 54 to 69 Ω E7-8 (CANH) - E7-23 (GND) Y - BR HIGH-level CAN bus line - Ground Cable disconnected from negative (-) battery terminal 200 Ω or higher E7-9 (CANL) - E7-23 (GND) W - BR LOW-level CAN bus line - Ground Cable disconnected from negative (-) battery terminal 200 Ω or higher E7-8 (CANH) - E13-16 (BAT) Y - G HIGH-level CAN bus line - Battery positive (+) Cable disconnected from negative (-) battery terminal 6 kΩ or higher E7-9 (CANL) - E13-16 (BAT) W - G LOW-level CAN bus line - Battery positive (+) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
Fig 30: Air Conditioning Amplifier Assembly (w/ Manual Air Conditioning System) Connector End View (2 Of 2)Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
