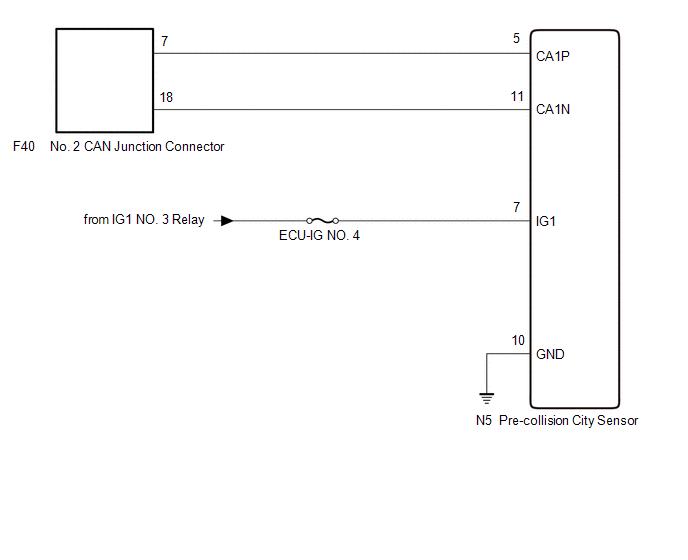

Front Camera Module Communication Stop Mode [08/2016 - ]: Wiring Diagram

GTY713229

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
