System Diagrams

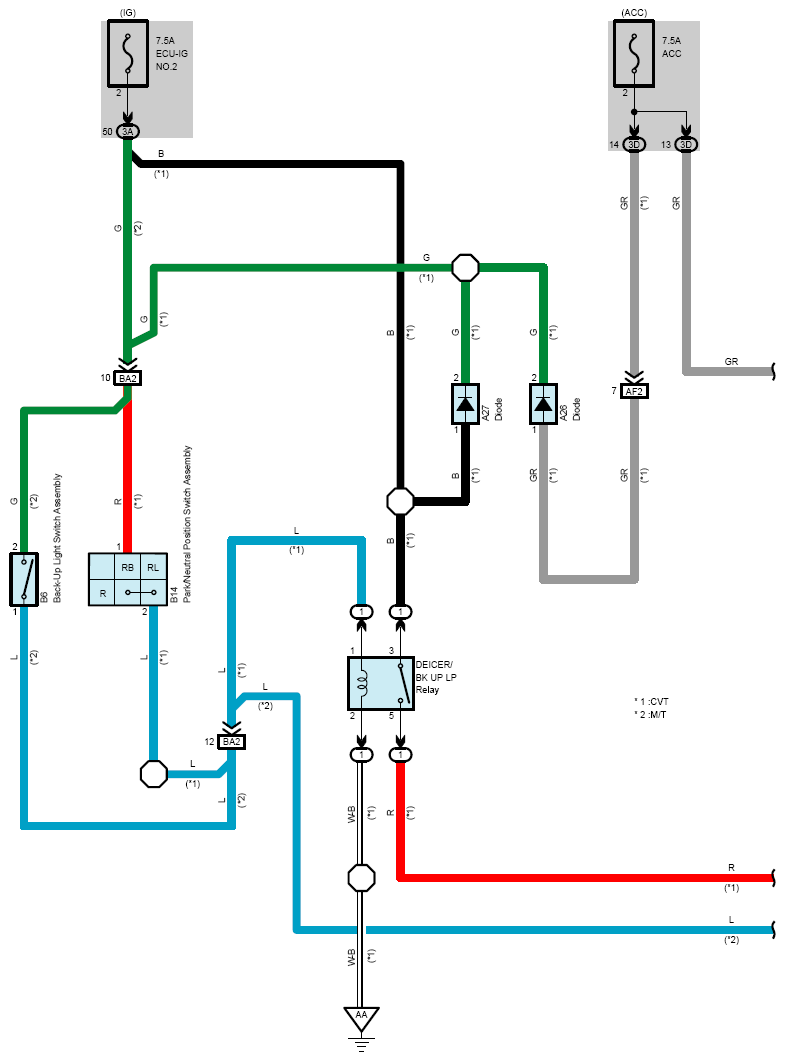

Fig 1: Audio System, Rear View Monitor System (1 Of 6)
G12205387Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

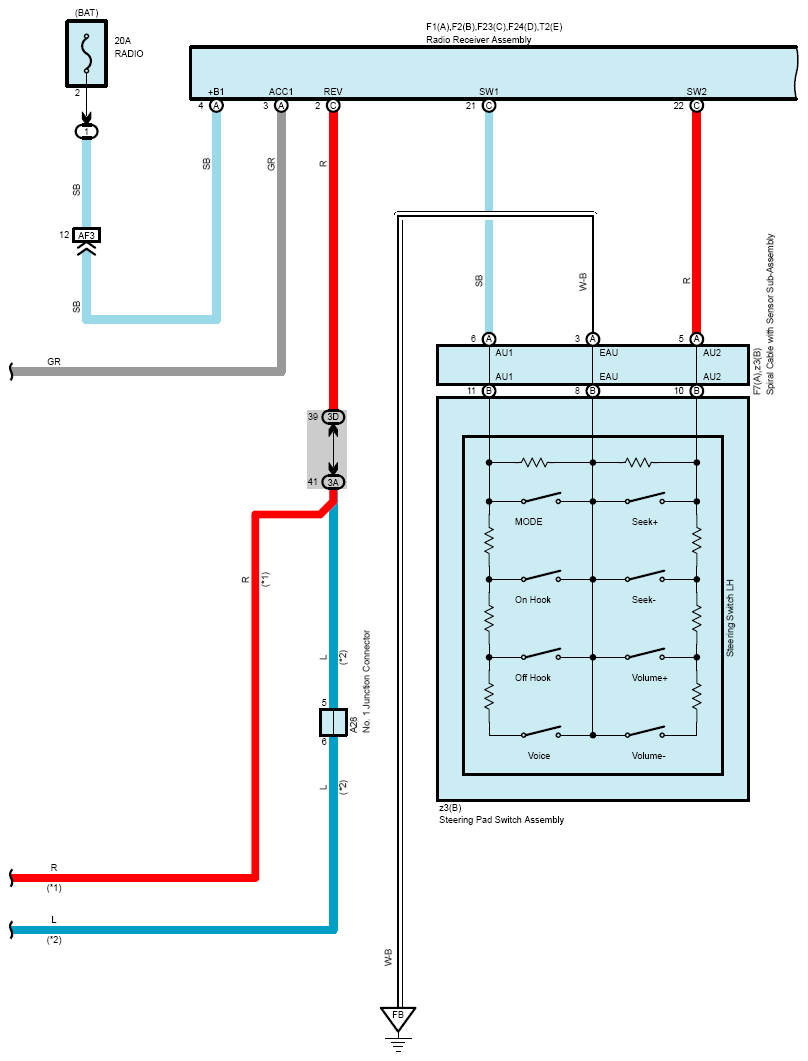

Fig 2: Audio System, Rear View Monitor System (2 Of 6)
G12205388Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

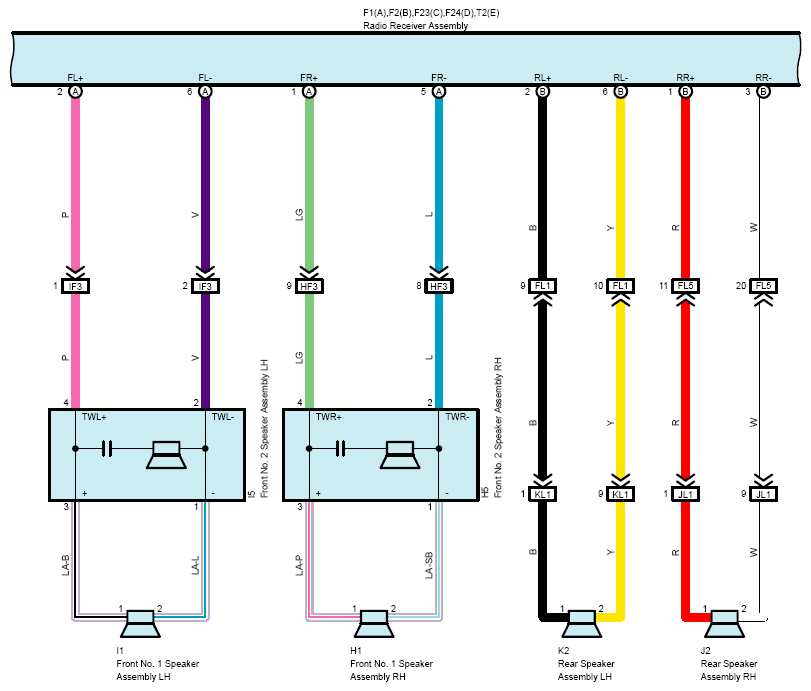

Fig 3: Audio System, Rear View Monitor System (3 Of 6)
G12205389Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

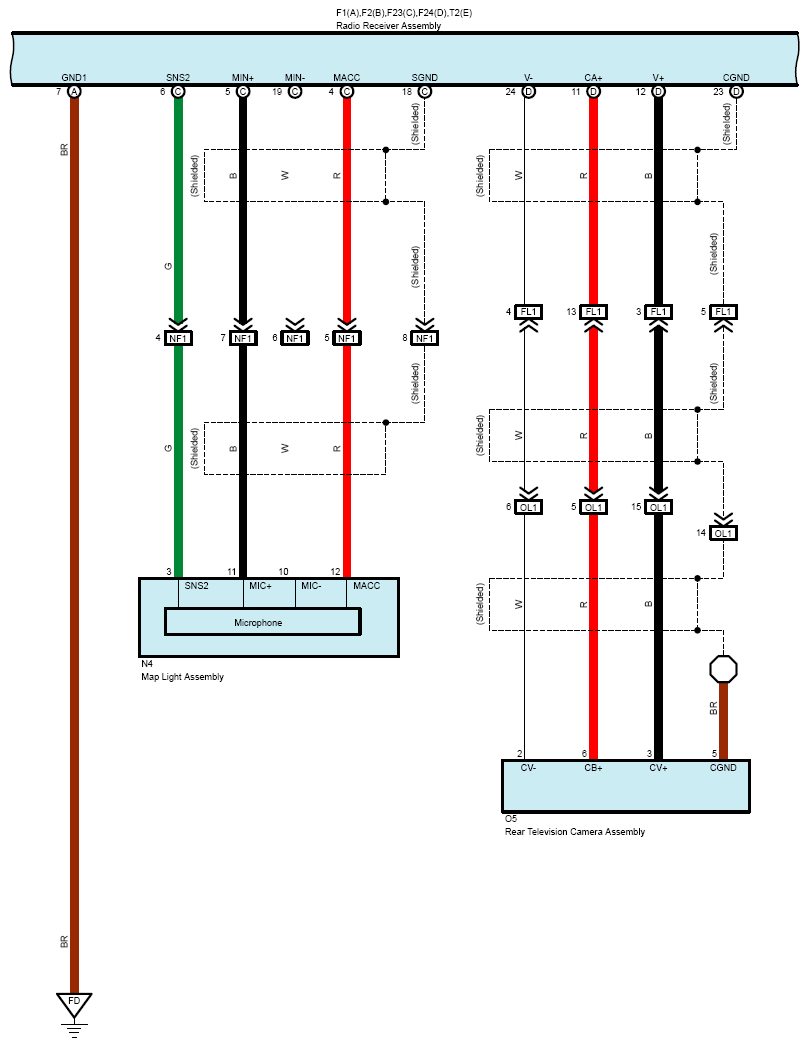

Fig 4: Audio System, Rear View Monitor System (4 Of 6)
G12205390Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

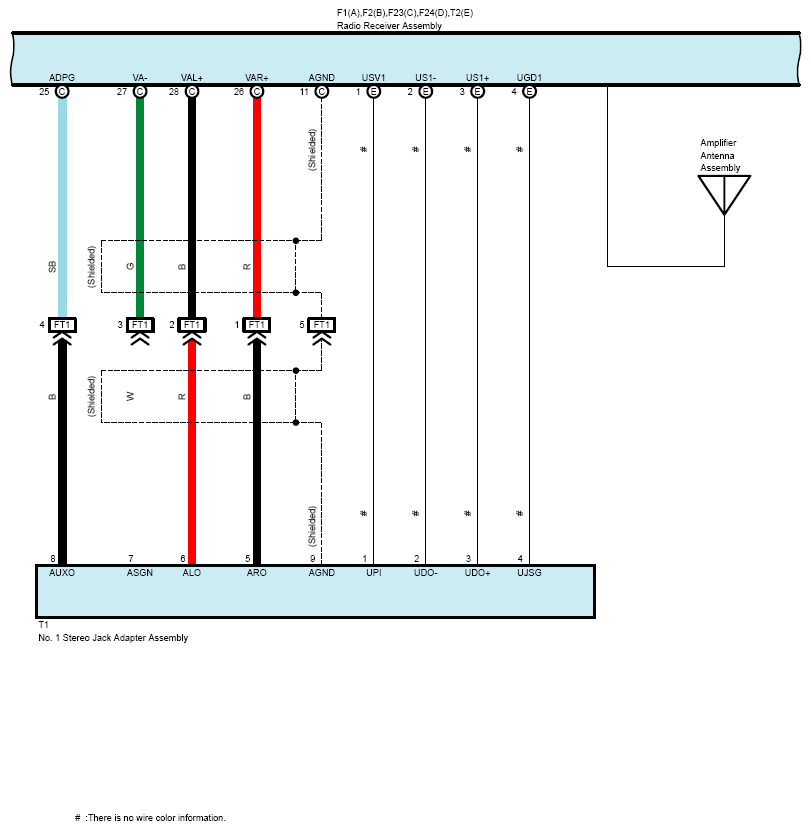

Fig 5: Audio System, Rear View Monitor System (5 Of 6)
G12205391Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

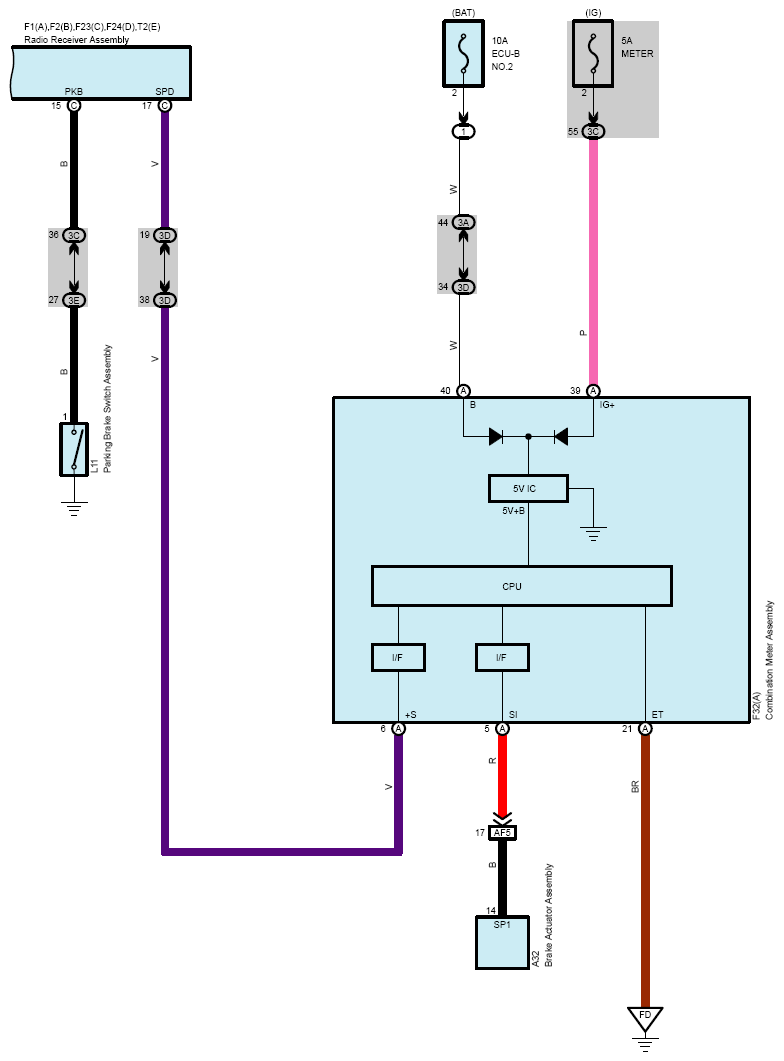

Fig 6: Audio System, Rear View Monitor System (6 Of 6)
G12205392Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
