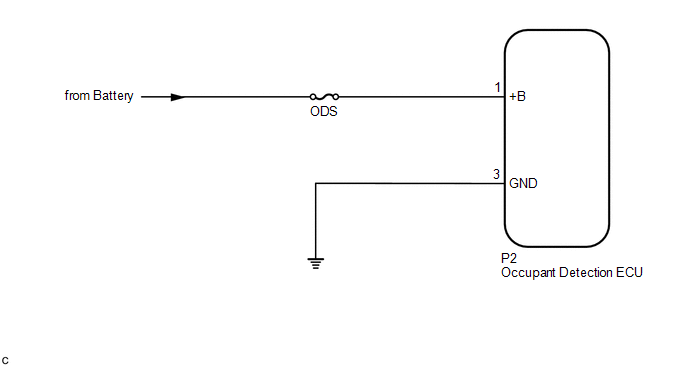

DTC B1794: Open in Occupant Classification ECU Battery Positive Line [08/2016 - ]: Wiring Diagram

GTY494373Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
