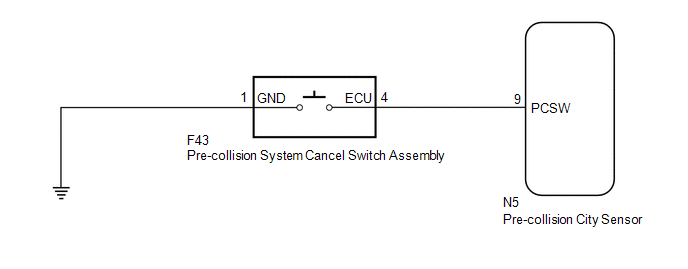

Pre-collision System Switch Circuit [08/2016 - ]: Wiring Diagram

GTY702838

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
