Disassembly [08/2016 - ]: Procedure

1. Secure the steering column assembly in a vise between aluminum plates.
   NOTE:

   Do not overtighten the vise.

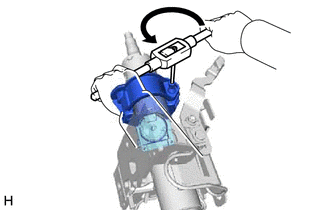

2. Using a drill, drill a hole in the steering lock set bolt and insert a screw extractor.
3. Using the screw extractor, remove the steering lock set bolt and upper steering column bracket with switch assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disengage the 2 claws and remove the transponder key coil.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the 2 screws and ignition or starter switch assembly from the upper steering column bracket assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disengage the clamp and remove the 2 screws and key interlock solenoid from the upper steering column bracket assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Disconnect the solenoid wire connector from the key interlock solenoid and remove the solenoid wire.

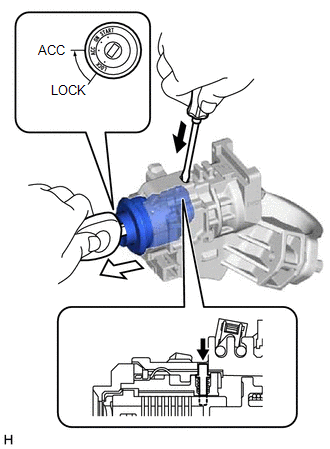

1. Turn the ignition switch to ACC.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   	Push
   	Pull

2. Insert the tip of a screwdriver into the hole in the upper steering column bracket assembly, as shown in the illustration, and pull the ignition switch lock cylinder assembly.

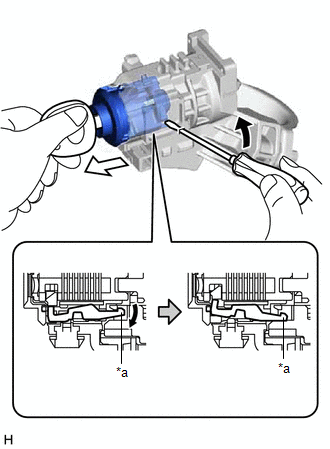

3. Insert the tip of a screwdriver into the hole in the upper steering column bracket assembly and tilt it upward, as shown in the illustration, to disengage the claw on the ignition switch lock cylinder assembly. Then pull out the ignition switch lock cylinder assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Claw
   	Tilt
   	Pull out

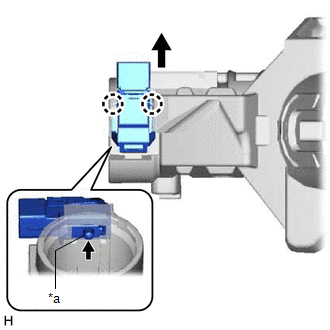

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Center Part

   Remove the un-lock warning switch assembly by pushing up the center part and releasing the 2 claws.

   HINT:

   Slide the un-lock warning switch in the direction shown by the arrow in the illustration to remove it.

Refer to PROCEDURE - Step 3
