Reassembly [08/2016 - ]: Procedure

Refer to PROCEDURE - Step 1

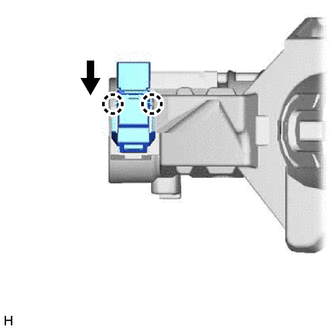

1. Engage the 2 claws to install the un-lock warning switch assembly to the upper steering column bracket assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

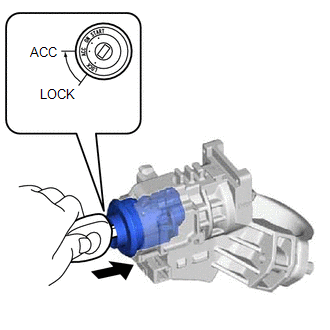

1. Turn the ignition switch to ACC.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Install the ignition switch lock cylinder assembly to the upper steering column bracket assembly.
3. Make sure that the ignition switch lock cylinder assembly is securely installed into the upper steering column bracket assembly.

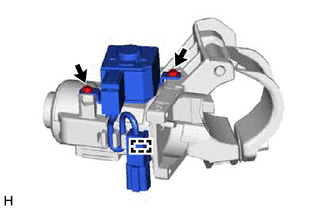

1. Connect the solenoid wire connector to the key interlock solenoid.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Install the key interlock solenoid to the upper steering column bracket assembly with the 2 screws.
3. Engage the clamp.

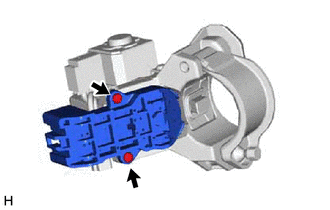

1. Install the ignition or starter switch assembly to the upper steering column bracket assembly with the 2 screws.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

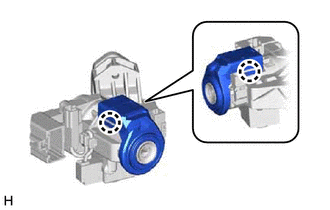

1. Engage the 2 claws to install the transponder key coil.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Set the steering column assembly in a vise between aluminum plates.
   NOTE:

   Do not overtighten the vise.

2. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

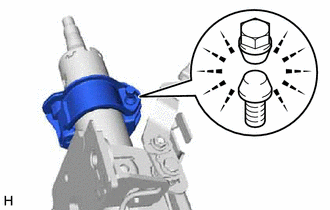

   Temporarily install the upper steering column bracket with switch assembly with a new steering lock set bolt.

3. Tighten the steering lock set bolt until the bolt head breaks off.
