System Diagrams

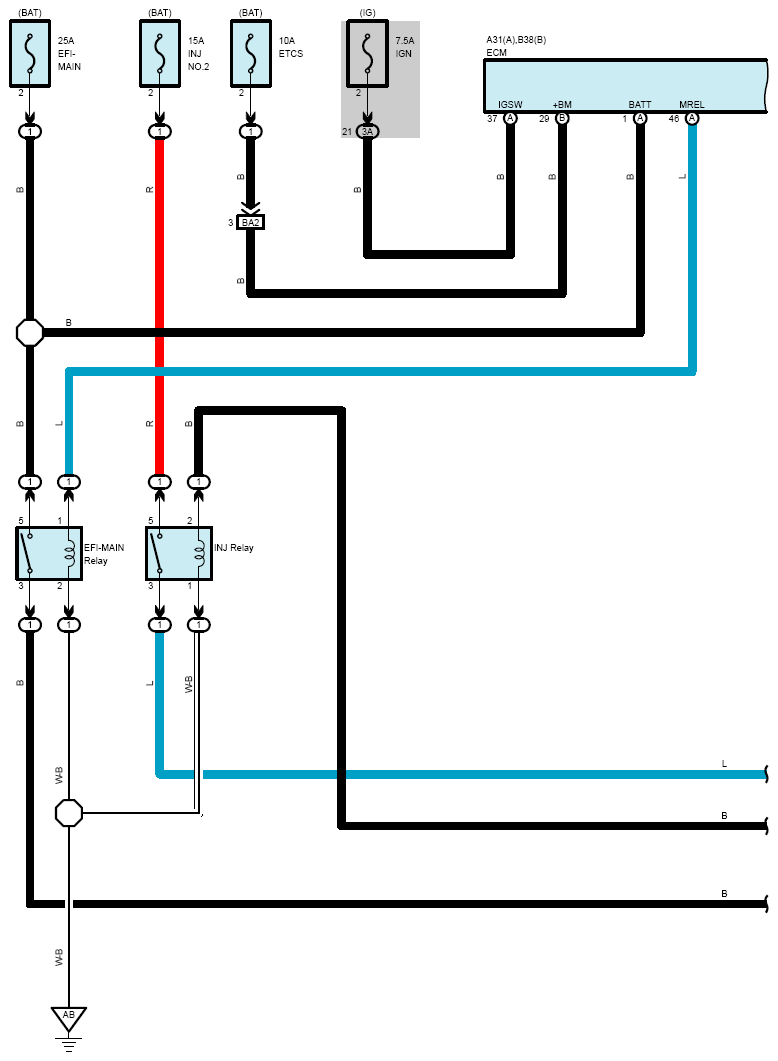

Fig 1: Cruise Control, CVT And Shift Indicator, Engine Control (1 Of 20)

G12205418

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

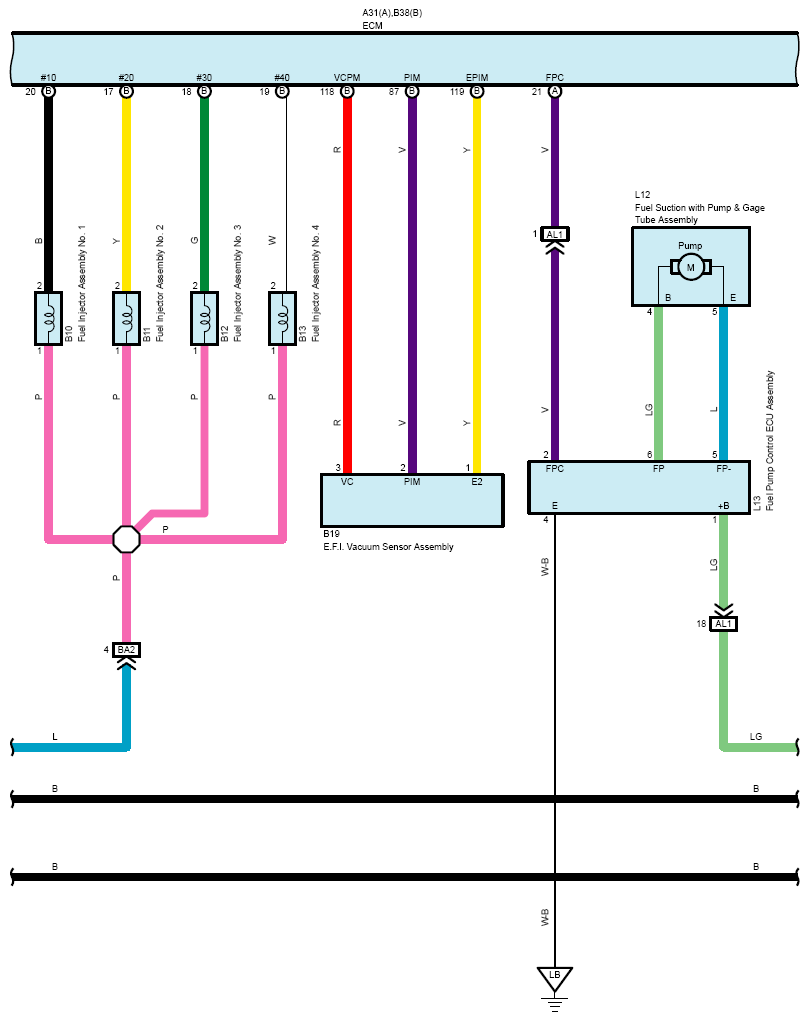

Fig 2: Cruise Control, CVT And Shift Indicator, Engine Control (2 Of 20)

G12205419

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

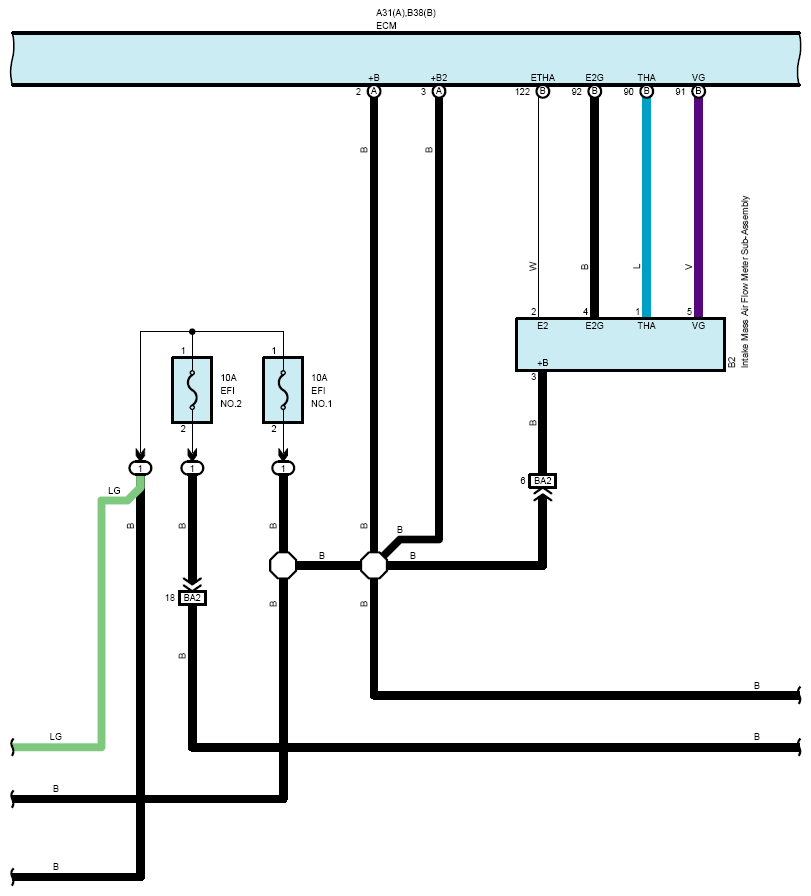

Fig 3: Cruise Control, CVT And Shift Indicator, Engine Control (3 Of 20)

G12205420

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

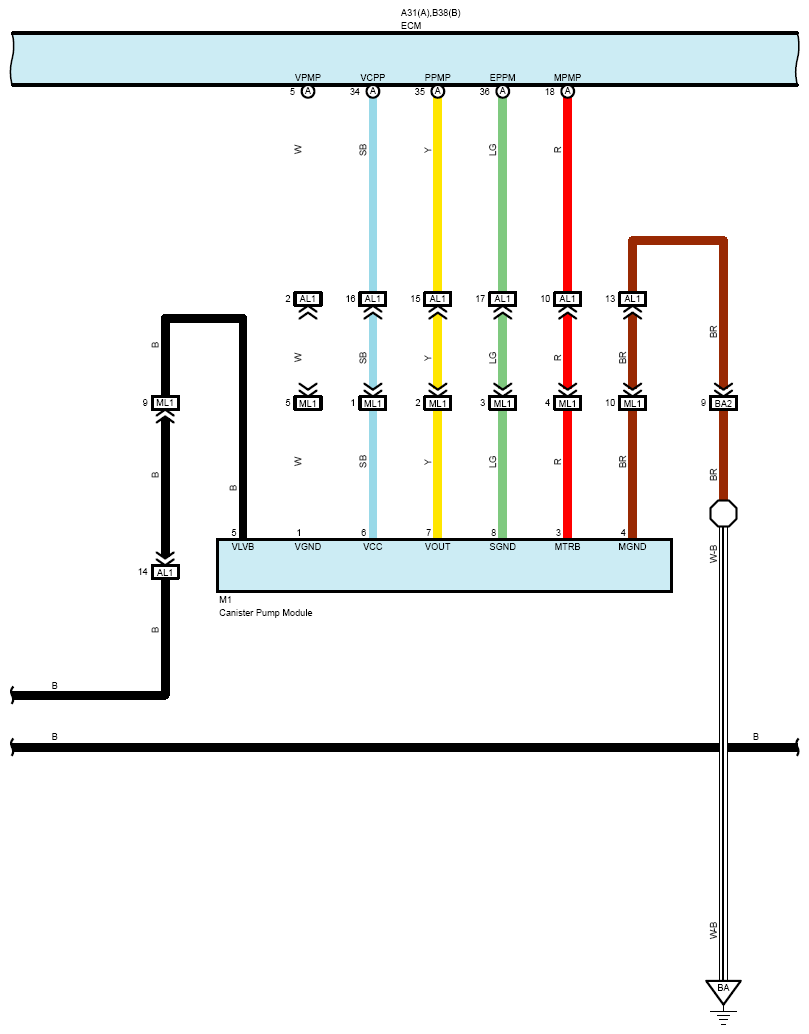

Fig 4: Cruise Control, CVT And Shift Indicator, Engine Control (4 Of 20)

G12205421

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

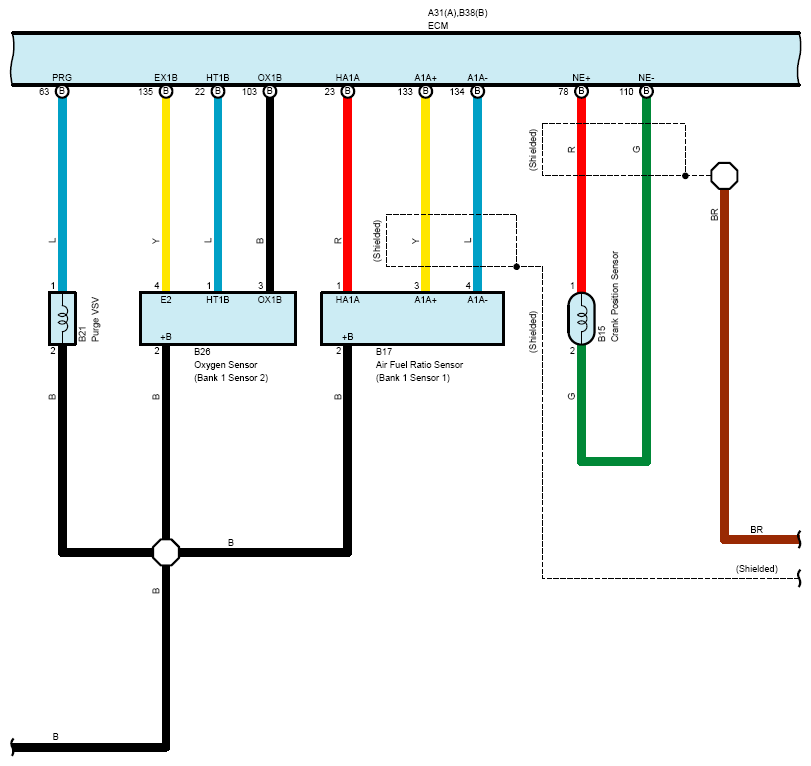

Fig 5: Cruise Control, CVT And Shift Indicator, Engine Control (5 Of 20)

G12205422

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

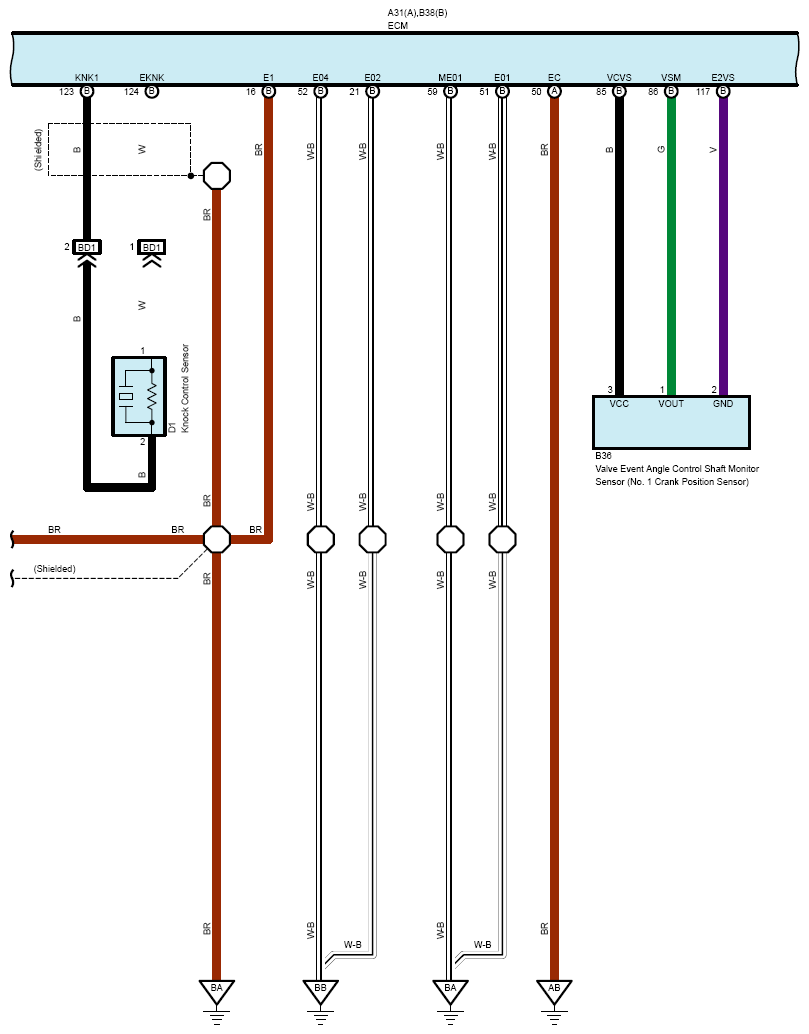

Fig 6: Cruise Control, CVT And Shift Indicator, Engine Control (6 Of 20)

G12205423

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

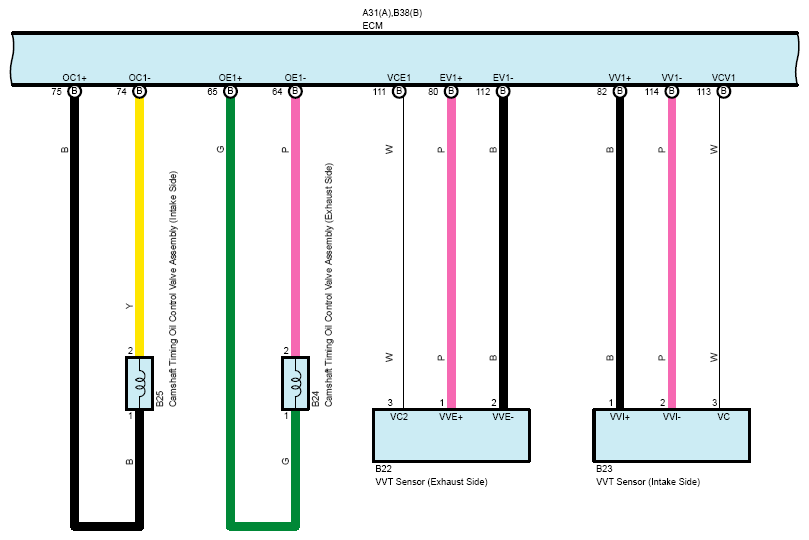

Fig 7: Cruise Control, CVT And Shift Indicator, Engine Control (7 Of 20)

G12205424

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

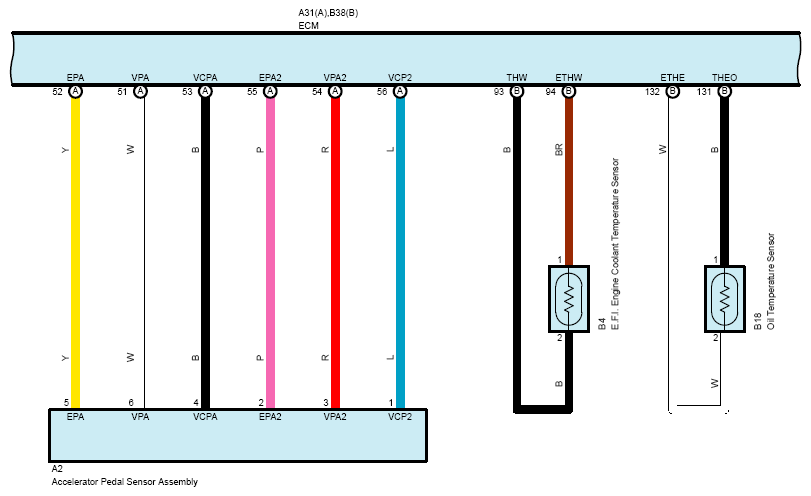

Fig 8: Cruise Control, CVT And Shift Indicator, Engine Control (8 Of 20)

G12205425

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

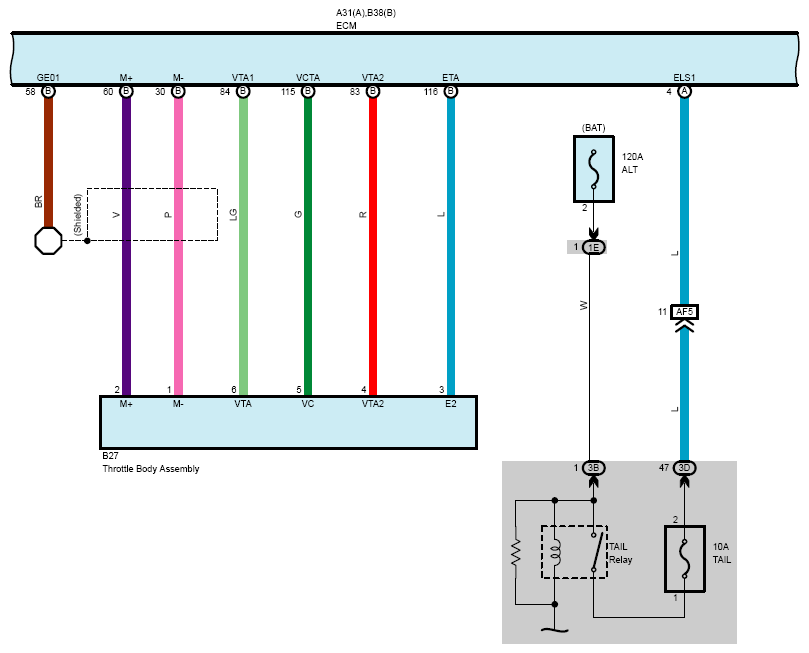

Fig 9: Cruise Control, CVT And Shift Indicator, Engine Control (9 Of 20)

G12205426

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

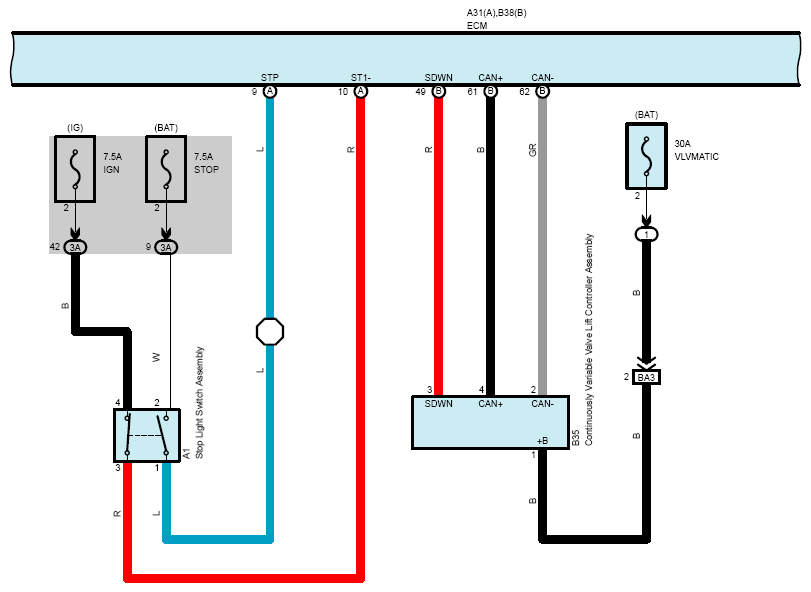

Fig 10: Cruise Control, CVT And Shift Indicator, Engine Control (10 Of 20)

G12205427

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

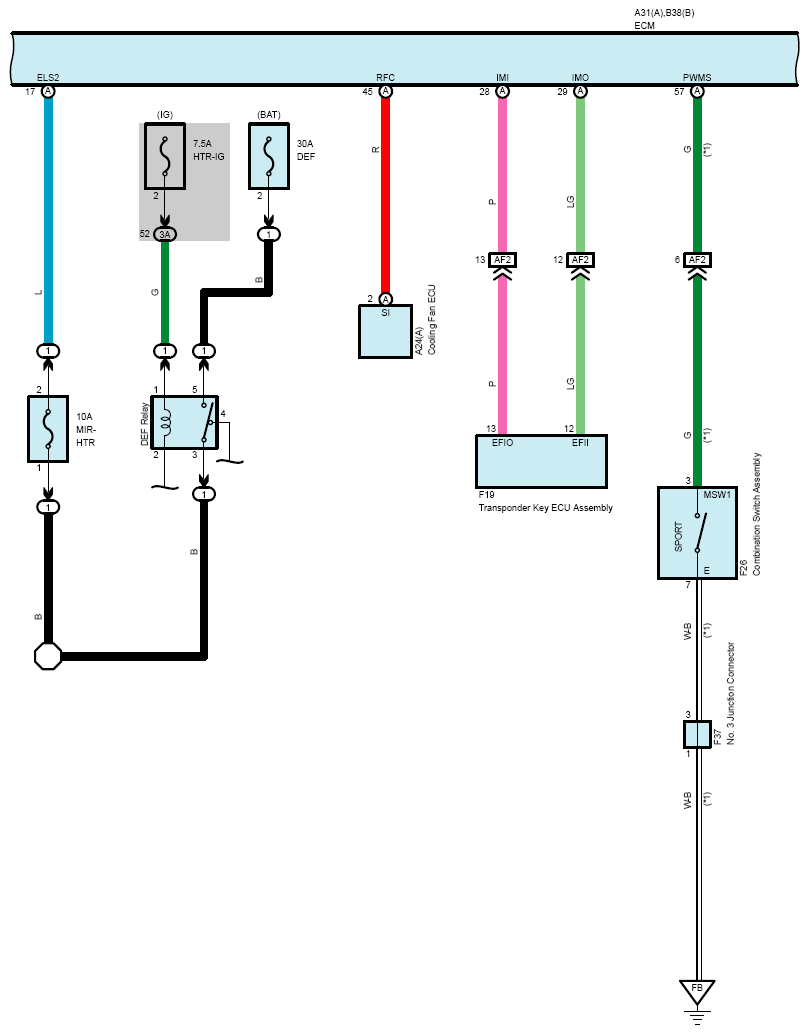

Fig 11: Cruise Control, CVT And Shift Indicator, Engine Control (11 Of 20)

G12205428

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

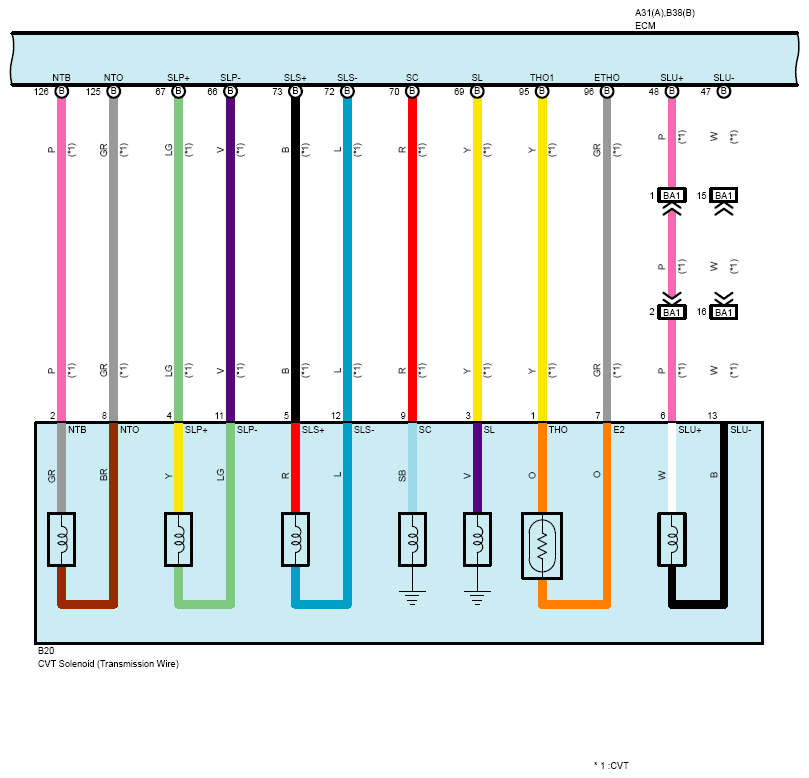

Fig 12: Cruise Control, CVT And Shift Indicator, Engine Control (12 Of 20)

G12205429

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

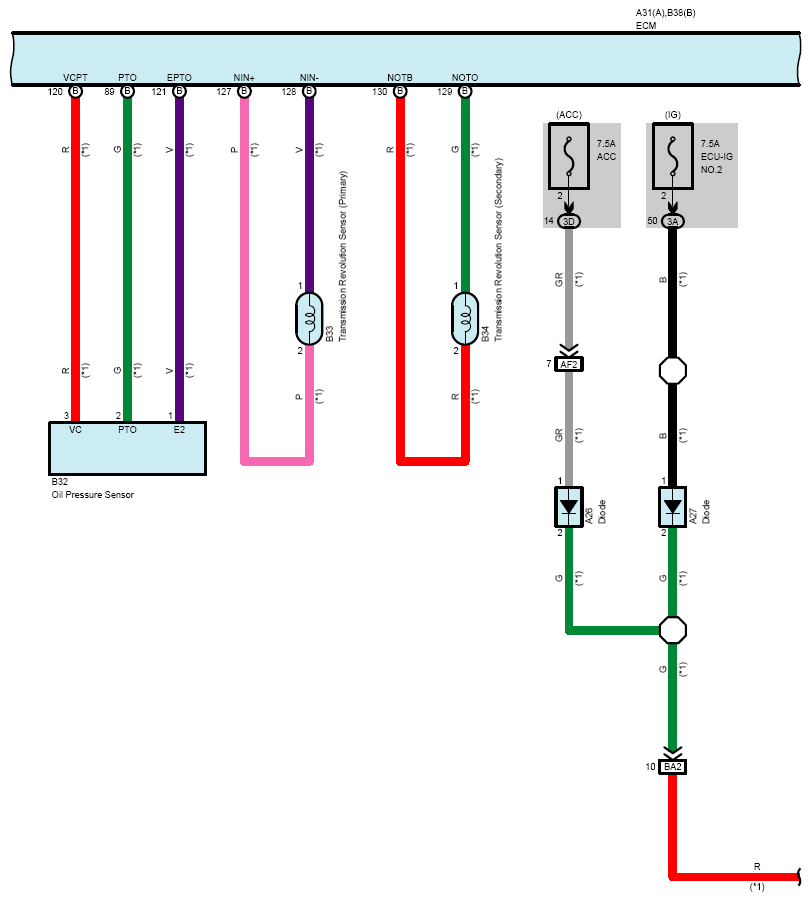

Fig 13: Cruise Control, CVT And Shift Indicator, Engine Control (13 Of 20)

G12205430

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

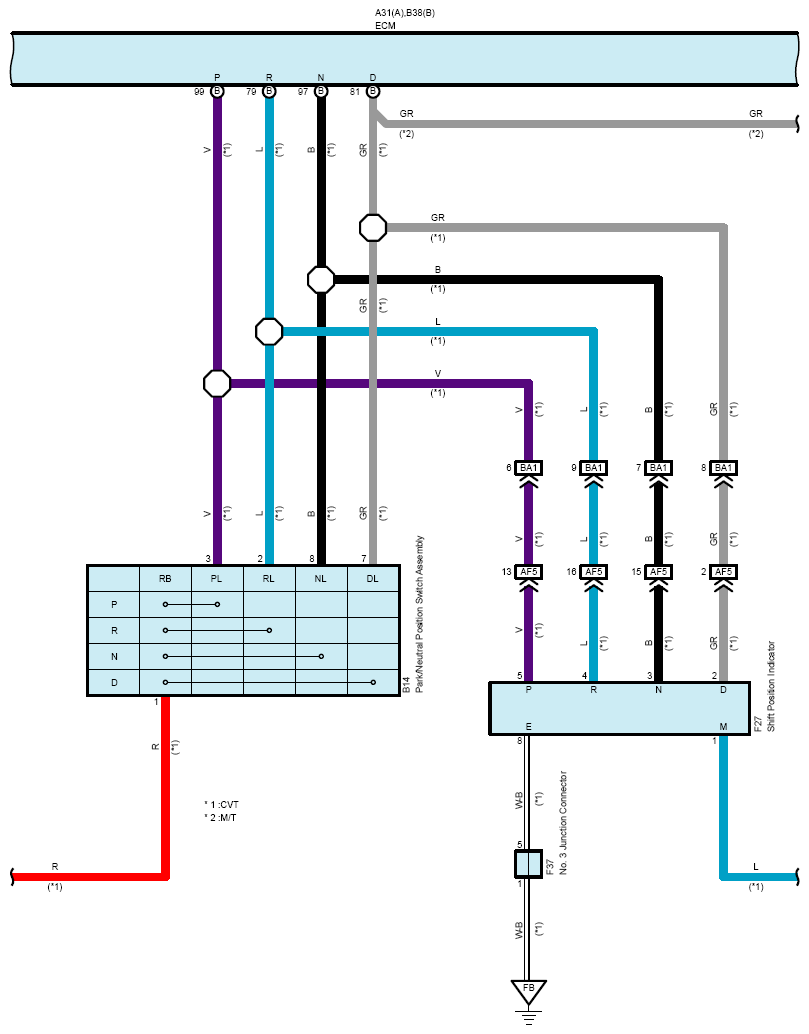

Fig 14: Cruise Control, CVT And Shift Indicator, Engine Control (14 Of 20)

G12205431

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

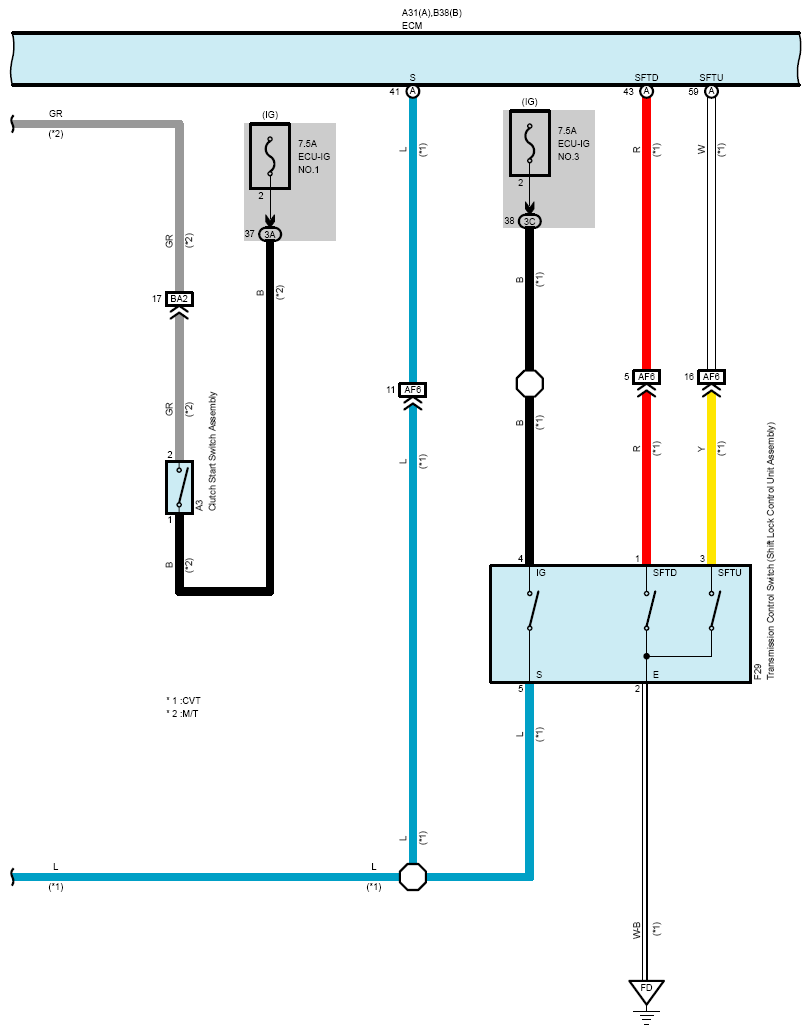

Fig 15: Cruise Control, CVT And Shift Indicator, Engine Control (15 Of 20)

G12205432

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

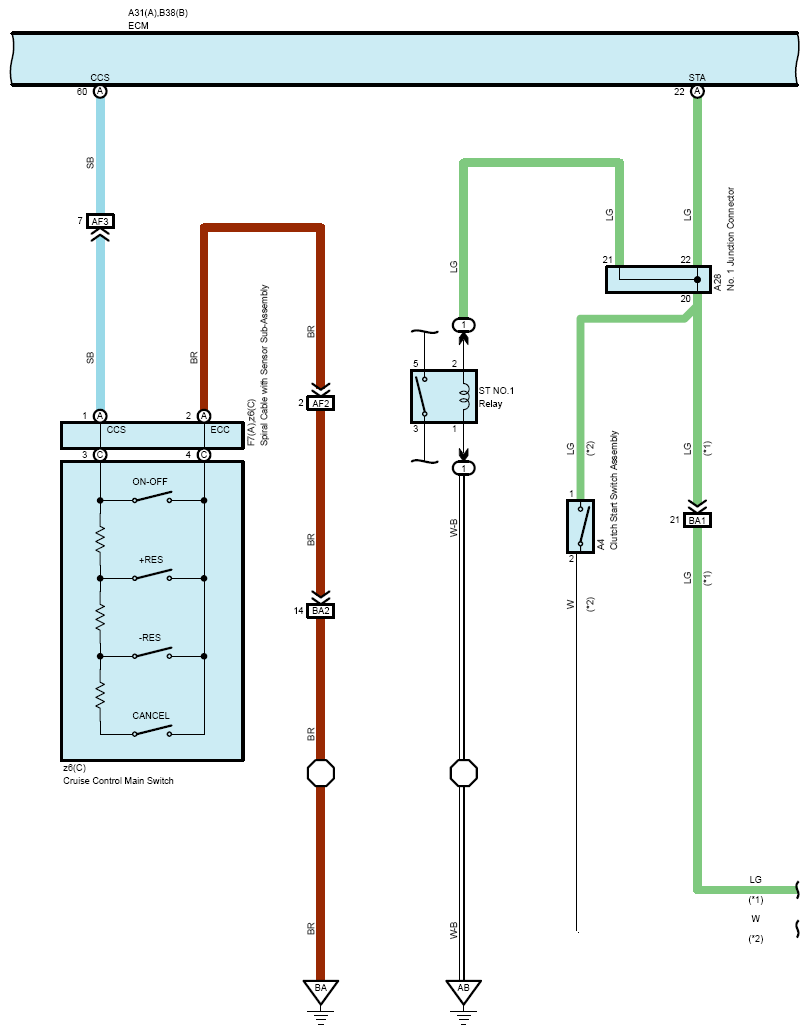

Fig 16: Cruise Control, CVT And Shift Indicator, Engine Control (16 Of 20)

G12205433

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

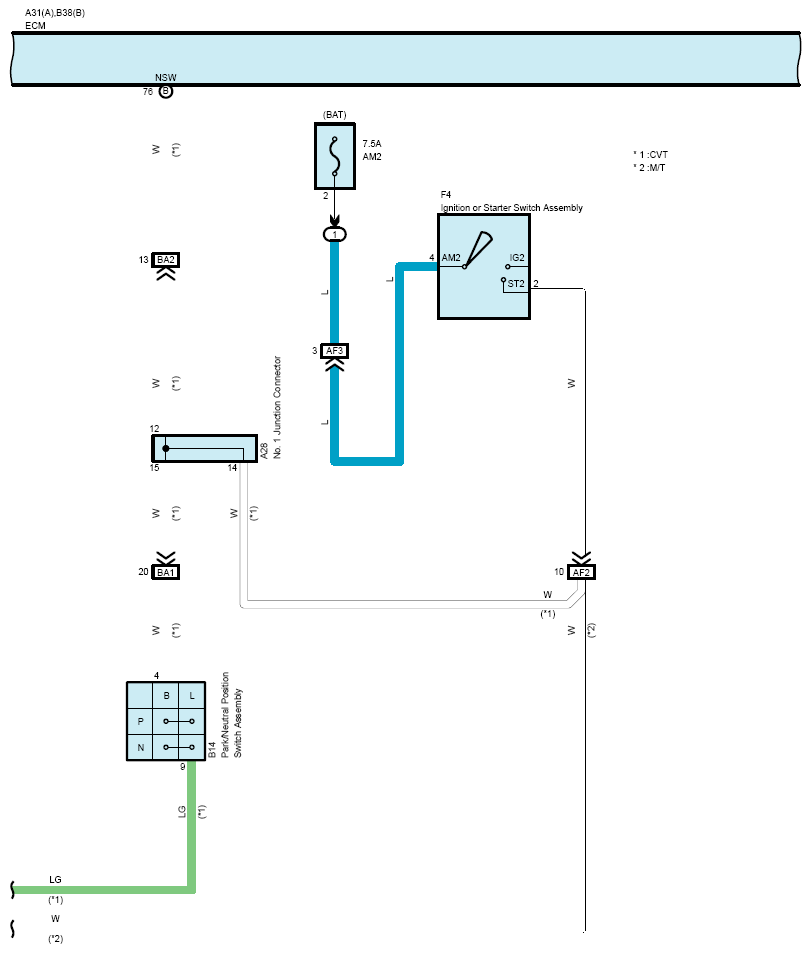

Fig 17: Cruise Control, CVT And Shift Indicator, Engine Control (17 Of 20)

G12205434

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

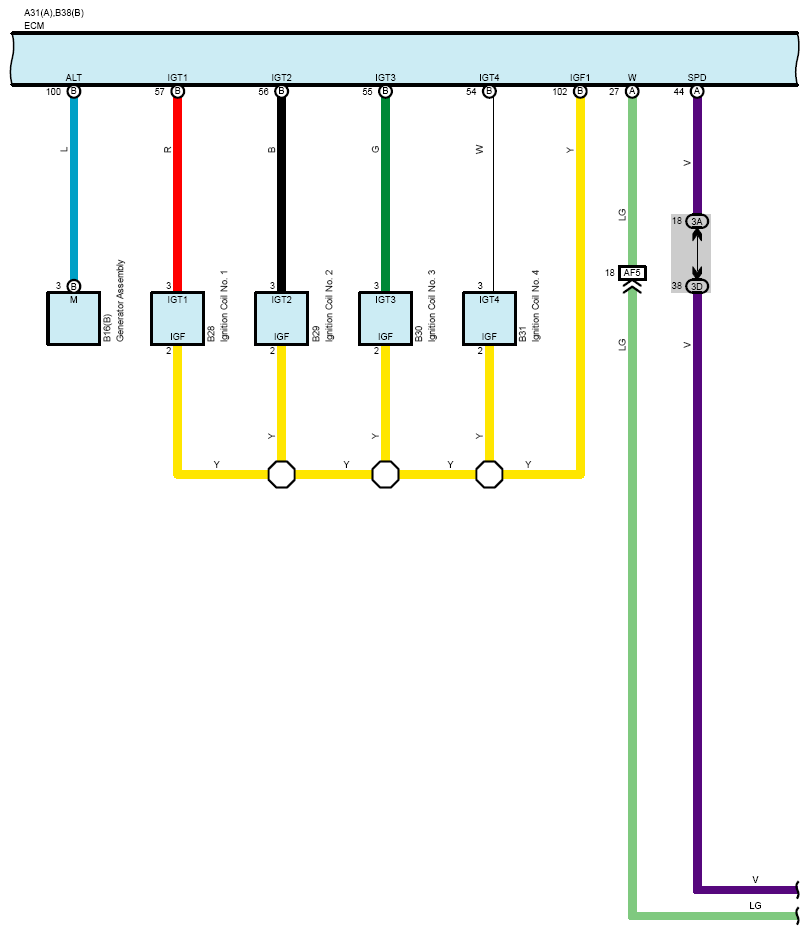

Fig 18: Cruise Control, CVT And Shift Indicator, Engine Control (18 Of 20)

G12205435

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

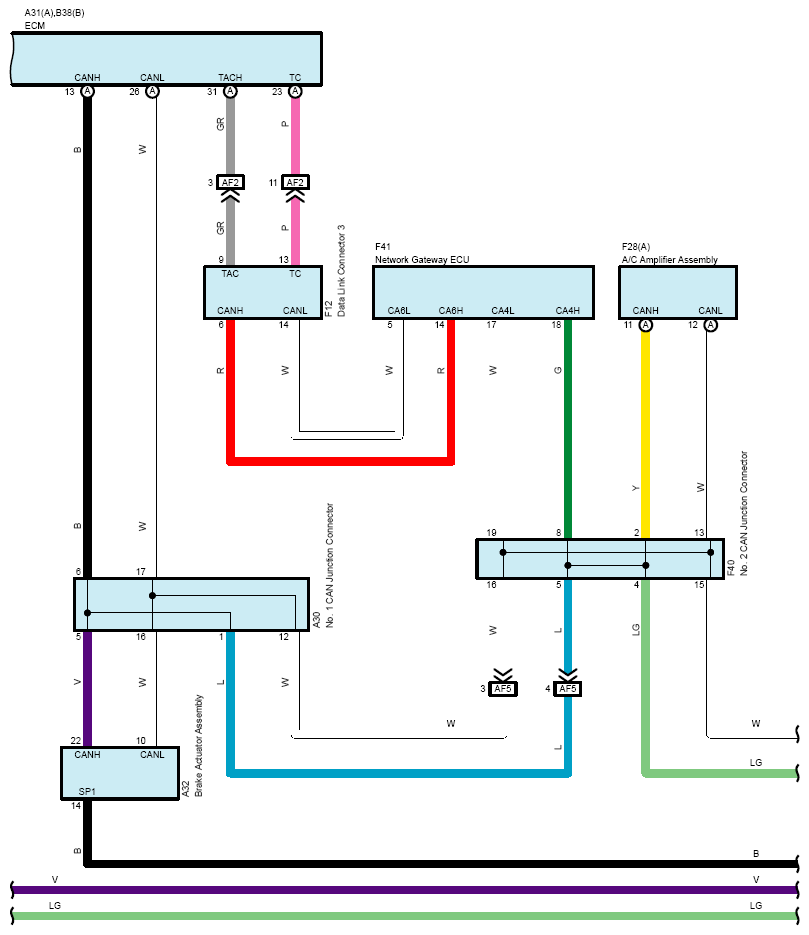

Fig 19: Cruise Control, CVT And Shift Indicator, Engine Control (19 Of 20)

G12205436

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

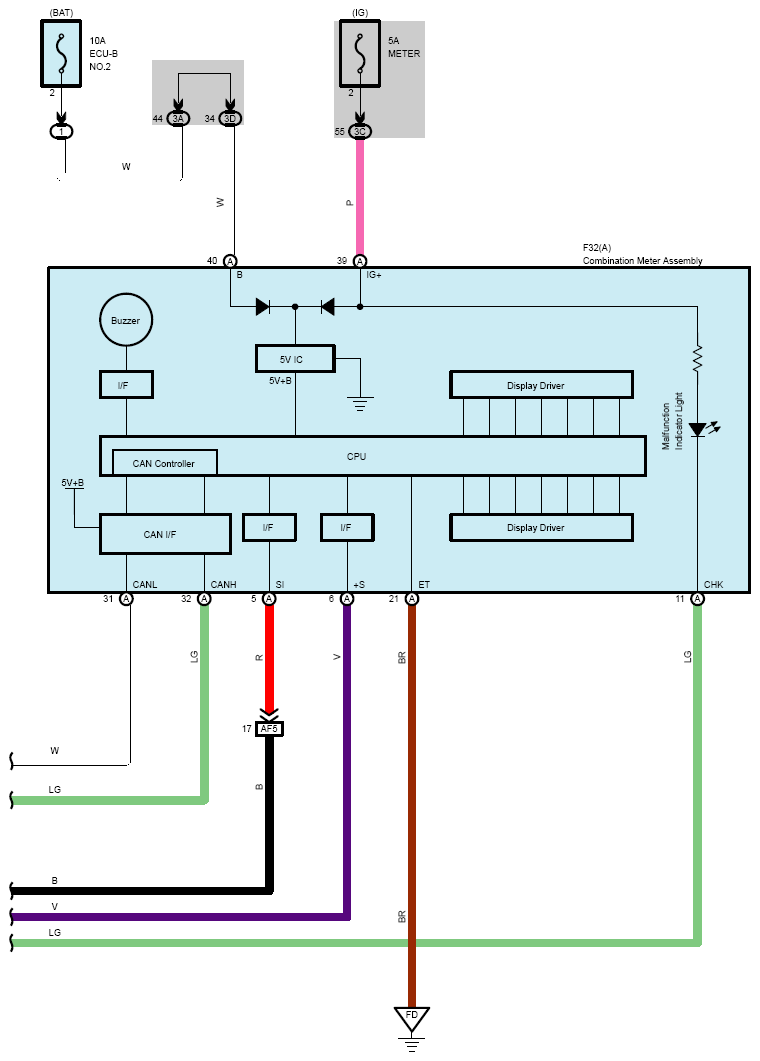

Fig 20: Cruise Control, CVT And Shift Indicator, Engine Control (20 Of 20)

G12205437

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
