Removal [08/2016 - ]: Procedure

  1. PRECAUTION

    Refer to PRECAUTION [08/2016 - ]

  2. ALIGN FRONT WHEELS FACING STRAIGHT AHEAD
  3. REMOVE HORN BUTTON ASSEMBLY

    Refer to REMOVAL [08/2016 - ]

  4. REMOVE STEERING WHEEL ASSEMBLY

    See step  3

  5. REMOVE STEERING COLUMN COVER

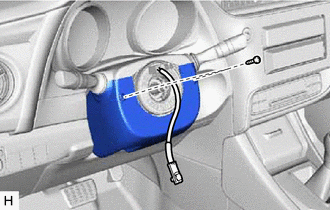

    1. Remove the 2 screws.
      GTY491949Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

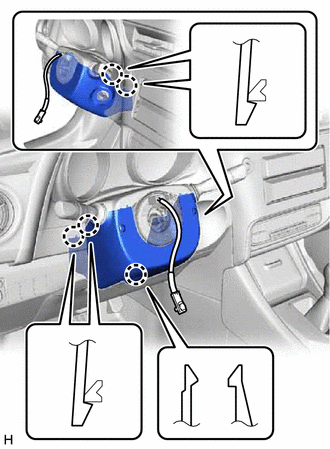

    2. Disengage the 5 claws and remove the steering column cover (lower).
      GTY495053Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the 2 claws and remove the steering column cover (upper).
      GTY491946Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY
    NOTE:
    • Do not replace the spiral cable with sensor sub-assembly with the battery connected and the ignition switch ON.
    • Do not rotate the spiral cable with sensor sub-assembly without the steering wheel with the battery connected and the ignition switch ON.
    • Ensure that the steering wheel is installed and aligned straight when inspecting the steering sensor.
    1. Disconnect each connector from the turn signal switch assembly with spiral cable sub-assembly.

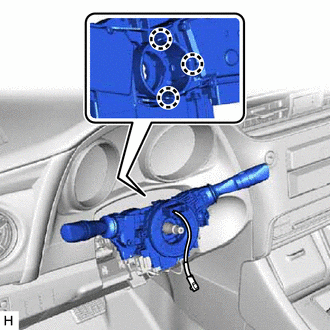

    2. Disengage the 3 claws to remove the turn signal switch assembly with spiral cable sub-assembly from the steering column assembly.
      GTY495052Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE COLUMN HOLE COVER SILENCER SHEET
    1. Turn back the floor carpet.

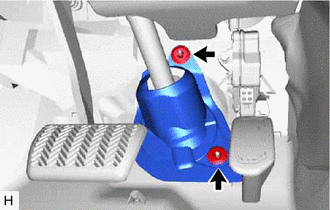

    2. Remove the 2 clips and column hole cover silencer sheet.
      GTY491952Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. SEPARATE NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY

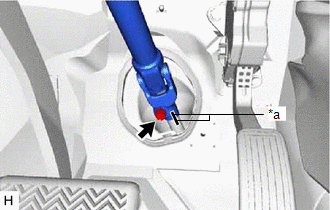

    1. Put matchmarks on the No. 2 steering intermediate shaft assembly and steering intermediate shaft assembly.
      GTY486749Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Matchmark
    2. Remove the bolt.
    3. Separate the No. 2 steering intermediate shaft assembly from the steering intermediate shaft assembly.
  9. REMOVE NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY

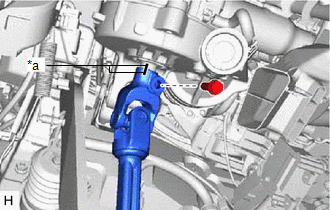

    1. Remove the bolt and slide the No. 2 steering intermediate shaft assembly.
      GTY493064Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Matchmark
      NOTE:

      Do not separate the No. 2 steering intermediate shaft assembly from the steering column assembly.

    2. Put matchmarks on the No. 2 steering intermediate shaft assembly and the steering column assembly.
    3. Remove the No. 2 steering intermediate shaft assembly from the steering column assembly.
  10. REMOVE UPPER INSTRUMENT PANEL ASSEMBLY

    Refer to REMOVAL [08/2016 - ]

  11. REMOVE NO. 1 SWITCH HOLE BASE

    Refer to PROCEDURE - Step 7

  12. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 8

  13. REMOVE LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY

    Refer to PROCEDURE - Step 10

  14. REMOVE STOP LIGHT SWITCH ASSEMBLY

    Refer to PROCEDURE - Step 2

  15. REMOVE STOP LIGHT SWITCH MOUNTING ADJUSTER

    Refer to PROCEDURE - Step 3

  16. REMOVE BRAKE PEDAL RETURN SPRING

    Refer to PROCEDURE - Step 5

  17. REMOVE PUSH ROD PIN

    Refer to PROCEDURE - Step 6

  18. REMOVE BRAKE PEDAL SUPPORT ASSEMBLY

    Refer to PROCEDURE - Step 7

  19. REMOVE STEERING COLUMN ASSEMBLY

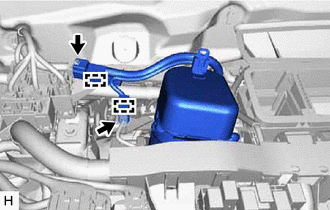

    1. Disconnect the 2 connectors.
      GTY493660Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 wire harness clamps.
    3. Disconnect each connector and disengage each wire harness clamp from the steering column assembly.

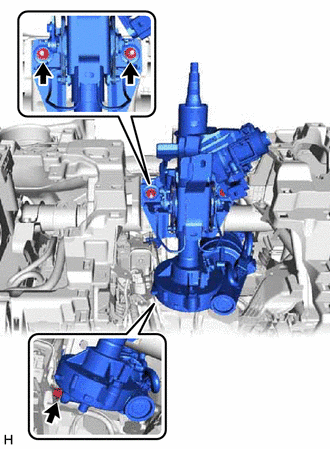

    4. Remove the bolt, 2 nuts and steering column assembly.
      GTY491927Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
