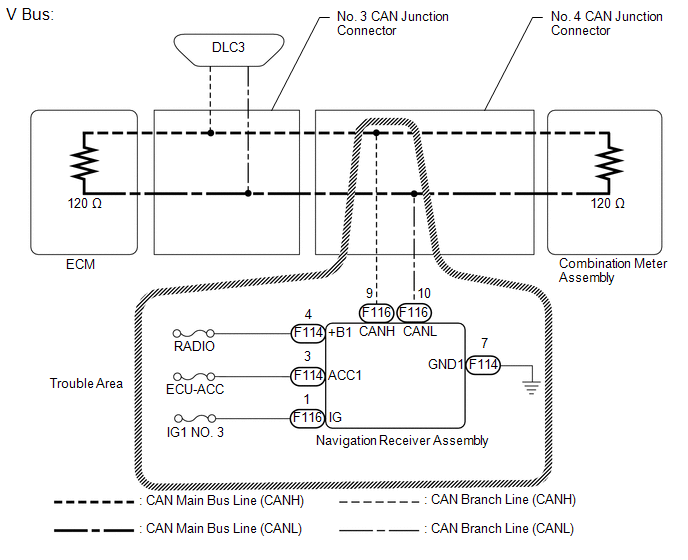

Navigation Receiver Assembly Communication Stop Mode [12/2013 - 11/2016]: Wiring Diagram

GTY423162Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
