Terminals Of Radio And Display Receiver Assembly [11/2016 - ]
HINT:
Check from the rear of the connector while it is connected to the components.
- RADIO AND DISPLAY RECEIVER ASSEMBLY
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

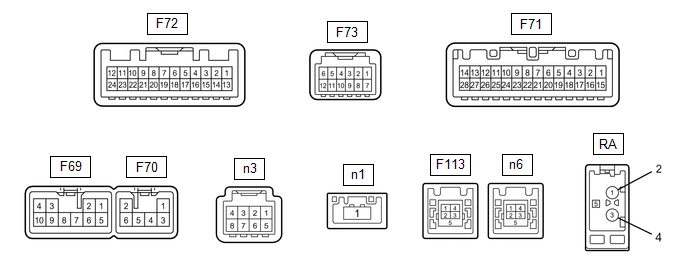

Terminal No. (Symbol) Wiring Color Terminal Description Condition Specification F69-1 (FR+) - F69-7 (GND1) W - BR Sound signal (Front right) Audio system playing A waveform synchronized with sounds is output F69-2 (FL+) - F69-7 (GND1) LA-B - BR Sound signal (Front left) Audio system playing A waveform synchronized with sounds is output F69-3 (ACC1) - F69-7 (GND1) GR - BR Power source (ACC) Ignition switch off Below 1 V Ignition switch ACC 11 to 14 V*4
9.5 to 14 V*5F69-4 (+B1) - F69-7 (GND1) LA-SB - BR*4
SB - BR*5Power source (+B) Always 11 to 14 V*4
9.5 to 14 V*5F69-5 (FR-) - F69-7 (GND1) B - BR Sound signal (Front right) Audio system playing A waveform synchronized with sounds is output F69-6 (FL-) - F69-7 (GND1) LA-GR - BR Sound signal (Front left) Audio system playing A waveform synchronized with sounds is output F69-7 (GND1) - Body ground BR - Body ground Ground Always Below 1 V F69-10 (ILL+) - F69-7 (GND1) G - BR Illumination signal Light control switch off Below 1 V Light control switch in tail or head position 11 to 14 V F70-1 (RR+) - F69-7 (GND1) P - BR Sound signal (Rear right) Audio system playing A waveform synchronized with sounds is output F70-2 (RL+) - F69-7 (GND1) L - BR Sound signal (Rear left) Audio system playing A waveform synchronized with sounds is output F70-3 (RR-) - F69-7 (GND1) GR - BR Sound signal (Rear right) Audio system playing A waveform synchronized with sounds is output F70-5 (ILL-) - F69-7 (GND1) W - BR Illumination signal Light control switch off Below 1 V Light control switch in tail or head position Pulse generation F70-6 (RL-) - F69-7 (GND1) R - BR Sound signal (Rear left) Audio system playing A waveform synchronized with sounds is output F71-1 (IG) - F69-7 (GND1) R - BR Power source (IG) Ignition switch off Below 1 V Ignition switch ON 11 to 14 V F71-2 (REV) - F69-7 (GND1) R - BR Reverse signal See "Check Vehicle Signal" in Operation Check
Refer to OPERATION CHECK [11/2016 - ]- F71-4 (MACC) - F69-7 (GND1) G - BR Microphone power supply Ignition switch off Below 1 V Ignition switch ACC 4 to 6 V F71-5 (MIN+) - F69-7 (GND1) L - BR Microphone voice signal See "Check Microphone" in Operation Check
Refer to OPERATION CHECK [11/2016 - ]- F71-6 (SNS2) - F69-7 (GND1) V - BR Microphone connection detection signal Always Below 1 V F71-9 (CANH) B CAN communication signal - - F71-10 (CANL) W CAN communication signal - - F71-11 (AGND) - Body ground Shield - Body ground Shield ground Always Below 1 V F71-15 (PKB) - F69-7 (GND1) B - BR Parking brake signal See "Check Vehicle Signal" in Operation Check
Refer to OPERATION CHECK [11/2016 - ]- F71-17 (SPD) - F69-7 (GND1) GR - BR Vehicle speed signal See "Check Vehicle Signal" in Operation Check
Refer to OPERATION CHECK [11/2016 - ]- F71-18 (SGND) - Body ground Shield - Body ground Shield ground Always Below 1 V F71-19 (MIN-) - F69-7 (GND1) P - BR Microphone voice signal See "Check Microphone" in Operation Check
Refer to OPERATION CHECK [11/2016 - ]- F71-21 (SW1) - F71-23 (SWG) P - R Steering pad switch signal No switch pushed 2.97 to 3.56 V Seek+ switch pushed 0.27 to 0.35 V Seek- switch pushed 0.86 to 1.03 V Up switch pushed 0.27 to 0.35 V Down switch pushed 0.86 to 1.03 V Volume+ switch pushed 1.51 to 1.79 V Volume- switch pushed 2.22 to 2.66 V F71-22 (SW2) - F71-23 (SWG) L - R Steering pad switch signal No switch pushed 2.97 to 3.56 V MODE/HOLD switch pushed 0.27 to 0.35 V On hook switch pushed 0.86 to 1.03 V Off hook switch pushed 1.51 to 1.79 V Voice switch pushed 2.22 to 2.66 V F71-23 (SWG) - F69-7 (GND1) R - BR Steering pad switch ground Always Below 1 V F71-25 (ADPG) - F69-7 (GND1) BE - BR External device connection detection signal External device connected Below 1 V External device not connected 2.1 to 3 V F71-26 (VAR+) - F71-27 (VA-) R - B Sound signal (Right) External device playing (When stereo jack used) A waveform synchronized with sounds is output F71-27 (VA-) - F69-7 (GND1) B - BR Ground Always Below 1 V F71-28 (VAL+) - F71-27 (VA-) W - B Sound signal (Left) External device playing (When stereo jack used) A waveform synchronized with sounds is output F72-3 (CNH1)*1 GR Local bus communication signal - - F72-4 (CNL1)*1 SB Local bus communication signal - - F72-11 (CA+) - F69-7 (GND1) B - BR Television camera power supply Ignition switch ACC 5.5 to 7.05 V F72-12 (V+) - F69-7 (GND1) R - BR Video signal Ignition switch ON
Shift lever in R
Camera lens not covered, displaying an imagePulse generation
(Refer to waveform 1)Ignition switch ON
Shift lever in R
Camera lens covered, blacking out screenPulse generation
(Refer to waveform 2)F72-23 (CGND) - Body ground Shield - Body ground Shield ground Always Below 1 V F72-24 (V-) - F69-7 (GND1) W - BR Ground Always Below 1 V F73-1 (CSLD) - Body ground*2 Shield - Body ground Shield ground Always Below 1 V F73-2 (CDR+) - F69-7 (GND1)*2 R - BR RSE system sound signal RSE system playing A waveform synchronized with sounds is output F73-3 (CDR-) - F69-7 (GND1)*2 W - BR RSE system sound signal RSE system playing A waveform synchronized with sounds is output F73-4 (CDL+) - F69-7 (GND1)*2 B - BR RSE system sound signal RSE system playing A waveform synchronized with sounds is output F73-5 (CDL-) - F69-7 (GND1)*2 G - BR RSE system sound signal RSE system playing A waveform synchronized with sounds is output F73-8 (MUTE) - F69-7 (GND1)*2 LG - BR Mute signal Audio system playing Above 3.5 V Audio system changing modes Below 1 V F73-9 (TX+)*2 V AVC-LAN communication signal - - F73-10 (TX-)*2 BR AVC-LAN communication signal - - n3-3 (ACC2) - F69-7 (GND1)*3 Y - BR Power source (ACC) Ignition switch off Below 1 V Ignition switch ACC 11 to 14 V n3-4 (+B2) - F69-7 (GND1)*3 R - BR Power source (+B) Always 11 to 14 V n3-8 (GND2) - Body ground*3 B - Body ground Ground Always Below 1 V F113-1 (USV1) - Power source - - F113-2 (US1-) - Data signal - - F113-3 (US1+) - Data signal - - F113-4 (UGD1) - Ground - - F113-5 (USG1) - Shield ground - - n6-1 (USV4)*3 - Power source - - n6-2 (US4-)*3 - Data signal - - n6-3 (US4+)*3 - Data signal - - n6-4 (UGO4)*3 - Ground - - n6-5 (USG4)*3 - Shield ground - - n1-1 (LV1)*3 B LVDS communication signal - - RA-5 (ANT+) - F69-7 (GND1) - - BR Power source of antenna Ignition switch ACC
Radio switch on and FM or AM selected11 to 14 V - *1: for 8 Inch Display Type
*2: w/ Rear Seat Entertainment System
*3: w/ SDARS System
*4: w/o Stop and Start System
*5: w/ Stop and Start System
- Reference (Oscilloscope waveform):
- Waveform 1 (camera lens not covered, displaying an image)
Item Content Measurement terminal F72-12 (V+) - F69-7 (GND1) Measurement setting 200 mV/DIV., 50 μs/DIV. Condition Ignition switch ON, shift lever in R *a Waveform 1 (camera lens not covered, displaying an image) *b Synchronization Signal *c Video Waveform HINT:
- The video waveform changes according to the image sent by the rear television camera assembly.
- The video waveform is constantly output when the ignition switch is ACC.
- Waveform 2 (camera lens covered, blacking out the screen)
Item Content Measurement terminal F72-12 (V+) - F69-7 (GND1) Measurement setting 200 mV/DIV., 50 μs/DIV. Condition Ignition switch ON, shift lever in R *a Waveform 2 (camera lens covered, blacking out the screen) *b Synchronization Signal *c Video Waveform HINT:
- The video waveform changes according to the image sent by the rear television camera assembly.
- The video waveform is constantly output when the ignition switch is ACC.
- Waveform 1 (camera lens not covered, displaying an image)
- *1: for 8 Inch Display Type
- STEREO COMPONENT TUNER ASSEMBLY (w/ SDARS System)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

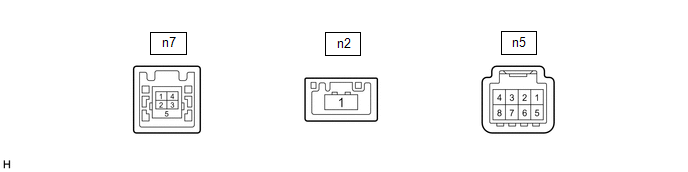

Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition n5-3 (ACC2) - n5-8 (GND2) Y - B Power source (ACC) Ignition switch off Below 1 V Ignition switch ACC 11 to 14 V n5-4 (+B2) - n5-8 (GND2) R - B Power source (+B) Always 11 to 14 V n5-8 (GND2) - Body ground B - Body ground Ground Always Below 1 V n7-1 (USV4) - Power source - - n7-2 (US4-) - Data signal - - n7-3 (US4+) - Data signal - - n7-4 (UGO4) - Ground - - n7-5 (USG4) - Shield ground - - n2-1 (LV1) B LVDS communication signal - - - TELEVISION DISPLAY ASSEMBLY (w/ Rear Seat Entertainment System)
Refer to TERMINALS OF ECU [11/2016 - ]
- COMBINATION METER ASSEMBLY (for 8 Inch Display Type)
Refer to TERMINALS OF ECU [11/2016 - ]
