Data Signal Circuit between Navigation Receiver Assembly and Stereo Jack Adapter [11/2015 - ]: Procedure

1. Disconnect the F119 navigation receiver assembly connector.
2. Disconnect the F120 No. 1 stereo jack adapter assembly connector.
3. Measure the resistance according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

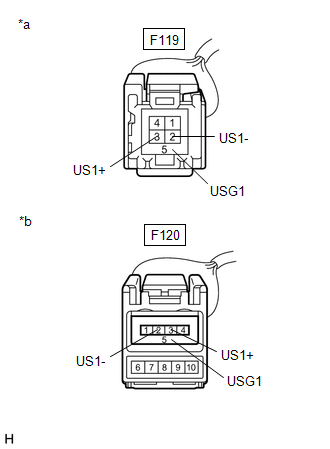

   *a	Front view of wire harness connector (to Navigation Receiver Assembly)
   *b	Front view of wire harness connector (to No. 1 Stereo Jack Adapter Assembly)

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   F120-2 (US1-) - F119-2 (US1-)	Always	Below 1 Ω
   F120-3 (US1+) - F119-3 (US1+)	Always	Below 1 Ω
   F120-5 (USG1) - F119-5 (USG1)	Always	Below 1 Ω
   F120-2 (US1-) - Body ground	Always	10 kΩ or higher
   F120-3 (US1+) - Body ground	Always	10 kΩ or higher
   F120-5 (USG1) - Body ground	Always	10 kΩ or higher

   Result

   Proceed to
   OK
   NG

Result:  1

OK

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE. Refer to  PROBLEM SYMPTOMS TABLE [11/2015 - 11/2016]  Refer to  PROBLEM SYMPTOMS TABLE [11/2016 - ]

Result:  2

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
