Mute Signal Circuit between Navigation Receiver Assembly and Stereo Component Amplifier [12/2013 - ]: Procedure
- INSPECT STEREO COMPONENT AMPLIFIER ASSEMBLY
- Measure the voltage according to the value(s) in the table below.

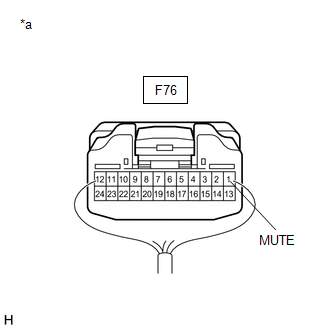

*a Component with harness connected
(Stereo Component Amplifier Assembly)Standard Voltage
Tester Connection Condition Specified Condition F76-1 (MUTE) - Body ground Ignition switch ACC
Audio system playing
→ Audio system changing modes2.0 V or higher
→ Below 1 VResult
Proceed to OK NG
Result: 1
OK
PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE. Refer to PROBLEM SYMPTOMS TABLE [12/2013 - 11/2015] Refer to PROBLEM SYMPTOMS TABLE [11/2015 - 11/2016] Refer to PROBLEM SYMPTOMS TABLE [11/2016 - ]
Result: 2
NG
See step 2
- Measure the voltage according to the value(s) in the table below.
- CHECK HARNESS AND CONNECTOR (NAVIGATION RECEIVER ASSEMBLY - STEREO COMPONENT AMPLIFIER ASSEMBLY)
- Disconnect the F116 navigation receiver assembly connector.
- Disconnect the F76 stereo component amplifier assembly connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition F116-16 (MUT1) - F76-1 (MUTE) Always Below 1 Ω F116-16 (MUT1) - Body ground Always 10 kΩ or higher Result
Proceed to OK NG
Result: 2
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result: 1
OK
See step 3
- INSPECT STEREO COMPONENT AMPLIFIER ASSEMBLY
- Disconnect the F116 navigation receiver assembly connector.
- Measure the voltage according to the value(s) in the table below.

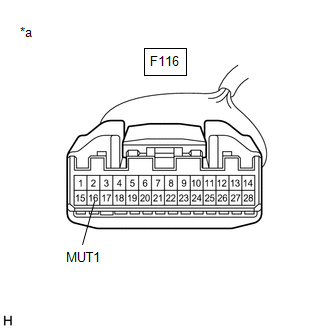

*a Front view of wire harness connector
(to Navigation Receiver Assembly)Standard Voltage
Tester Connection Condition Specified Condition F116-16 (MUT1) - Body ground Ignition switch ACC
Audio system playing2.0 V or higher Result
Proceed to OK NG
Result: 1
OK
REPLACE NAVIGATION RECEIVER ASSEMBLY. Refer to REMOVAL [12/2013 - ]
Result: 2
NG
REPLACE STEREO COMPONENT AMPLIFIER ASSEMBLY. Refer to REMOVAL [12/2013 - 11/2016] Refer to REMOVAL [11/2016 - ]
