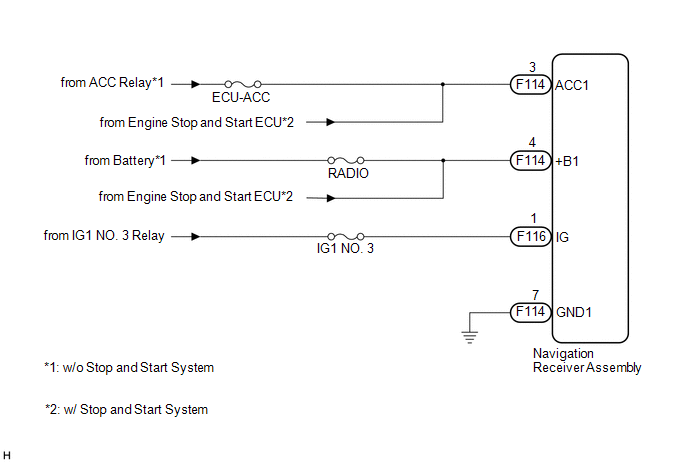

Navigation Receiver Assembly Power Source Circuit [11/2016 - ]: Wiring Diagram

GTY707263

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
