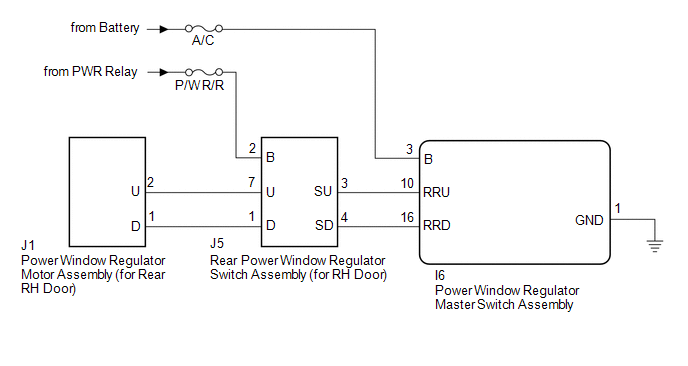

Rear Power Window RH does not Operate with Rear Power Window Switch RH [12/2013 - ]: Wiring Diagram

GTY426266Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
